TPS76801QPWPG4 - Texas Instruments
1-A, 10-V, low-dropout voltage regulator with power good & enable 20-HTSSOP -40 to 125
Technical Details
| Accuracy | 2% |
| Case/Package | HTSSOP EP |
| Height | 0m |
| Input Bias Current | 85µA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 10V |
| Max Operating Temperature | 125°C |
| Max Output Current | 1A |
| Max Output Voltage | 5.5V |
| Max Power Dissipation | 4.1W |
| Min Current Limit | 1.2A |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.2V |
| Number of Outputs | 1 |
| Number of Pins | 20 |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Polarity | Positive |
| Power Dissipation | 4.1W |
| Power Rating | 4.1W |
| Quiescent Current | 80µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 1.1834V |
| RoHS | Compliant |
| Thickness | 1mm |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

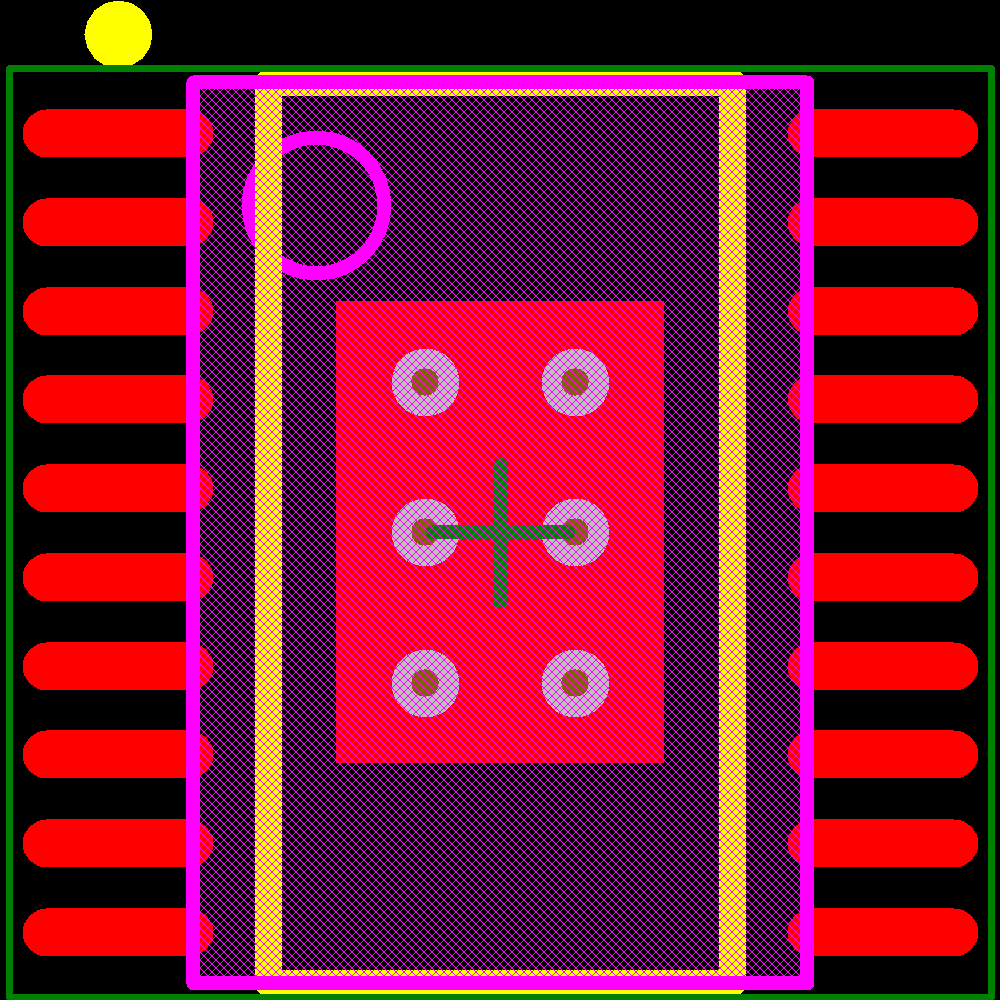

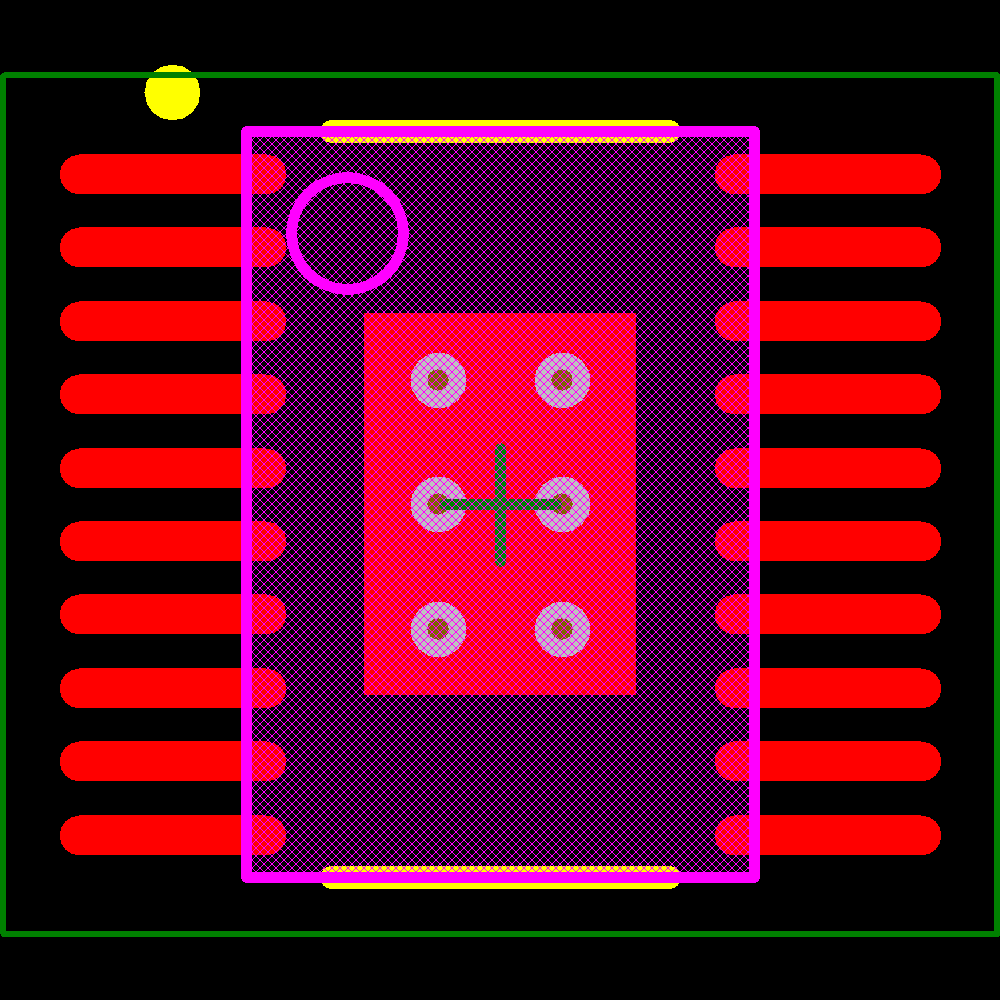

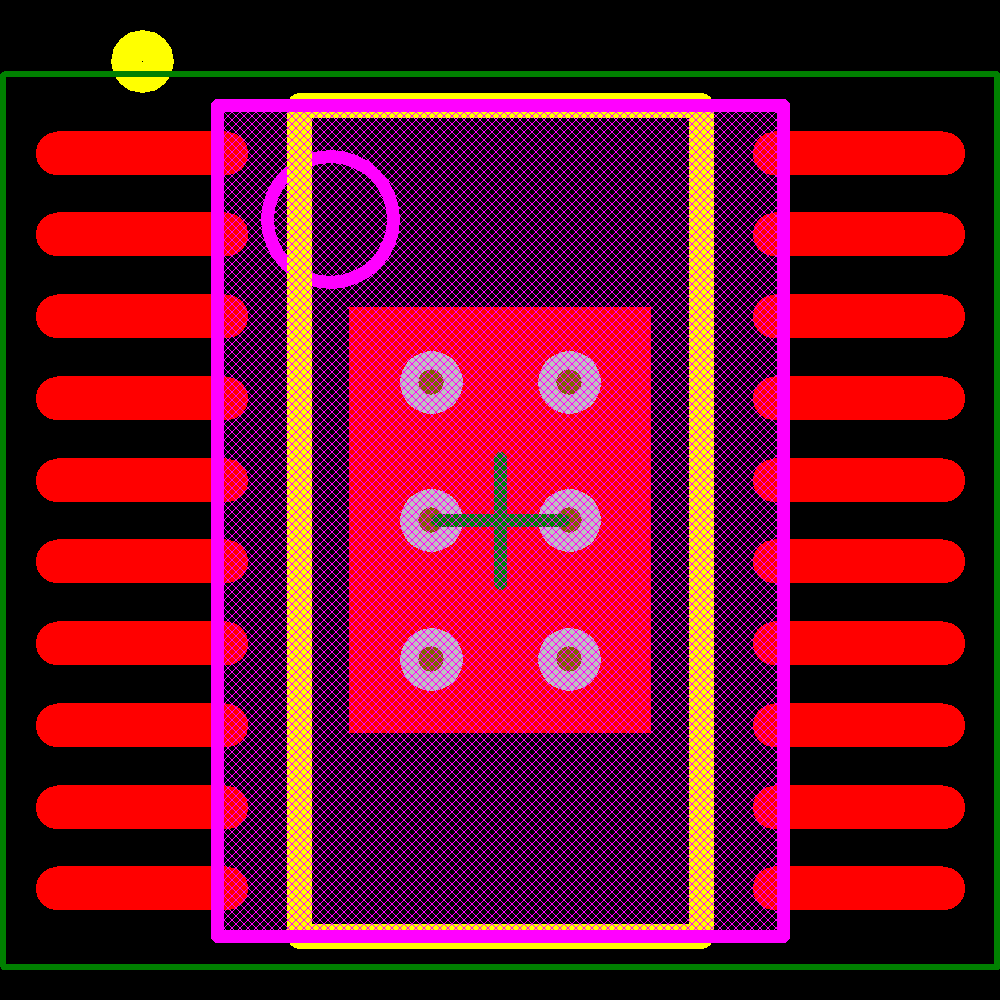

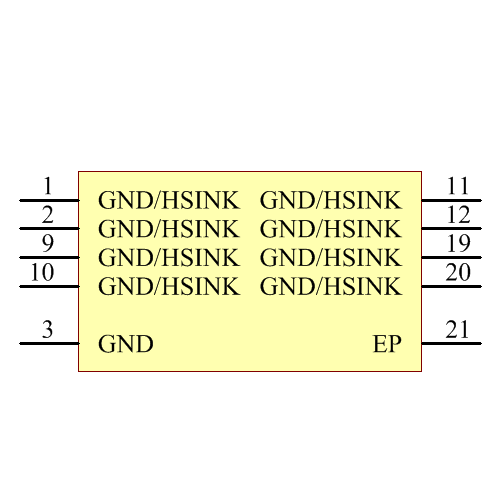

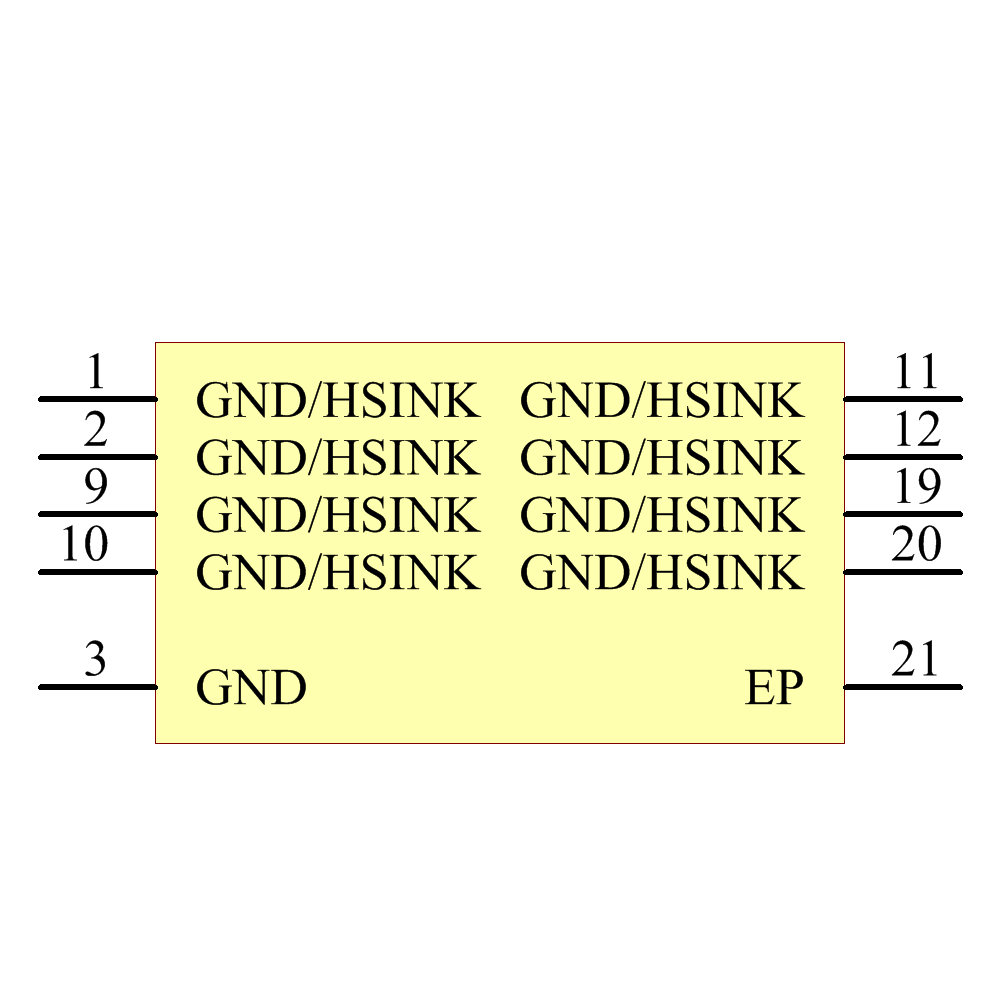

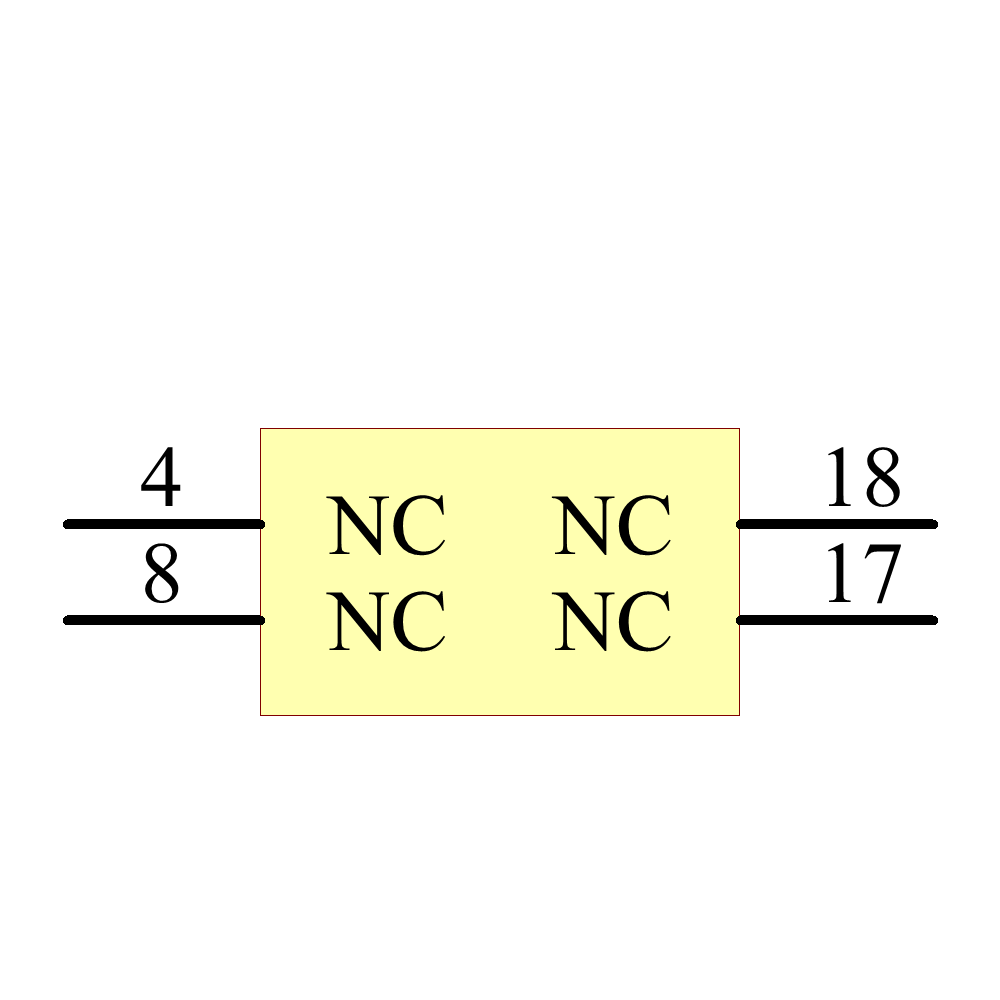

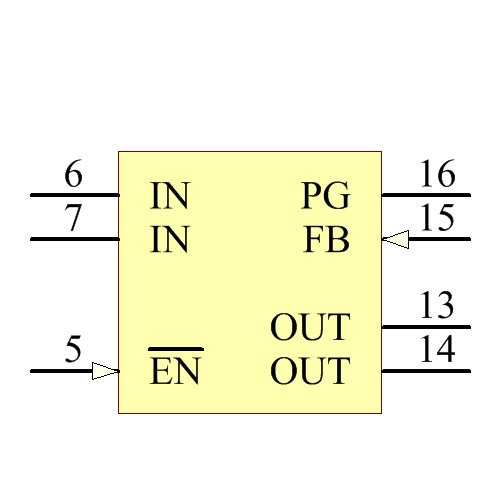

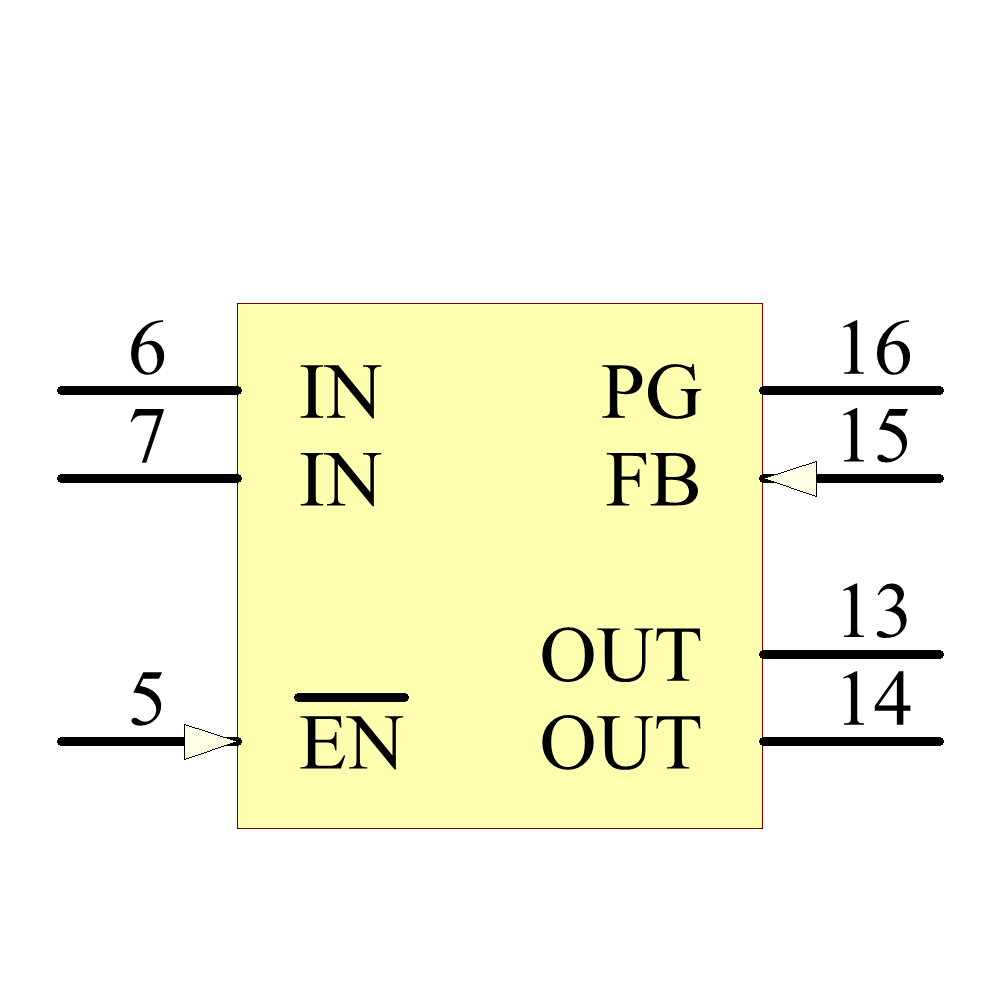

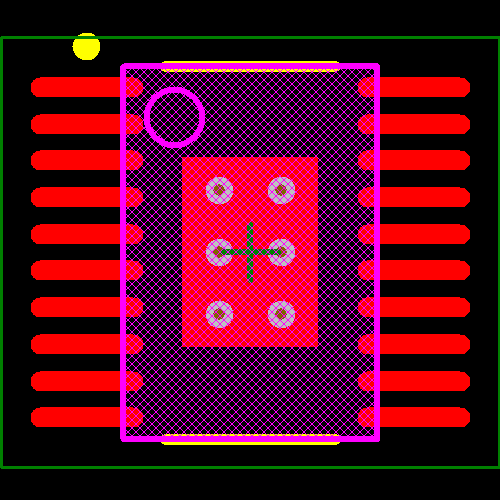

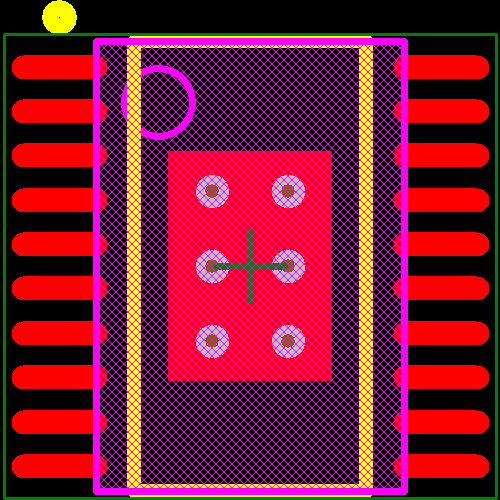

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 1
|
$ | 5.81 | 4.00 | 3.72 | 2.08 | 2.08 | 2.08 | ||
