TPS76901DBVRG4 - Texas Instruments
100-mA, 10-V, low-IQ, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125
Technical Details
| Accuracy | 3% |
| Case/Package | SOT-23 |
| Height | 1.45mm |
| Input Bias Current | 17µA |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 10V |
| Max Operating Temperature | 125°C |
| Max Output Current | 100mA |
| Max Output Voltage | 5.5V |
| Max Power Dissipation | 555mW |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.2V |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Regulators | 1 |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Output Voltage Accuracy | 3% |
| Packaging | Tape & Reel |
| Polarity | Positive |
| Power Dissipation | 555mW |
| Power Rating | 555mW |
| Quiescent Current | 20µA |
| Radiation Hardening | No |
| Reference Voltage | 1.224V |
| RoHS | Compliant |
| Thickness | 1.2mm |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

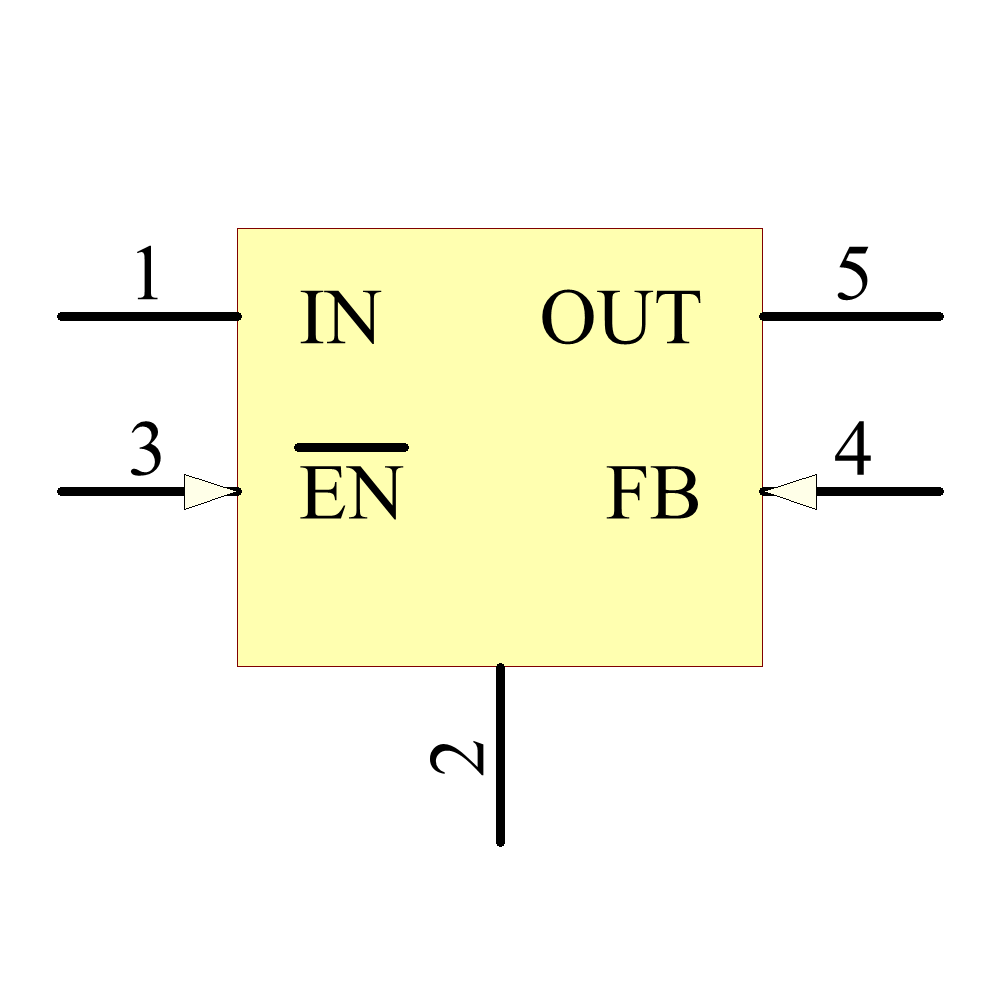

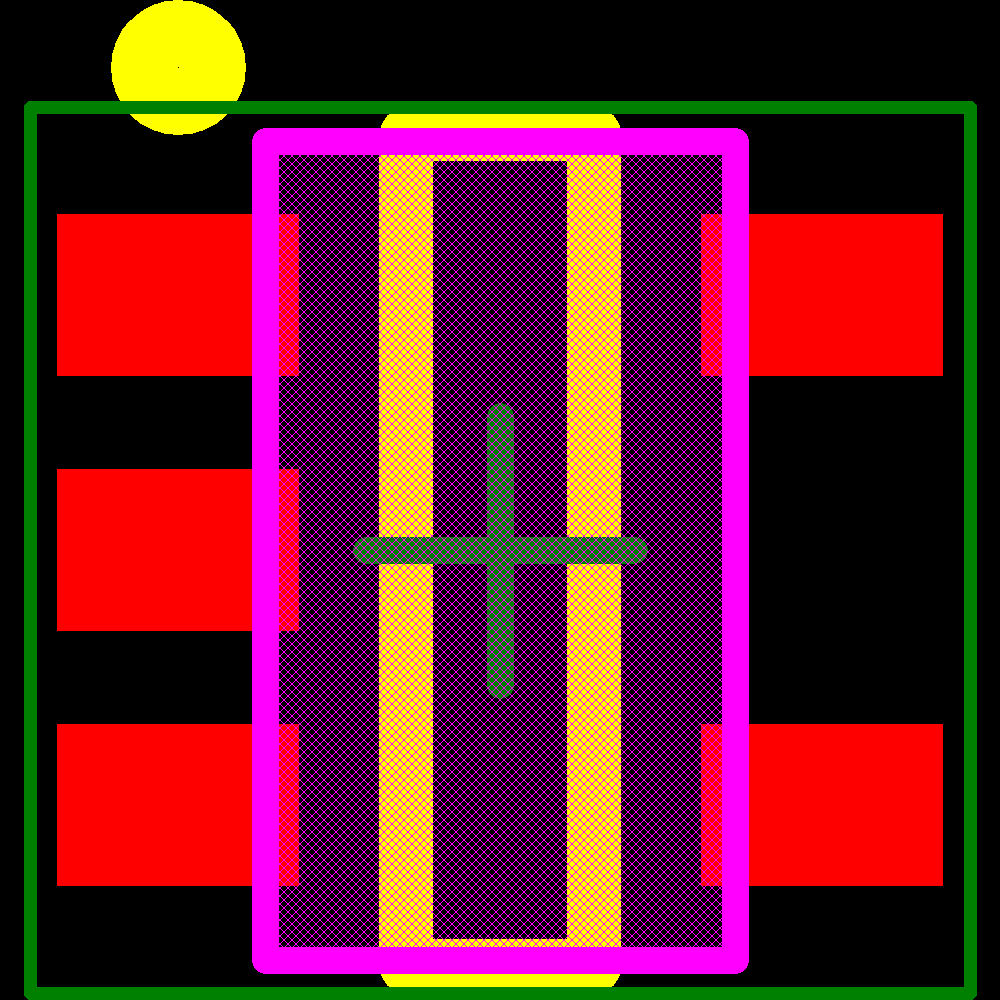

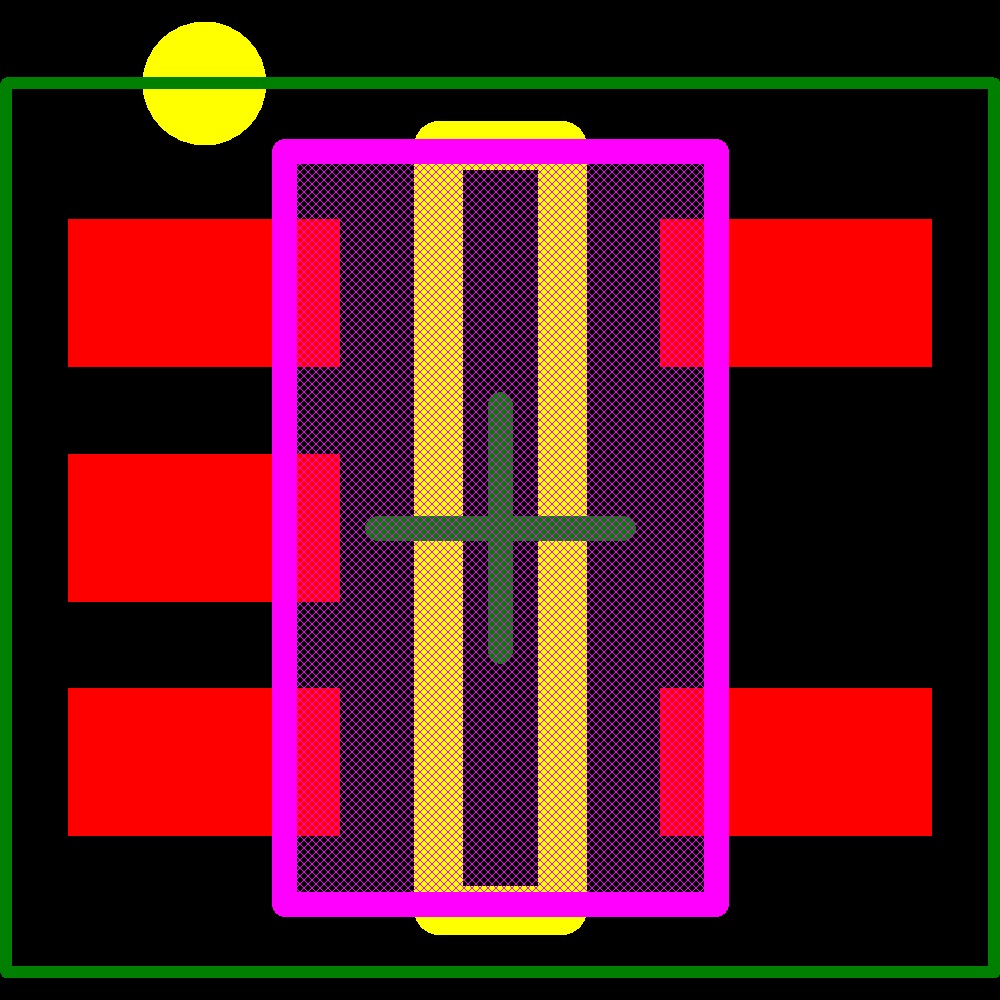

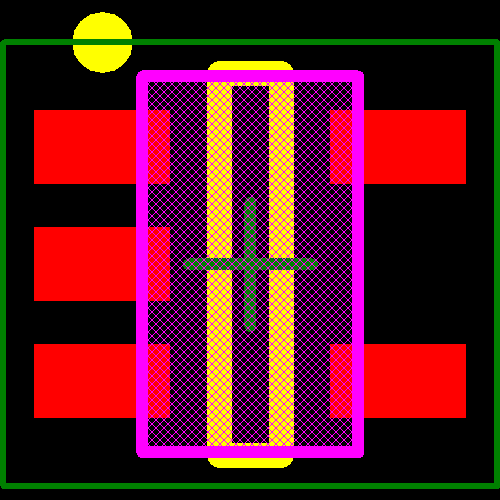

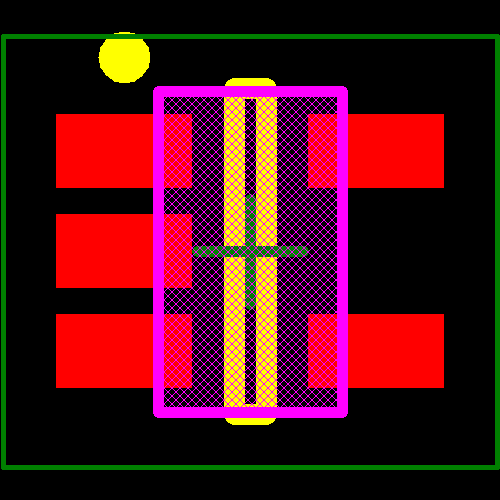

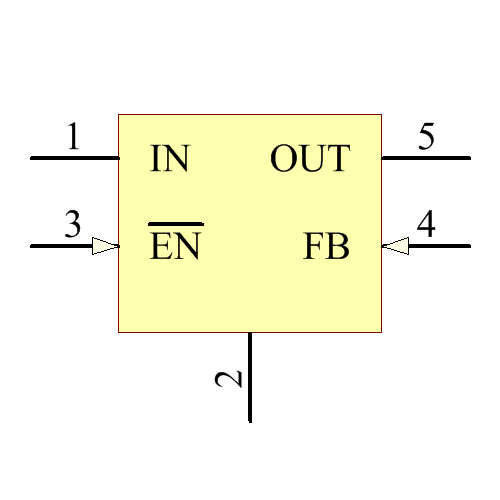

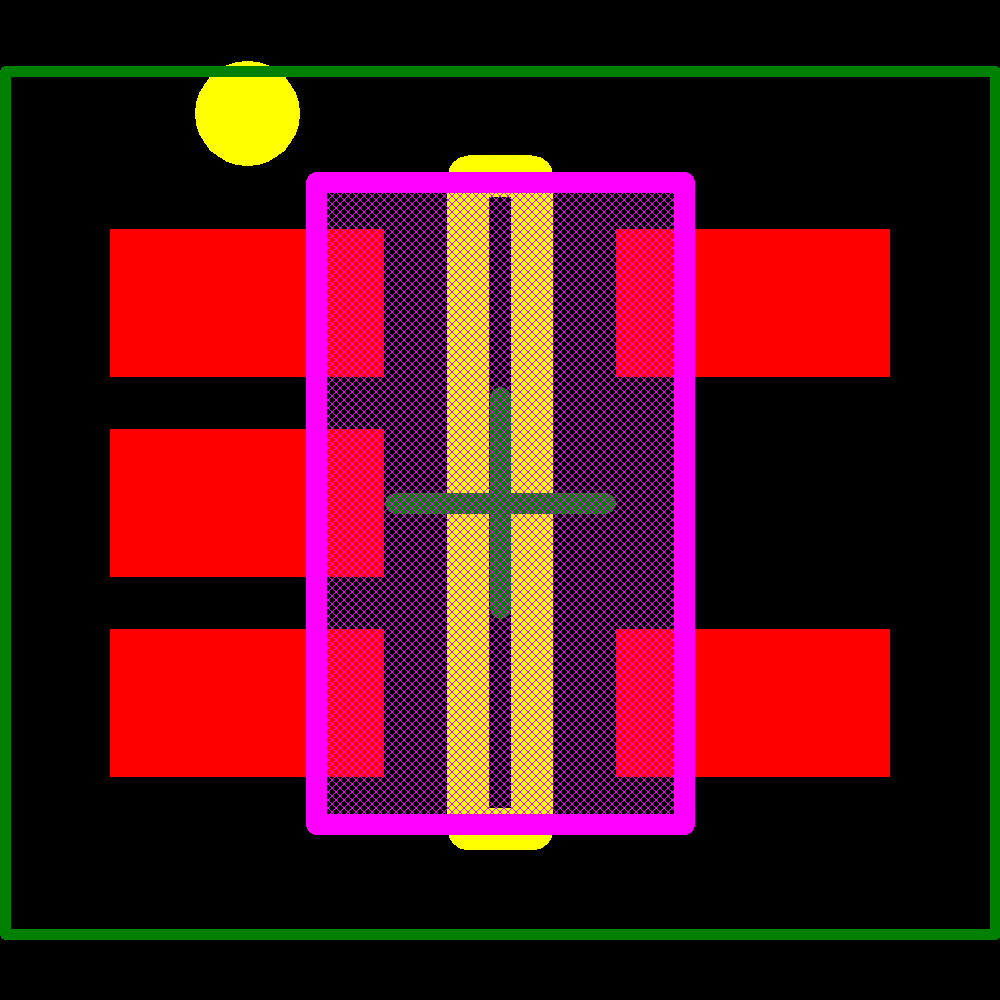

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Microchip | Production | ||
| Microchip | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 2670
|
$ | 3.00 | 1.96 | 1.80 | 1.55 | 1.07 | 0.972 | ||
| Arrow Electronics |
US: 0
|
$ | 0.9883 | |||||||
| Texas Instruments |
US: 8450
|
$ | 1.769 | 1.769 | 1.769 | 1.36 | 0.716 | 0.716 | ||
