TPS76925DBVRG4 - Texas Instruments
100-mA, 10-V, low-IQ, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125
Technical Details
| Accuracy | 3% |
| Case/Package | SOT-23 |
| Dropout Voltage | 71mV |
| Height | 1.45mm |
| Input Bias Current | 17µA |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 10V |
| Max Operating Temperature | 125°C |
| Max Output Current | 100mA |
| Max Output Voltage | 2.5V |
| Max Power Dissipation | 555mW |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Regulators | 1 |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Output Voltage Accuracy | 3% |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 555mW |
| Quiescent Current | 20µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 1.2mm |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

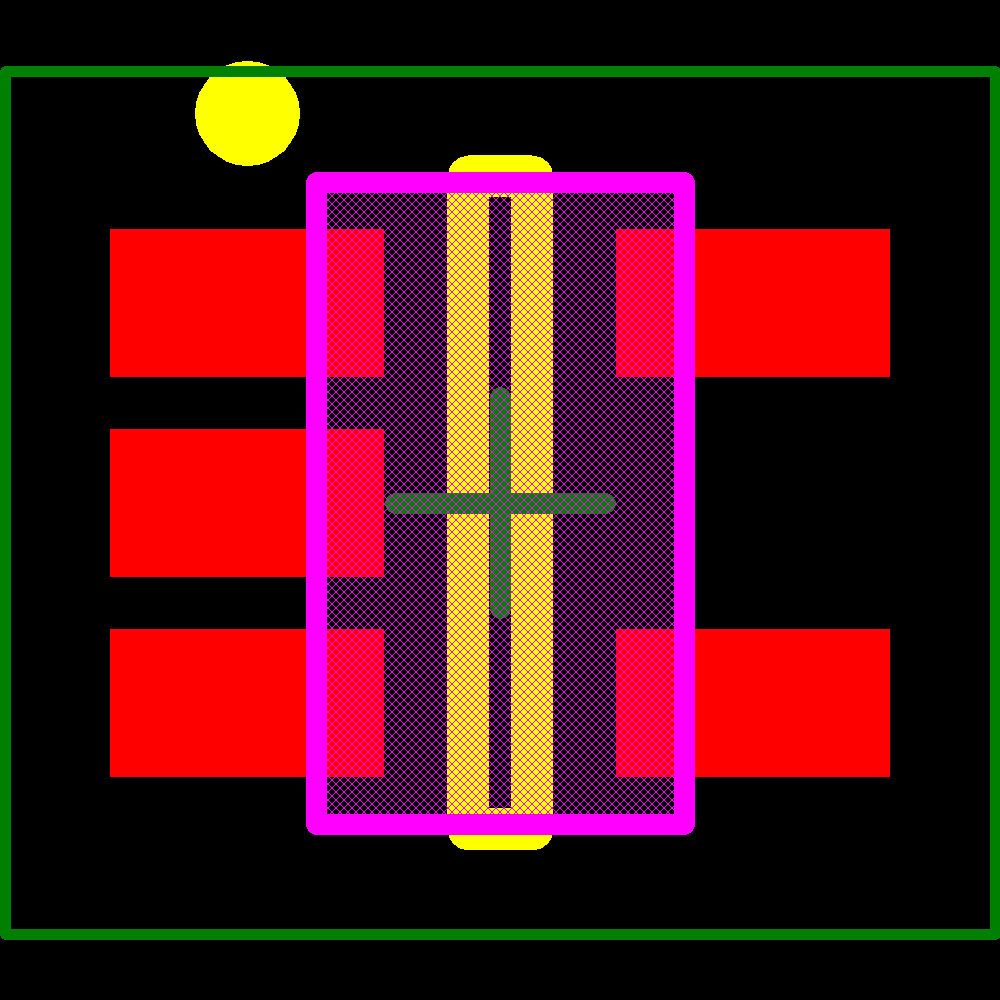

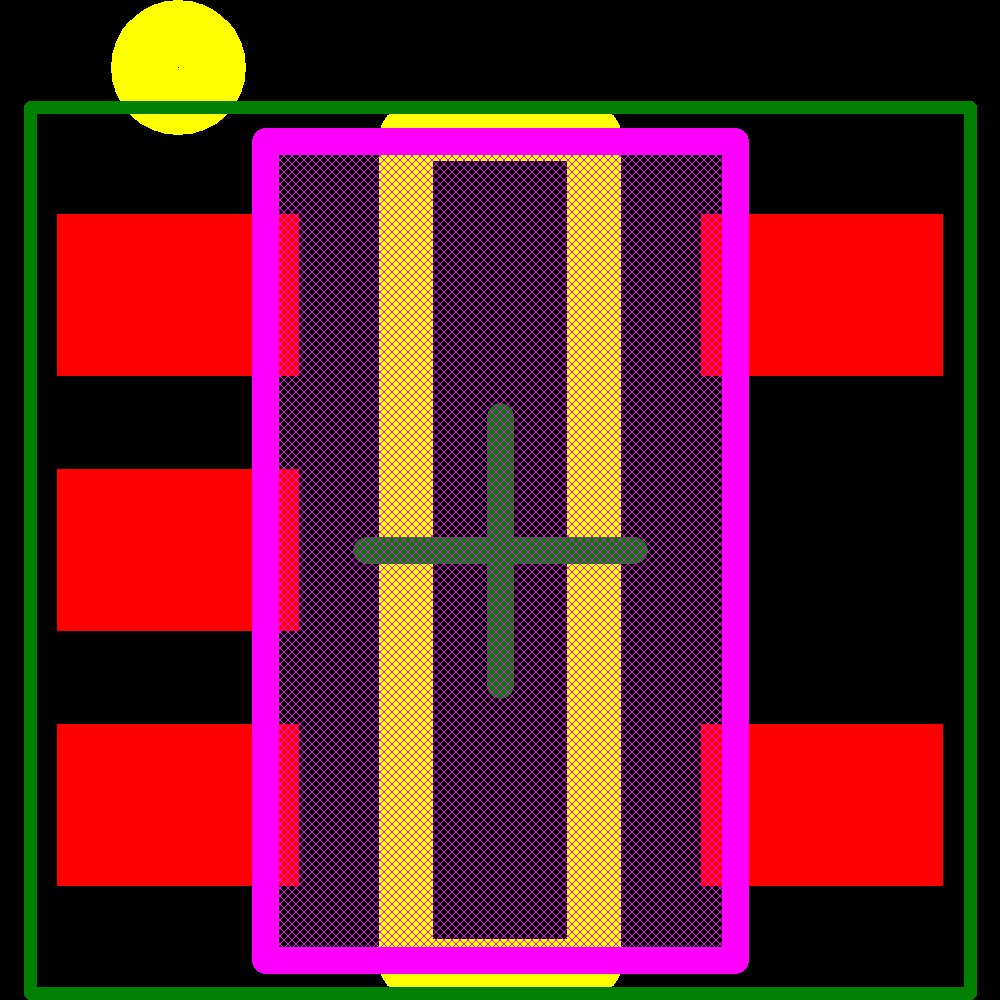

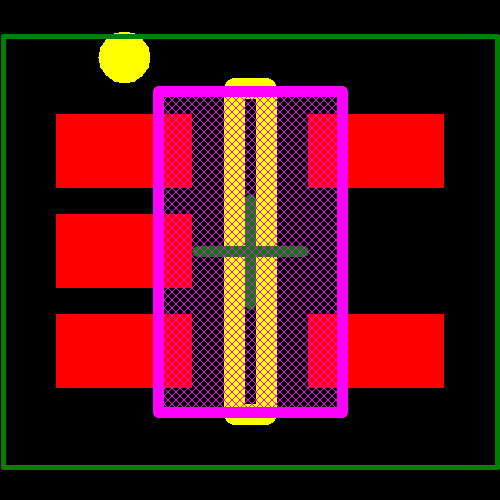

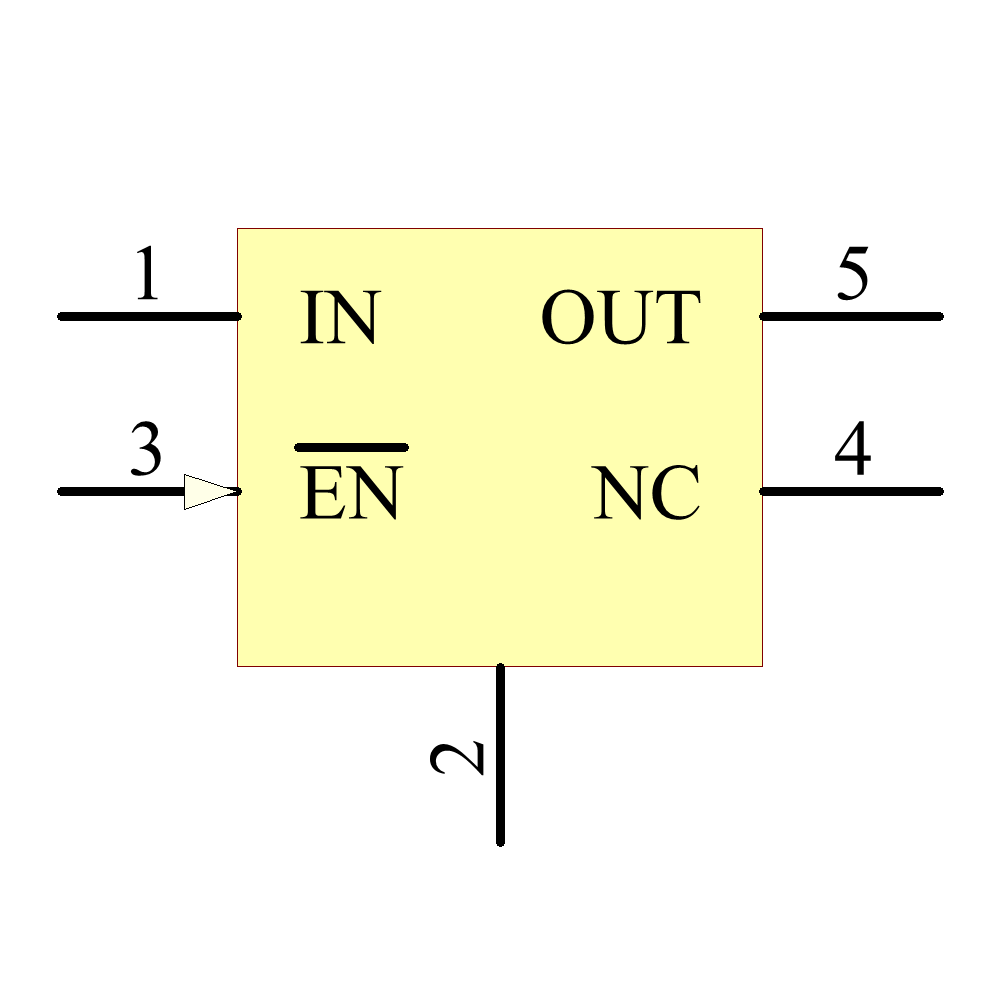

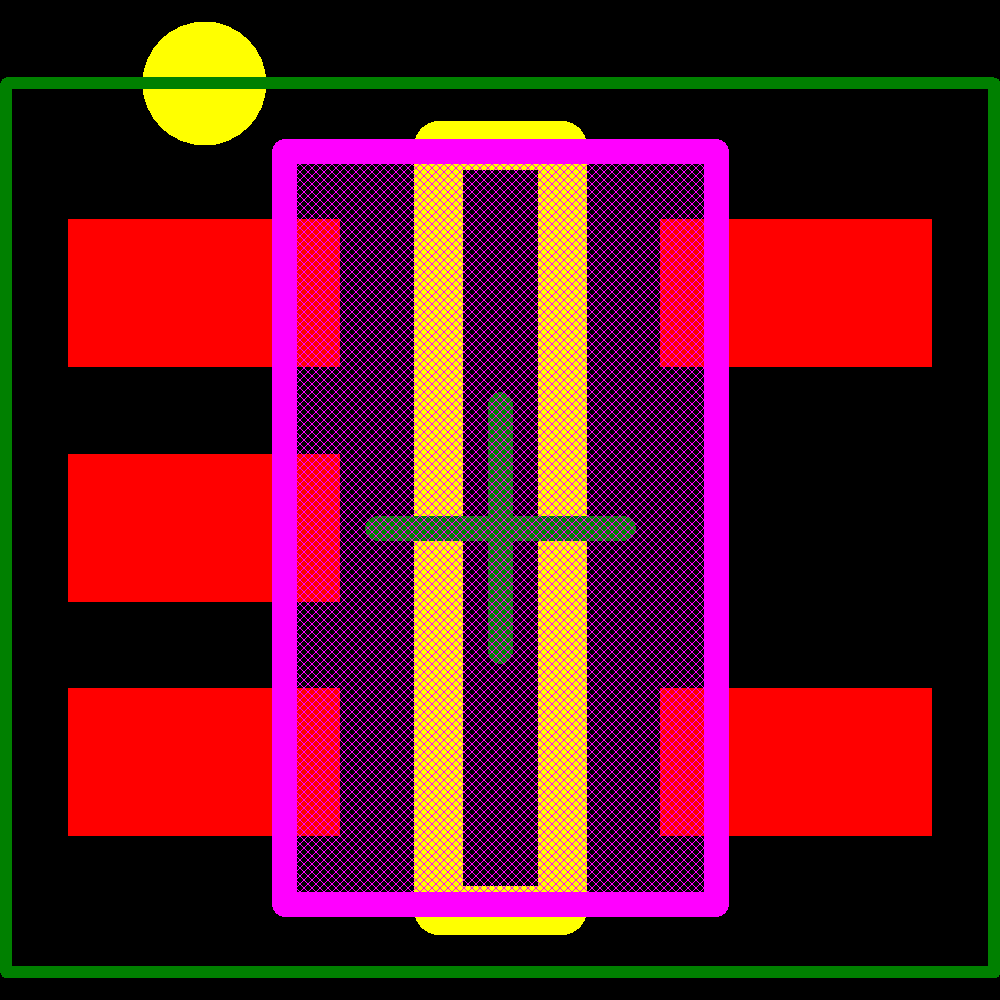

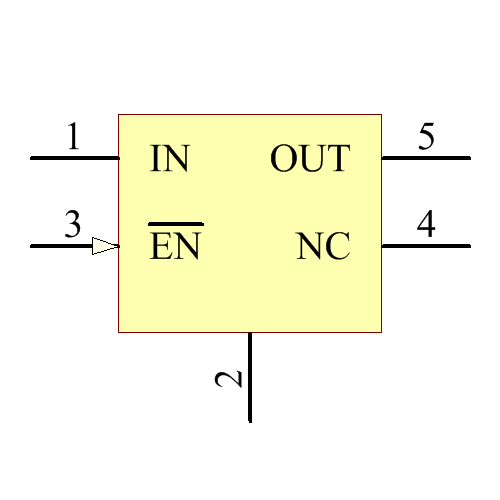

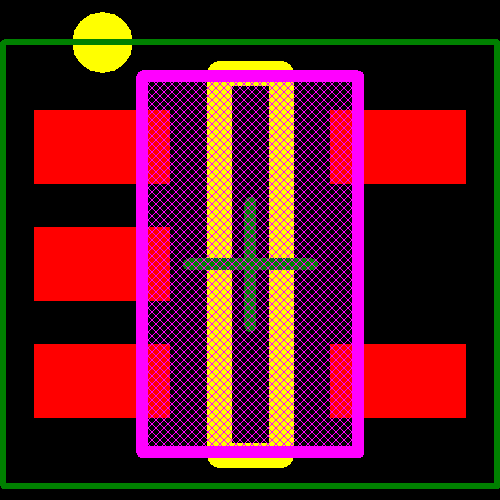

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Production | ||
| STMicroelectronics | Obsolete |
