Technical Details
| Accuracy | 3% |
| Case/Package | SOT-23 |
| Height | 1.45mm |
| Input Bias Current | 17µA |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Input Voltage | 10V |
| Max Operating Temperature | 125°C |
| Max Output Current | 50mA |
| Max Output Voltage | 5.5V |
| Max Power Dissipation | 555mW |
| Max Supply Voltage | 10V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.2V |
| Min Supply Voltage | 2.7V |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Regulators | 1 |
| Output Current | 50mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Output Voltage Accuracy | 3% |
| Packaging | Cut Tape |
| Polarity | Positive |
| Power Dissipation | 555mW |
| Power Rating | 555mW |
| Quiescent Current | 20µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 1.224V |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Termination | SMD/SMT |
| Thickness | 1.2mm |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

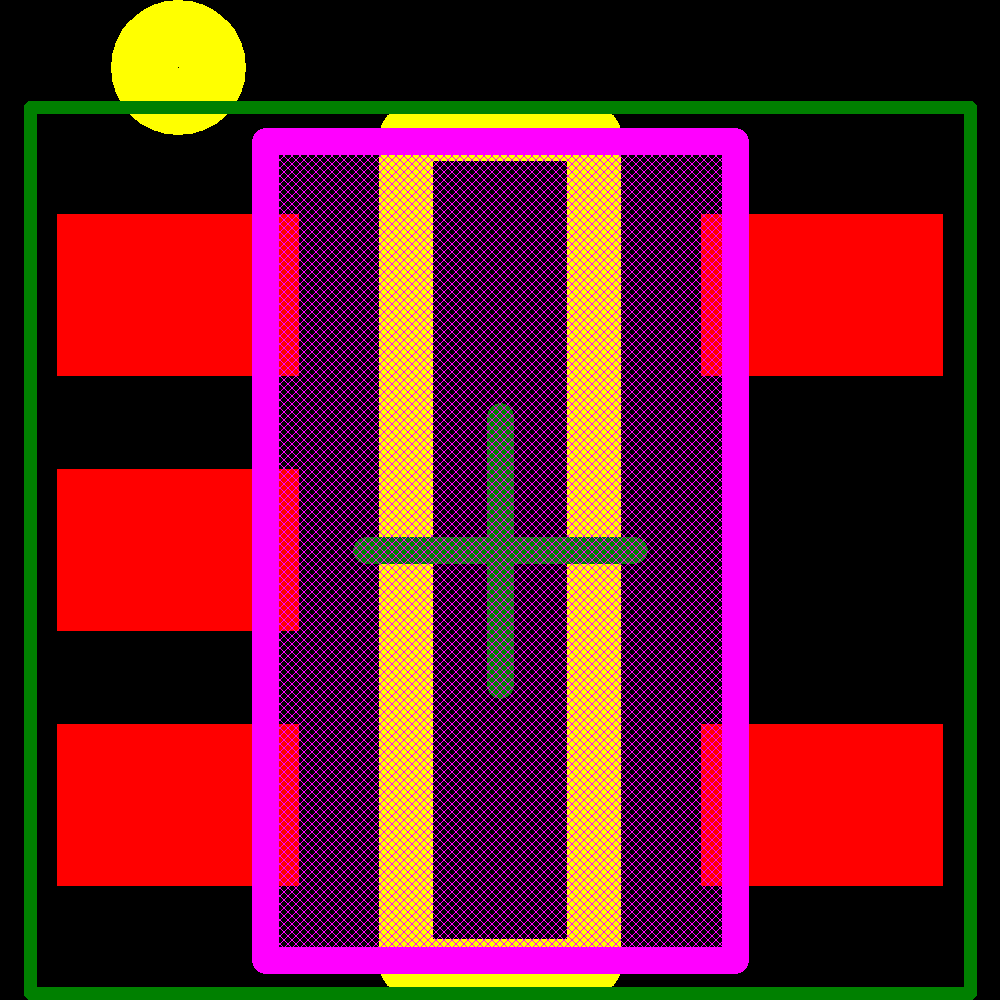

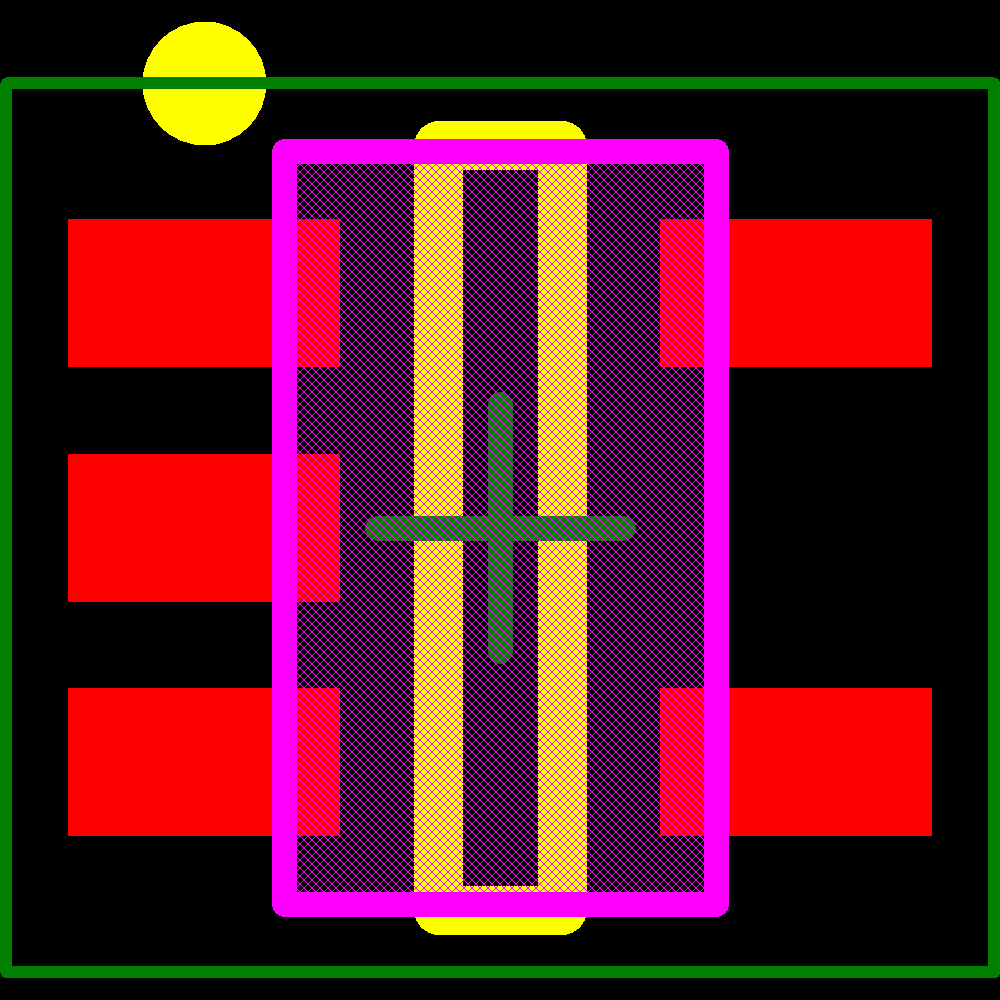

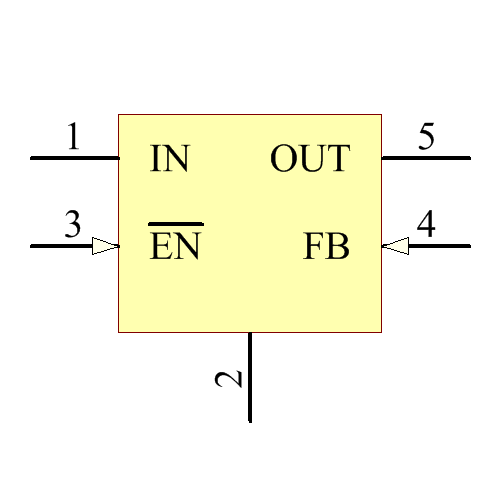

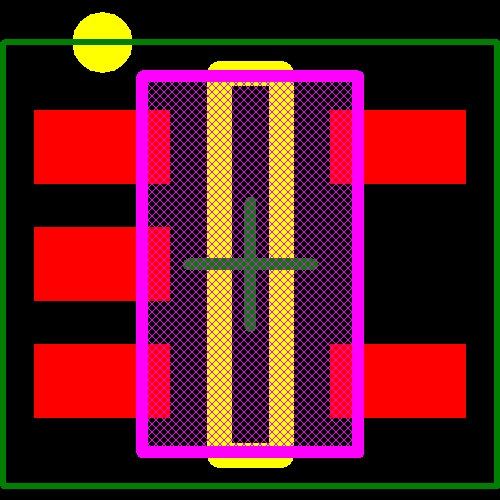

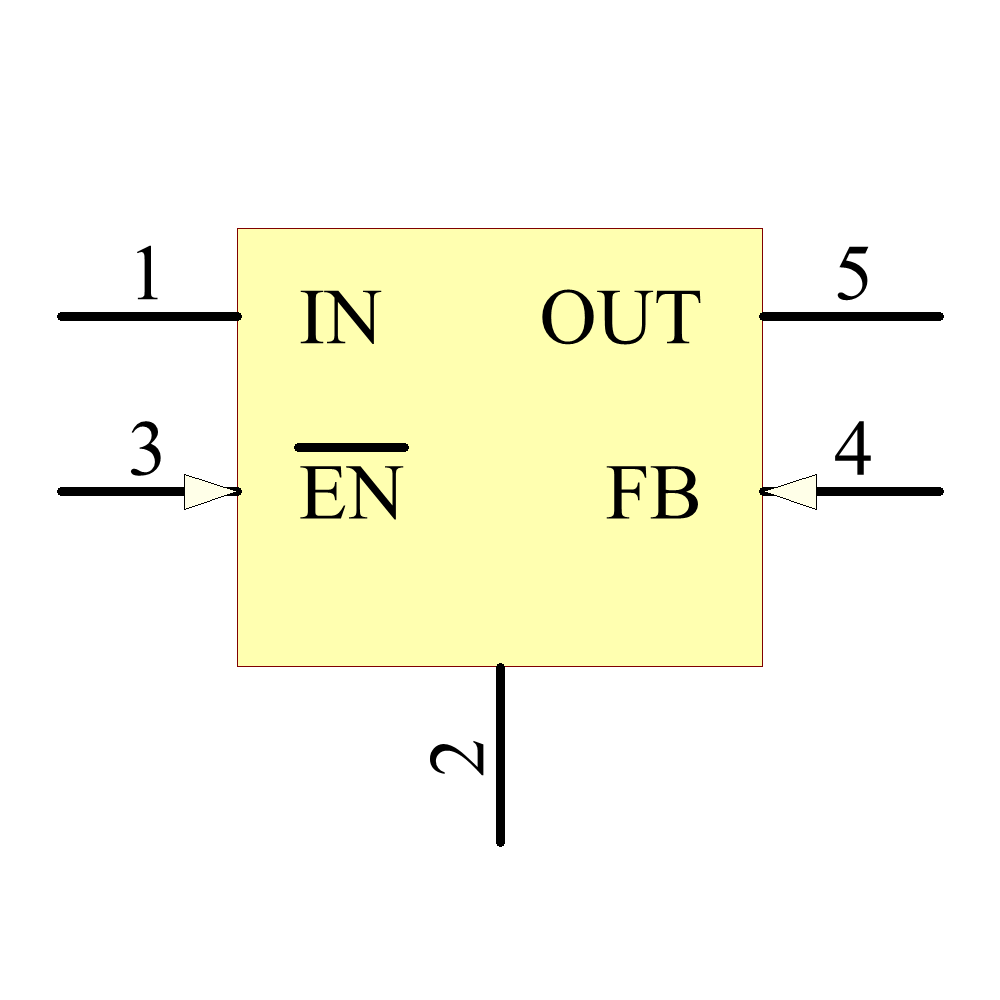

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| Microchip | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 1387
|
$ | 1.9477 | 1.4263 | 1.9477 | 1.1569 | 1.1569 | 1.1569 | ||
| DigiKey |
DE: 1250
|
$ | 1.0896 | 1.0061 | ||||||
| Mouser |
US: 1645
|
$ | 1.84 | 1.36 | 1.23 | 1.10 | 0.851 | 0.756 | ||
