TPS7H1101HKR/EM - Texas Instruments
Non-Production Engineering Evaluation Sample, LDO Regulator, Rad Hard, Pos 0.8V to 6.8V 3A 16-Pin CFP T/R
Technical Details
| Accuracy | 2% |
| Contact Plating | Gold |
| Dropout Voltage | 210mV |
| Height | 2.34mm |
| Lead Free | Contains Lead |
| Length | 11mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 7V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 3A |
| Max Supply Voltage | 7V |
| Min Input Voltage | 1.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 7mA |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 6.8V |
| Polarity | Positive |
| Quiescent Current | 12mA |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000 |
| Thickness | 2mm |
| Width | 9.6mm |
Compliance
RoHS : Unconfirmed

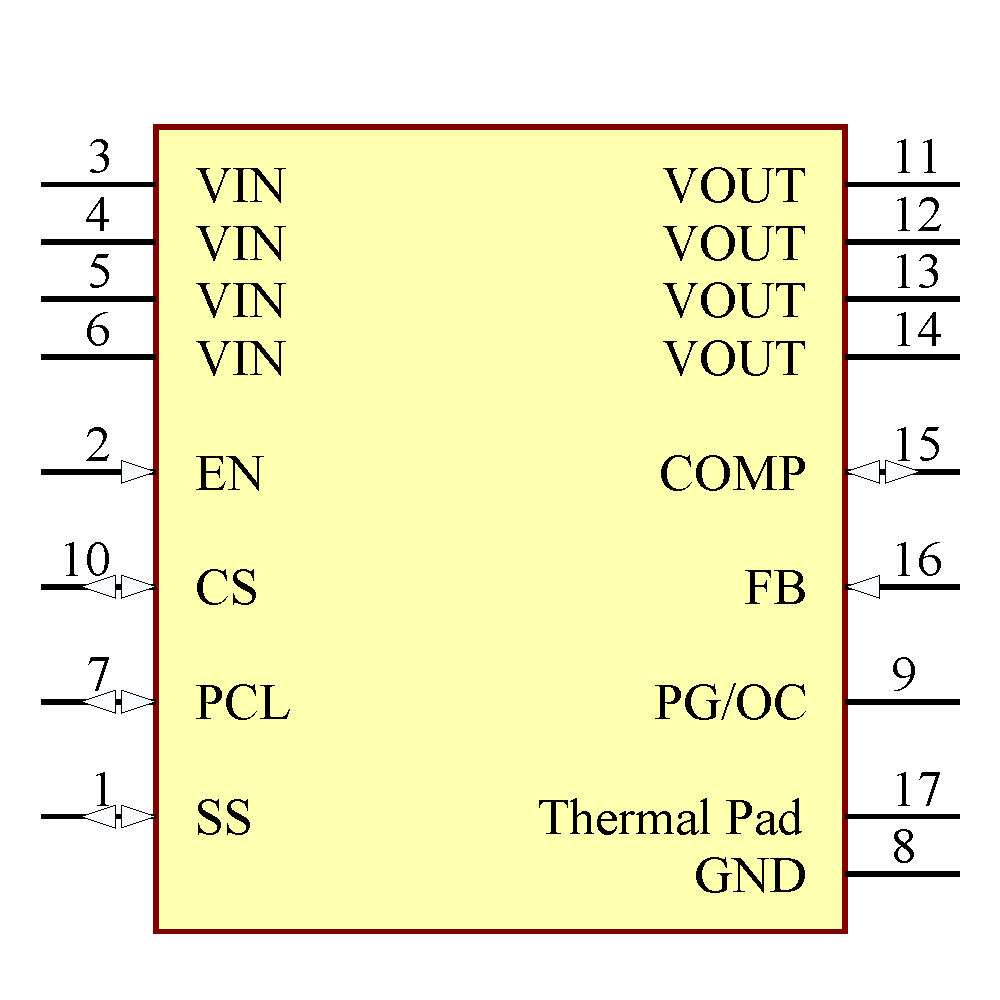

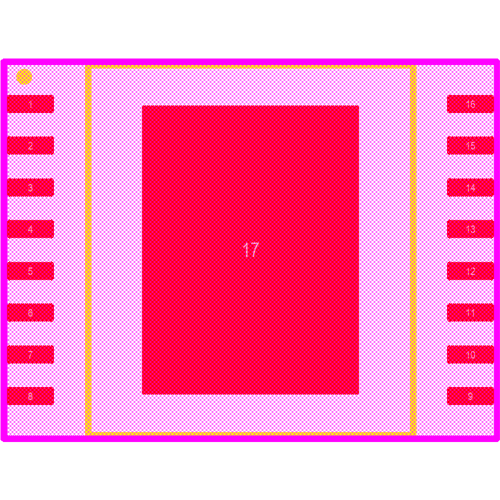

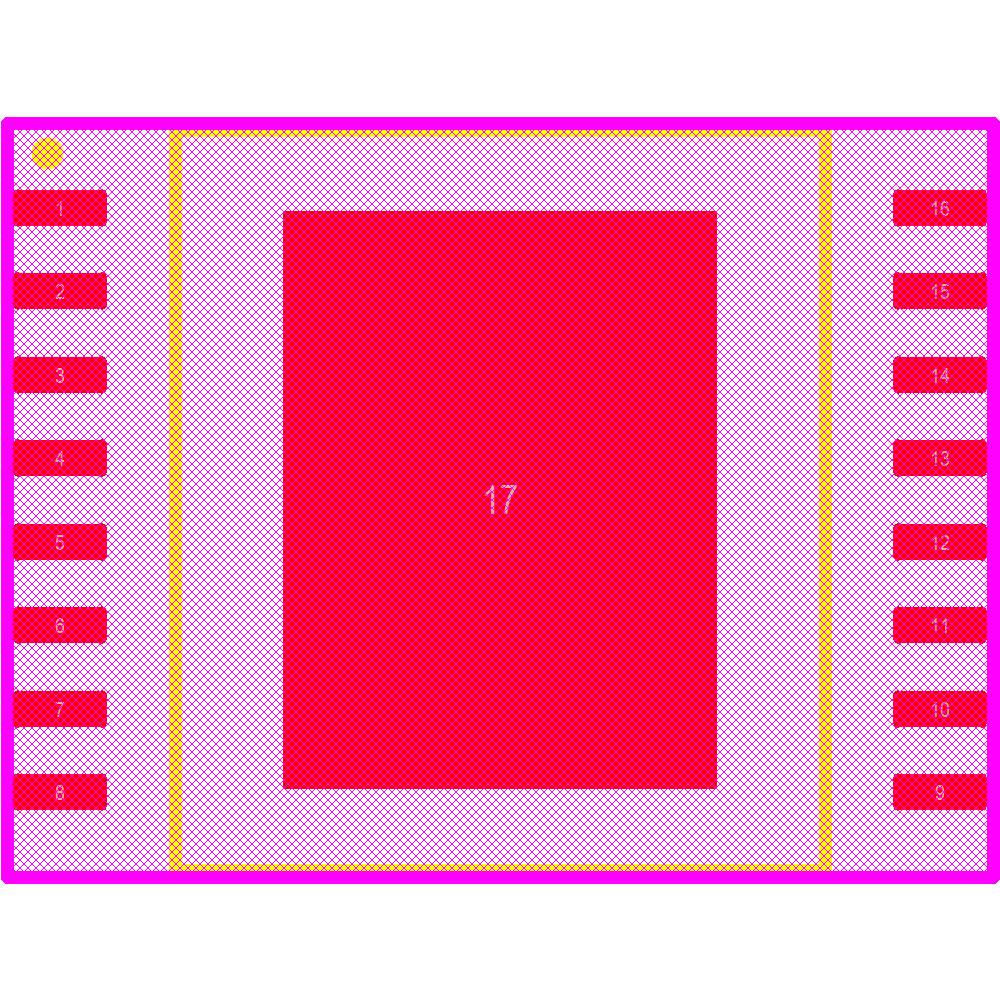

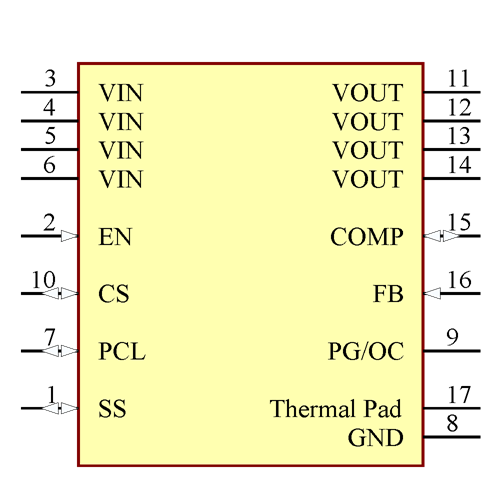

Images
Texas Instruments
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Texas Instruments |
US: 8297
|
$ | 712.041 | 673.896 | 673.896 | 635.751 | 635.751 | 635.751 | ||
