TPS92001DGK - Texas Instruments
General-purpose PWM controller with 10V Turn-on Threshold for LED Lighting 8-VSSOP -40 to 105
Technical Details
| Case/Package | VSSOP |
| Duty Cycle | 70% |
| Fall Time | 18ns |
| Frequency | 110kHz |
| Height | 1.07mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 105°C |
| Max Supply Current | 900µA |
| Max Supply Voltage | 21V |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Output Current | 800mA |
| Output Voltage | 5V |
| Power Dissipation | 552mW |
| Quiescent Current | 600µA |
| Radiation Hardening | No |
| Rise Time | 35ns |
| RoHS | Compliant |
| Switching Frequency | 110kHz |
| Thickness | 970µm |
| Topology | Boost, Buck, Flyback |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

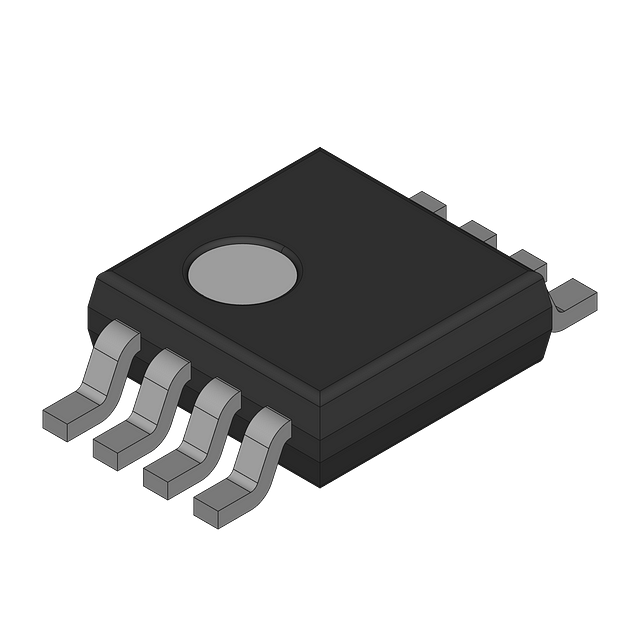

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Microchip | Production | ||
| Renesas | Obsolete | ||
| Analog Devices | Unknown | ||
| Diodes Inc. | Obsolete | ||
| Analog Devices | Unknown | ||
| Microchip | Production | ||
| Diodes Inc. | Obsolete |
