TPS92510DGQR - Texas Instruments
100kHz~2.5MHz PWM Step-down 1 DC-DCVoltage Stabilizer 1.5A 3.5V~60V MSOP-10-EP LED Drivers ROHS
Technical Details
| Case/Package | HTSSOP EP |
| Frequency | 2.5MHz |
| Height | 1.1mm |
| High Level Output Current | 100µA |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Low Level Output Current | 100µA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 60V |
| Max Operating Temperature | 125°C |
| Max Output Current | 1.5A |
| Max Supply Voltage | 60V |
| Min Input Voltage | 3.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3.5V |
| Number of Outputs | 1 |
| Number of Pins | 10 |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 300µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Switching Frequency | 581kHz |
| Thickness | 1.02mm |
| Topology | Buck |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

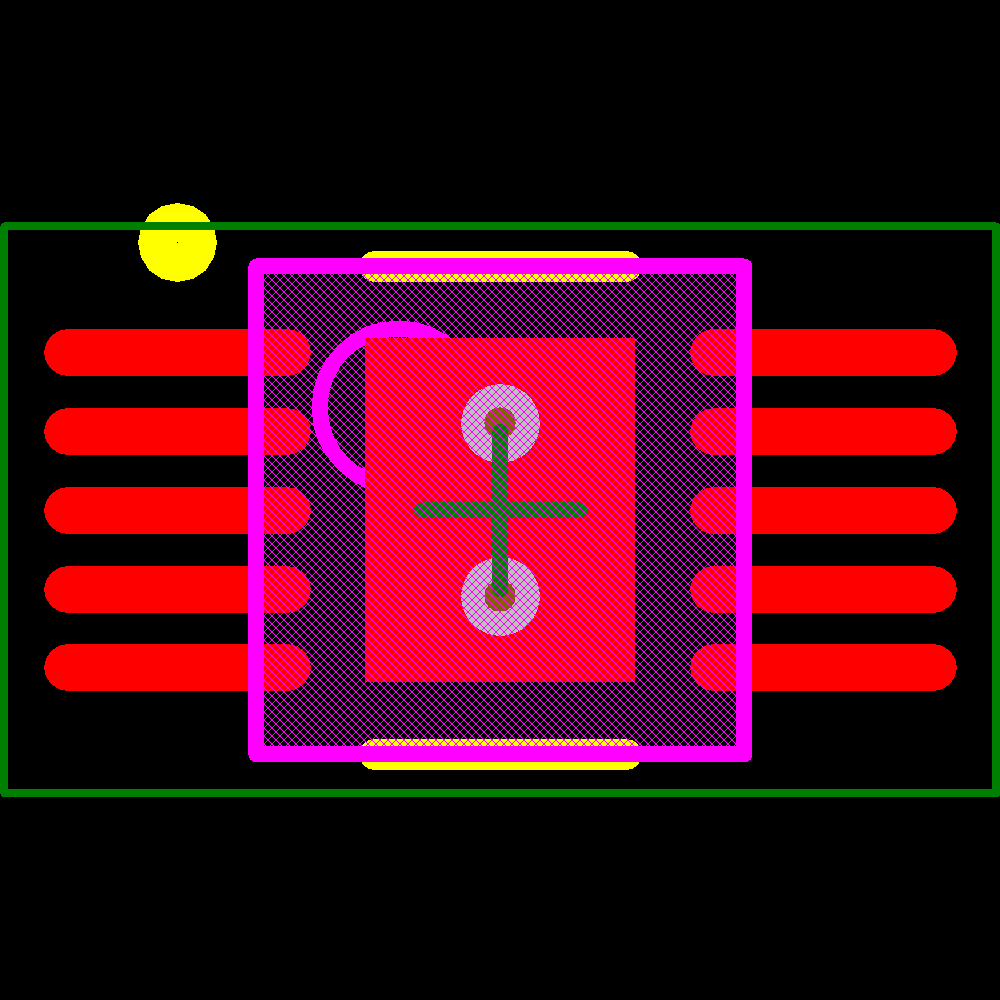

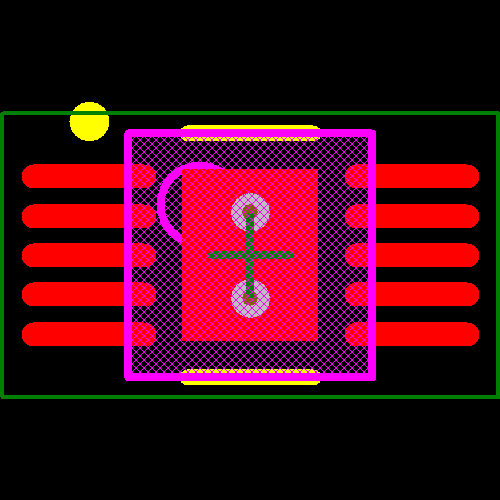

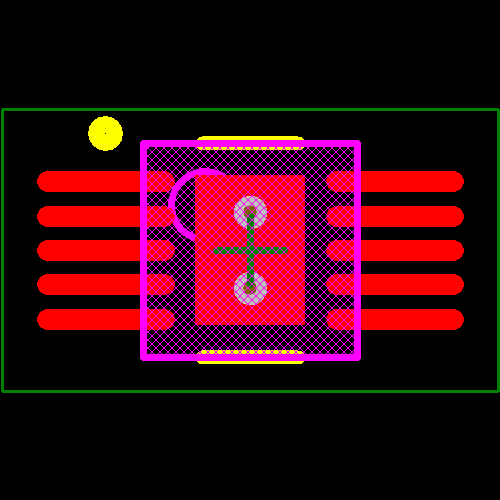

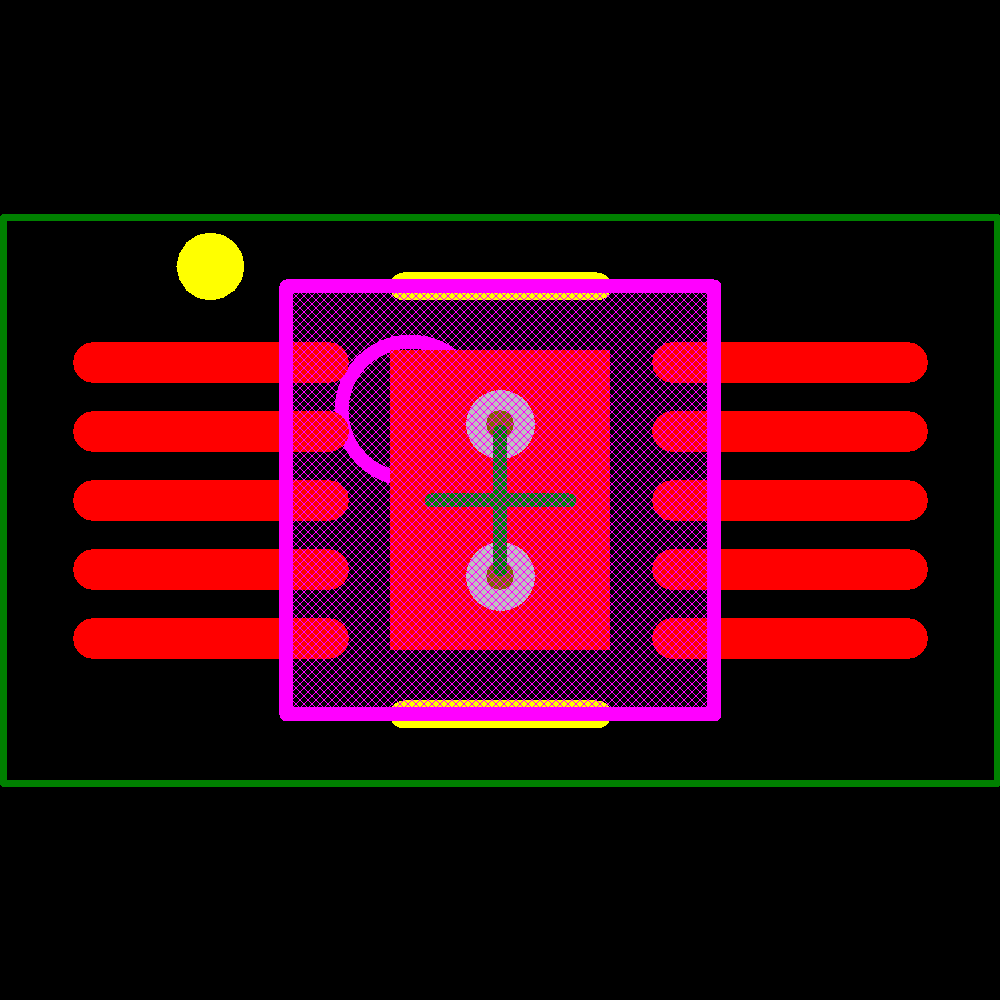

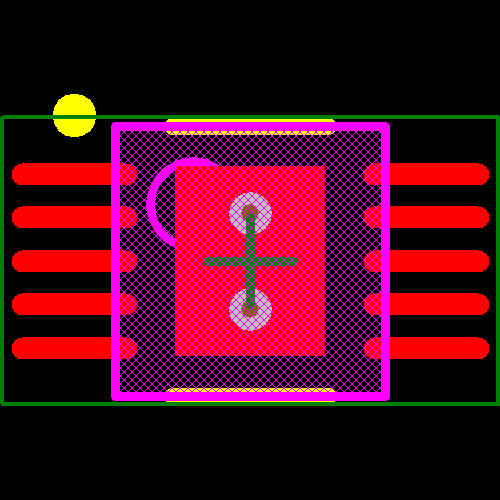

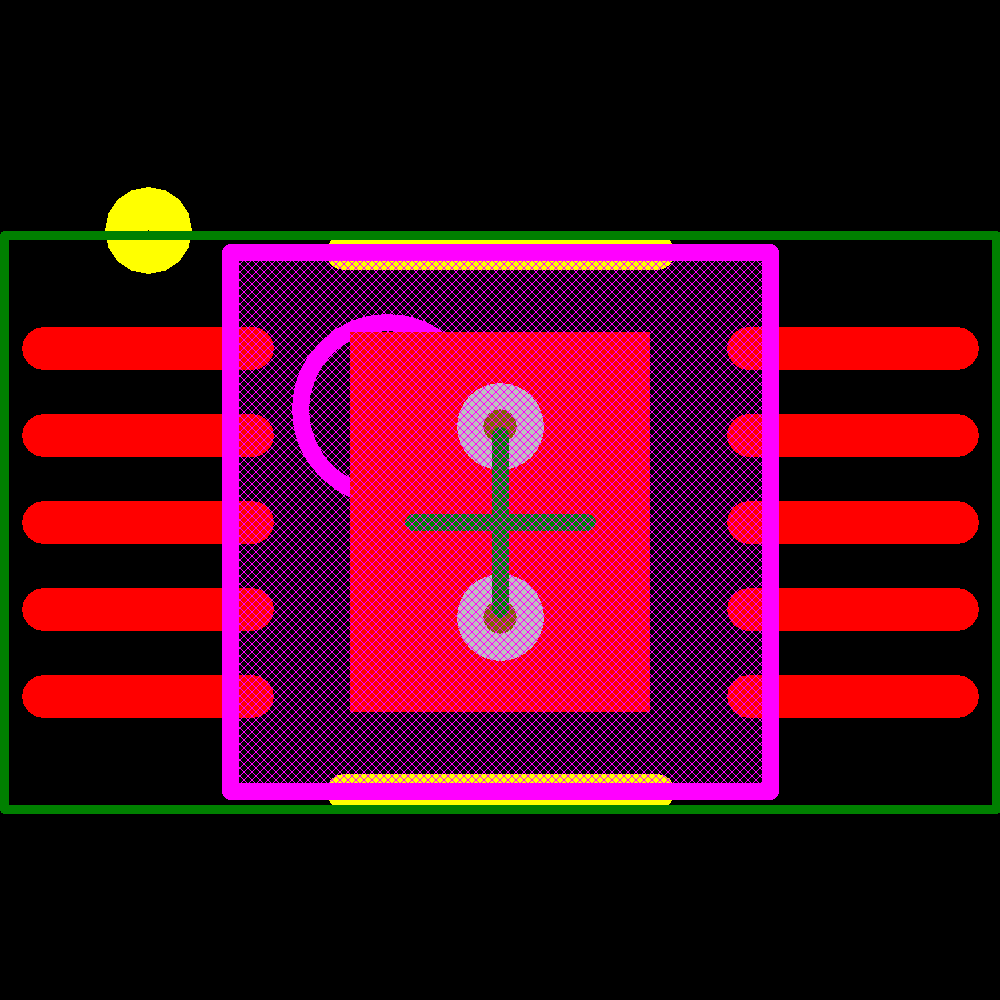

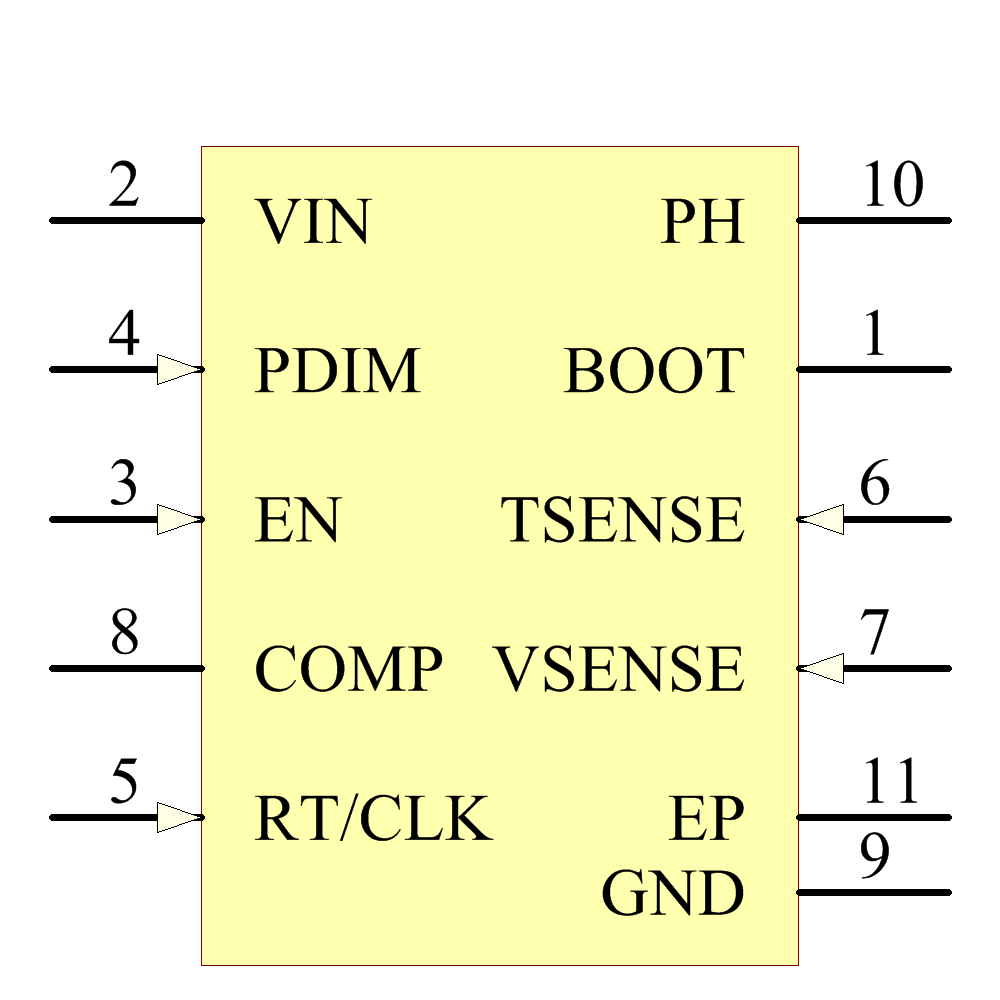

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Production | ||
| Microchip | Production | ||
| Micrel | Unknown | ||
| NXP Semiconductors | EOL | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
