TPS92512DGQR - Texas Instruments
42-V 2.5-A buck current regulator for LED Lighting 10-HVSSOP -40 to 125
Technical Details
| Case/Package | MSOP |
| Contact Plating | Gold |
| Dimming | PWM |
| Frequency | 2MHz |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 2.5A |
| Max Output Voltage | 40V |
| Max Supply Voltage | 42V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 200mV |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 337µA |
| Number of Outputs | 1 |
| Number of Pins | 10 |
| Output Current | 2.5A |
| Output Current per Channel | 2.5A |
| Output Voltage | 45V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 337µA |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1.02mm |
| Topology | Buck |
| Weight | 23.501755mg |
| Width | 3mm |
Compliance
RoHS : Unconfirmed

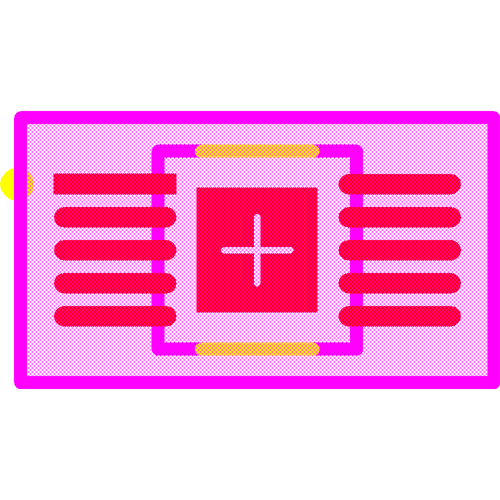

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Infineon | Obsolete | ||
| Infineon | Production | ||
| Infineon | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Infineon | Obsolete | ||
| Infineon | Obsolete | ||
| Infineon | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
