Integrated Circuits (ICs)  >  Power Management ICs  >  LED Drivers

Texas Instruments - TPS92692QPWPRQ1

TPS92692QPWPRQ1 - Texas Instruments

LED Driver 46000uA Supply Current Automotive AEC-Q100 20-Pin HTSSOP EP T/R

 Datasheets

Technical Details

Ambient Temperature Range High 125°C
Height 0m
Length 6.5mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Junction Temperature (Tj) 150°C
Max Operating Temperature 125°C
Max Supply Voltage 65V
Min Operating Temperature -40°C
Min Supply Voltage 6.5V
Nominal Supply Current 5.1mA
Number of Channels 1
Number of Outputs 1
Number of Pins 20
Output Current 5A
Output Voltage 65V
RoHS Compliant
Schedule B 8542390000
Thickness 1mm
Topology Buck-Boost
Width 4.4mm

Compliance

   RoHS : Unconfirmed

Images

Texas Instruments TPS92692QPWPRQ1 | Texas Instruments

Texas Instruments

Datasheets

 Verical
 Arrow Electronics
 DigiKey

Lifecycle Status Indicator

   Production

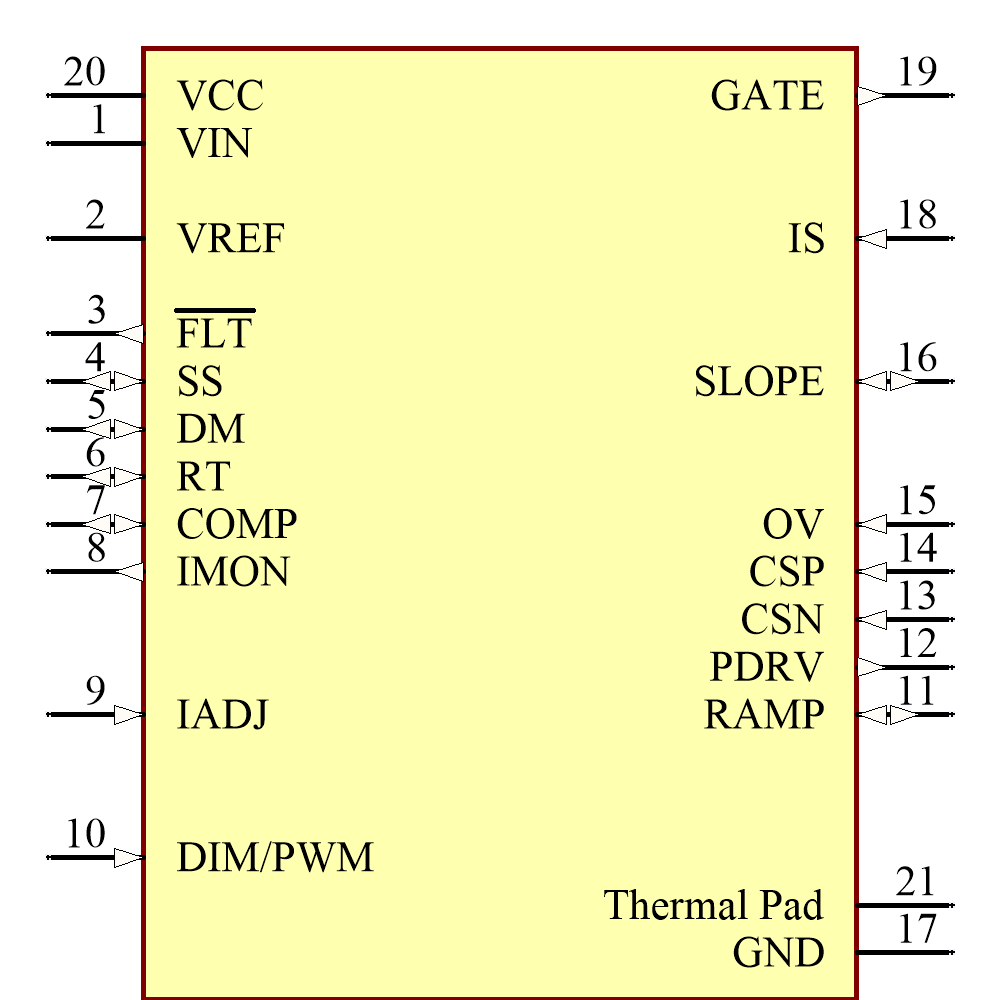

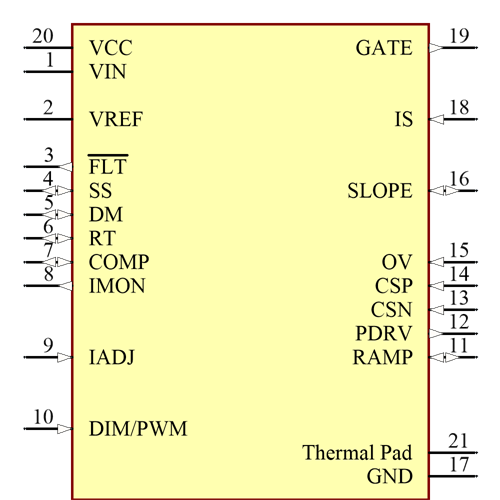

Symbol

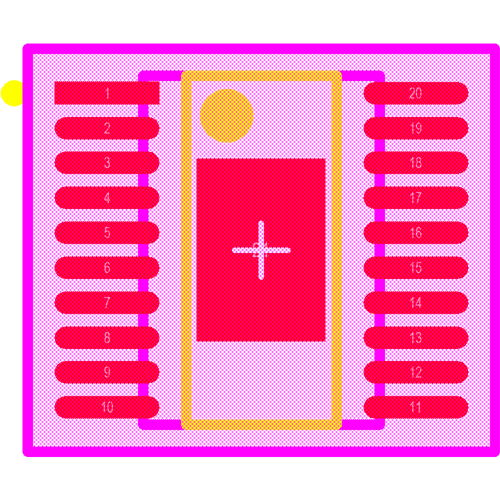

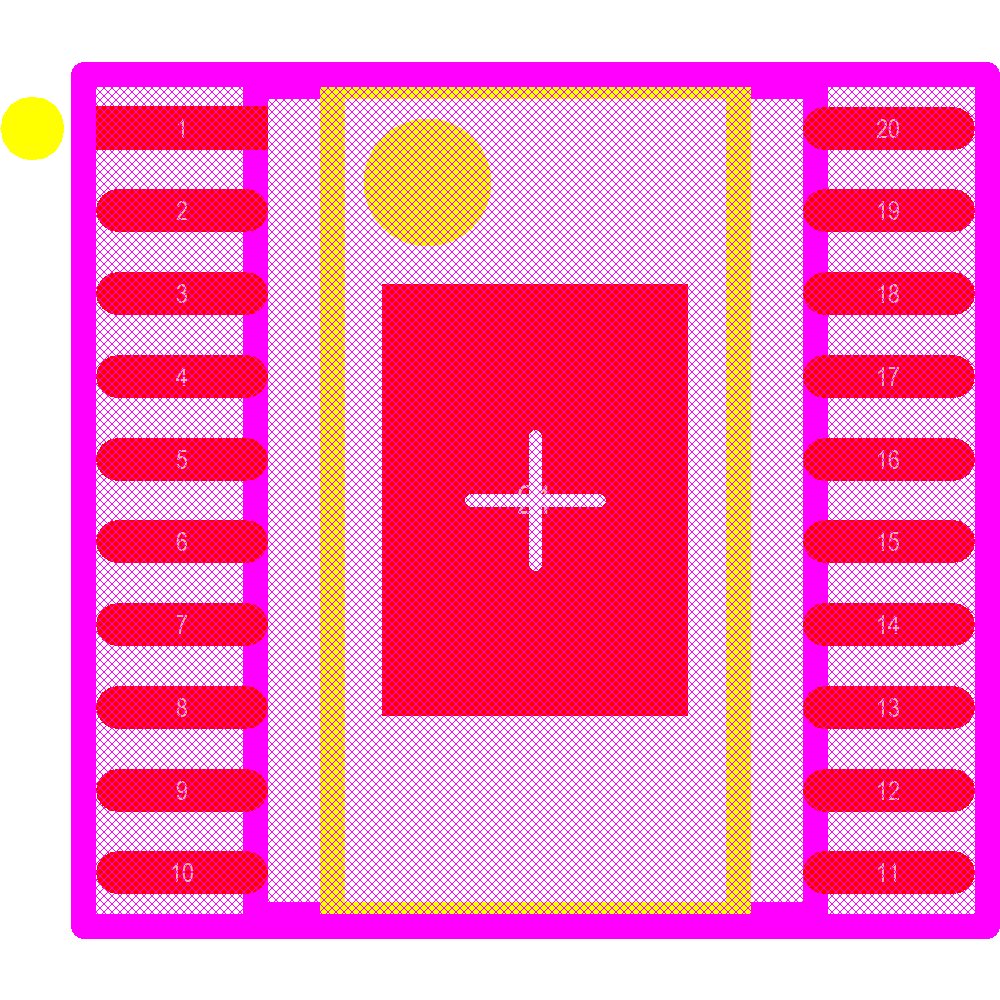

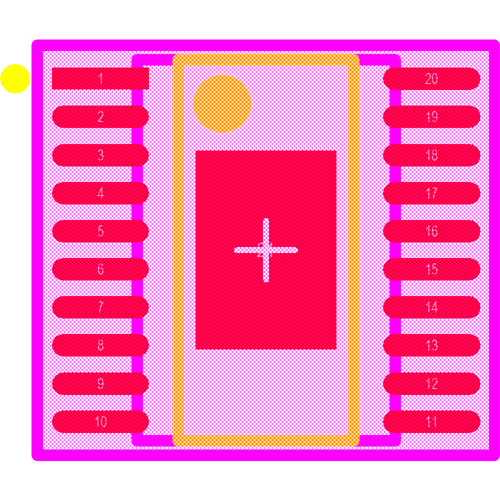

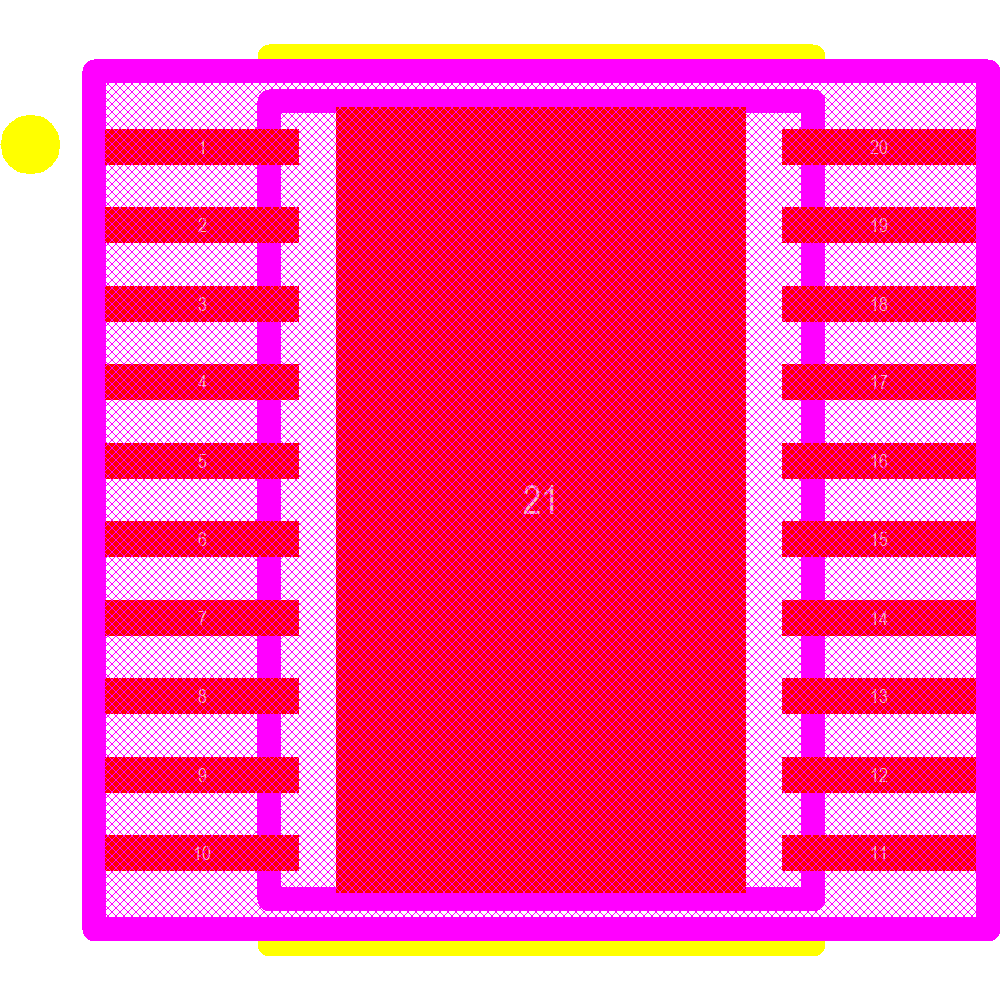

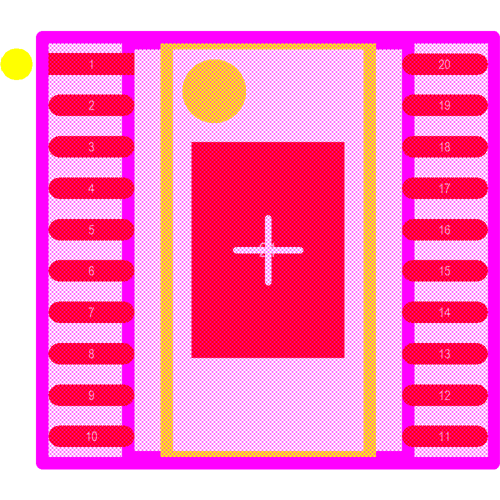

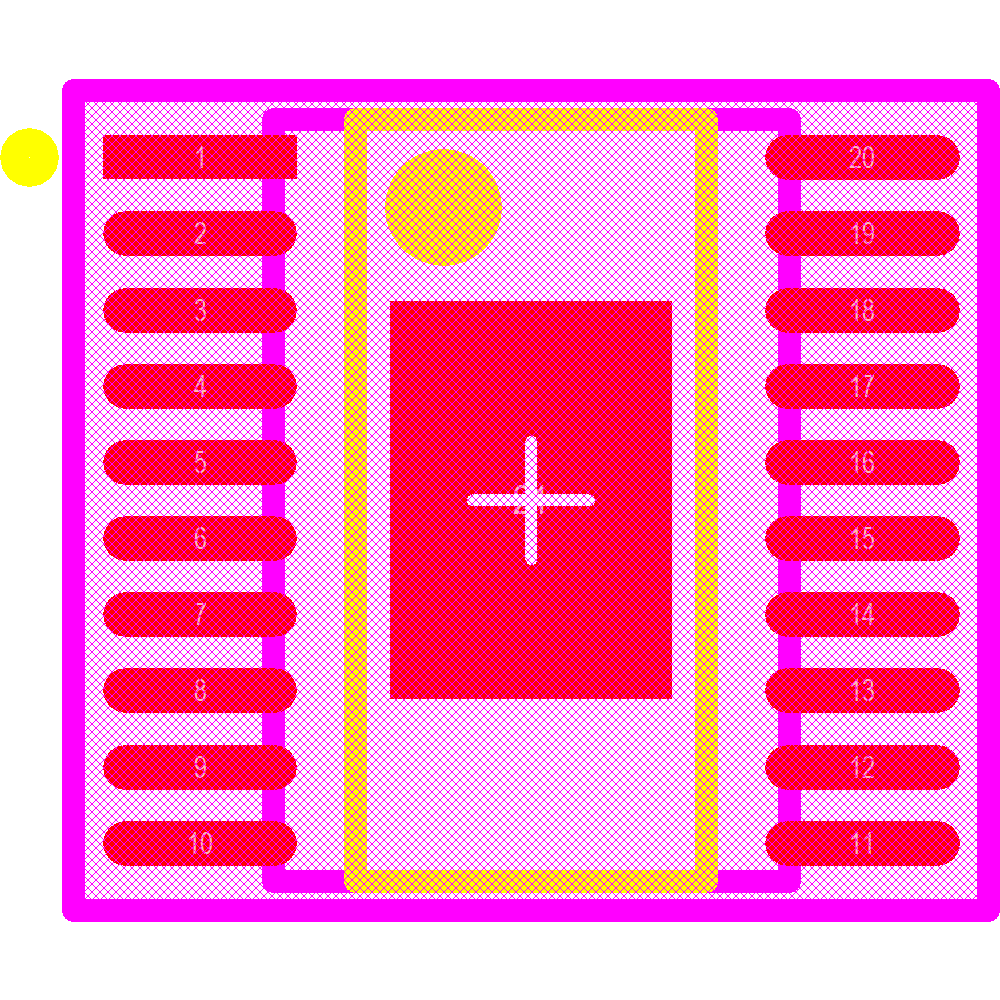

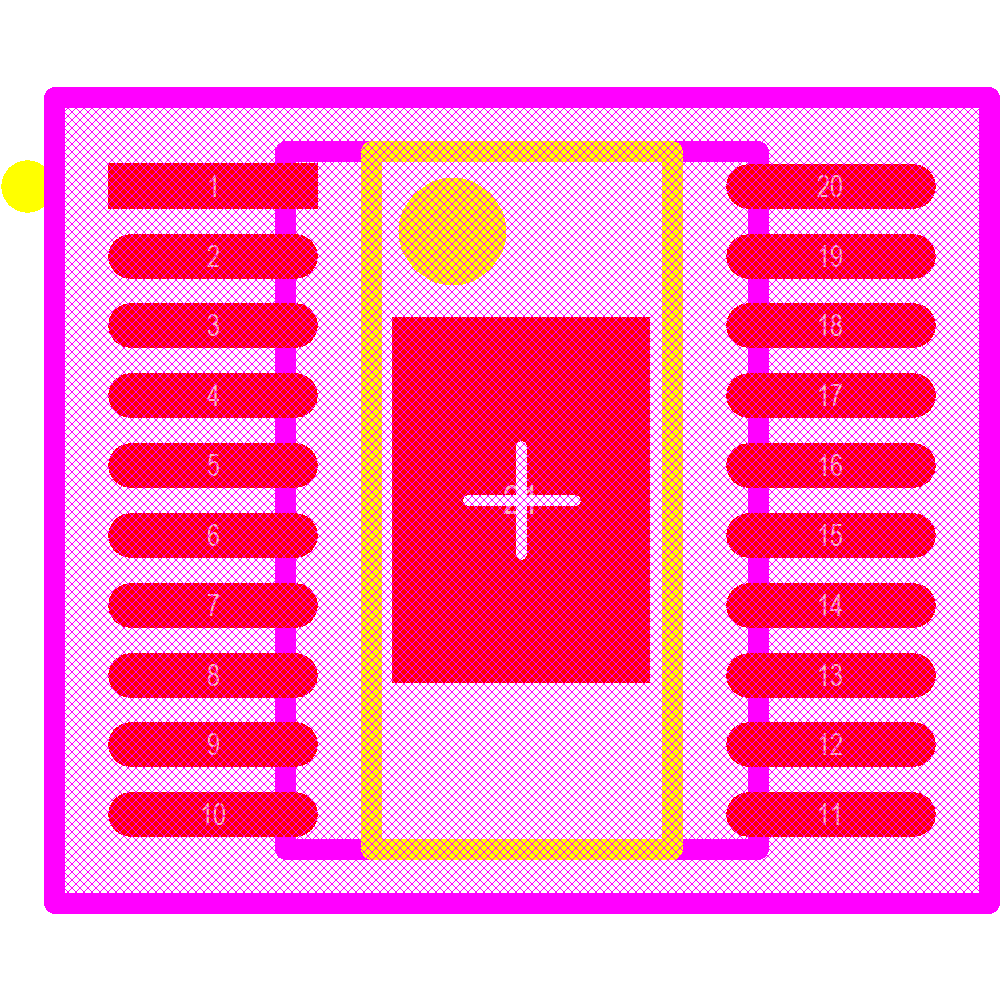

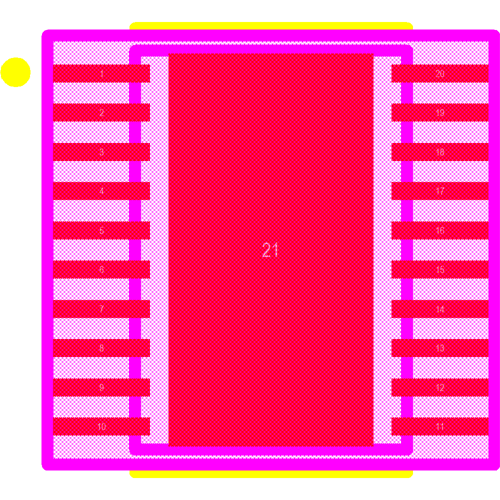

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Texas Instruments
TPS92692PWPR
Production
Infineon
ICL5101XUMA1
NRND
Texas Instruments
TPS92691PWP
Production
Texas Instruments
TPS92691PWPR
Production
Texas Instruments
TPS92691QPWPRQ1
Production
Texas Instruments
TPS92691QPWPTQ1
Production
Texas Instruments
TPS92691QPWPQ1
Production
Texas Instruments
TPS92692PWPT
Production
Texas Instruments
TPS92692QPWPTQ1
Production
