UA78L05AIPK - Texas Instruments
100mA 49dB@(120Hz) null 5V positive 20V SOT-89 Linear Voltage Regulators (LDO) ROHS
Technical Details
| Accuracy | 5% |
| Case/Package | SIP |
| Contact Plating | Tin |
| Dropout Voltage | 1.7V |
| Height | 1.6mm |
| Length | 4.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 20V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 100mA |
| Max Output Voltage | 5.2V |
| Max Supply Voltage | 20V |
| Min Input Voltage | 7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 4.75V |
| Min Supply Voltage | 7V |
| Mount | Surface Mount |
| Nominal Output Voltage | 5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 3 |
| Number of Regulators | 1 |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Output Voltage Accuracy | 5% |
| Packaging | Cut Tape |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 49dB |
| Quiescent Current | 3.8mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Termination | SMD/SMT |
| Thickness | 1.5mm |
| Weight | 130.492855mg |
| Width | 2.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

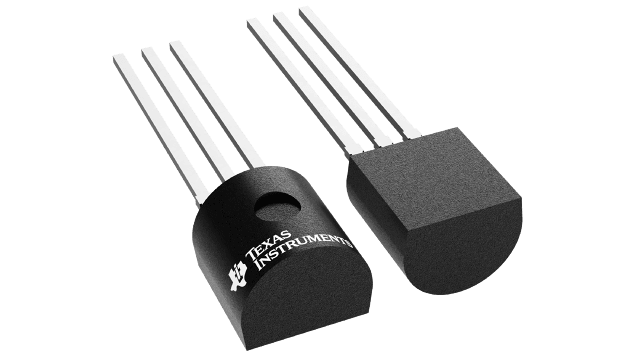

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Obsolete | ||
| NEC | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| MCC | Production |
