Technical Details
| Duty Cycle | 50% |
| Fall Time | 40ns |
| Height | 0m |
| Lead Free | Contains Lead |
| Length | 8.89mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Duty Cycle | 50% |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 40V |
| Min Operating Temperature | -55°C |
| Number of Pins | 20 |
| Output Current | 1.5A |
| Packaging | Rail/Tube |
| Rise Time | 40ns |
| RoHS | Non-Compliant |
| Switching Frequency | 220kHz |
| Thickness | 1.83mm |
| Topology | Boost, Flyback, Full-Bridge, Half-Bridge, Push-Pull |
| Width | 8.89mm |
Compliance
RoHS : Unconfirmed

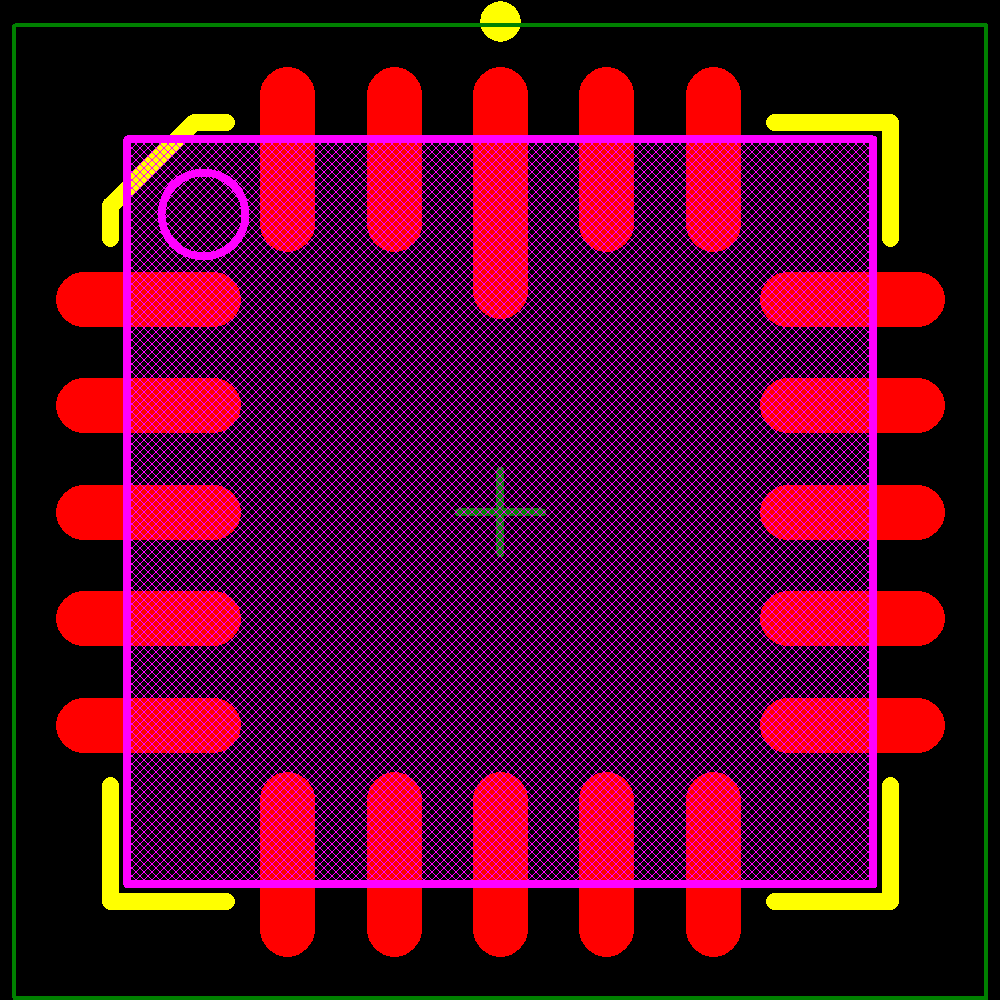

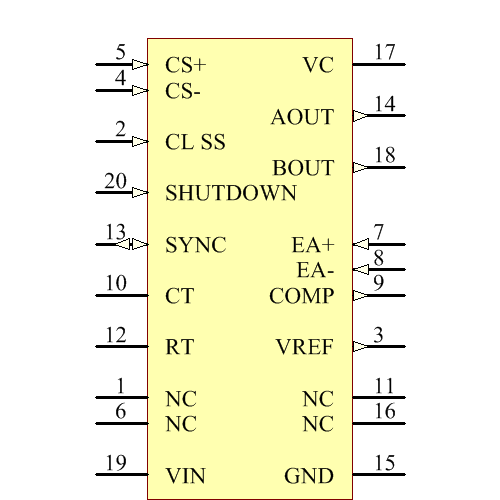

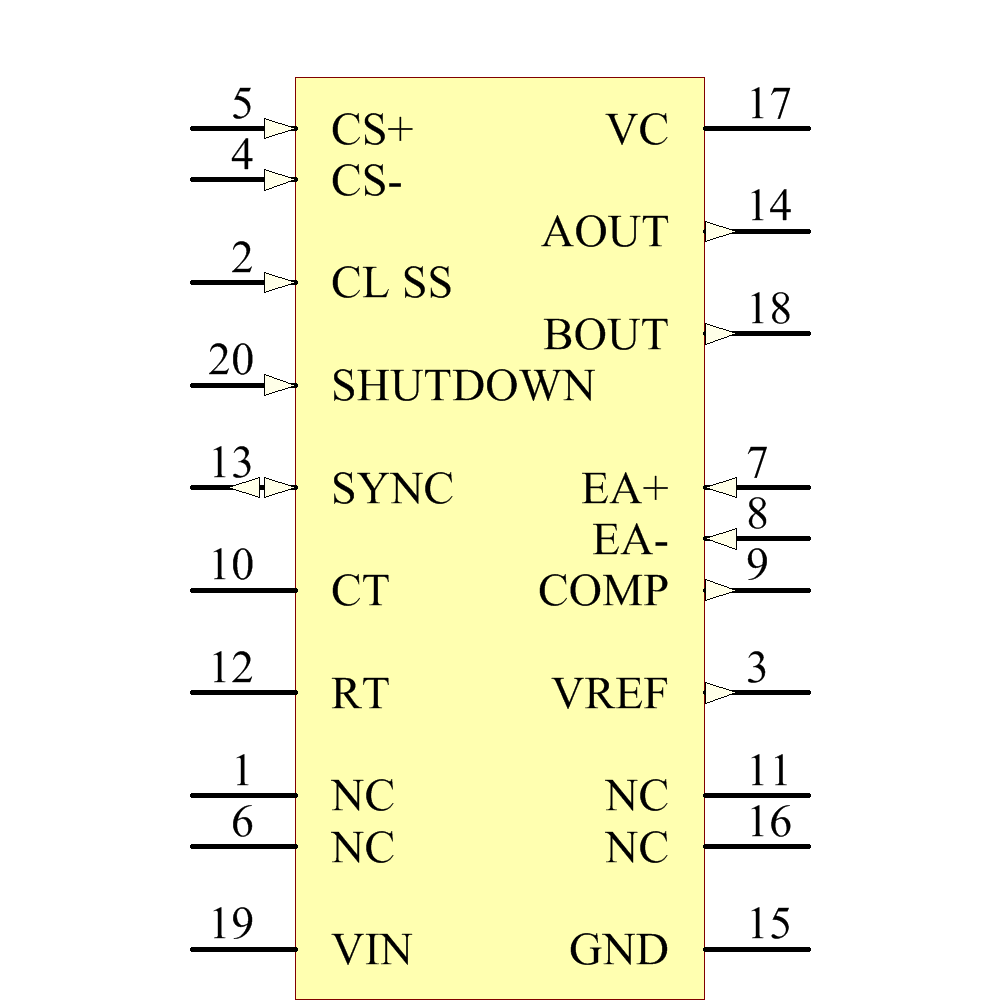

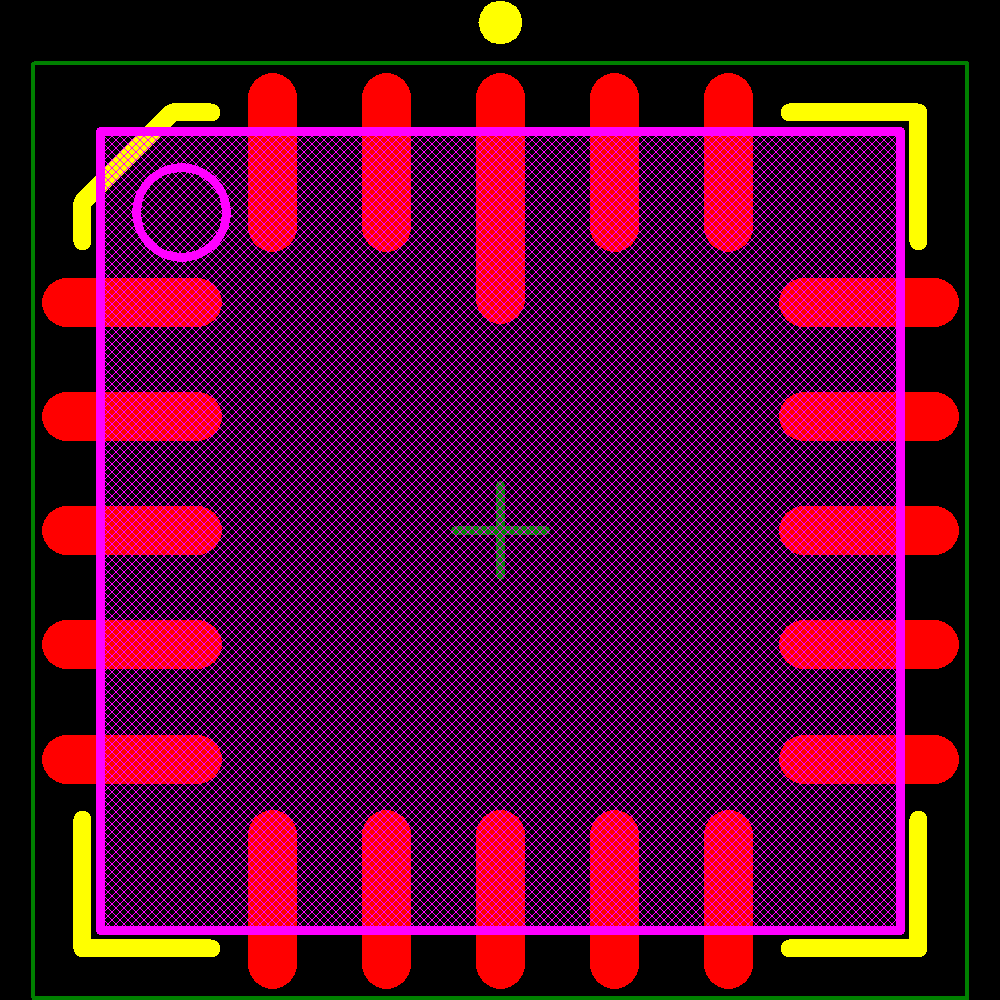

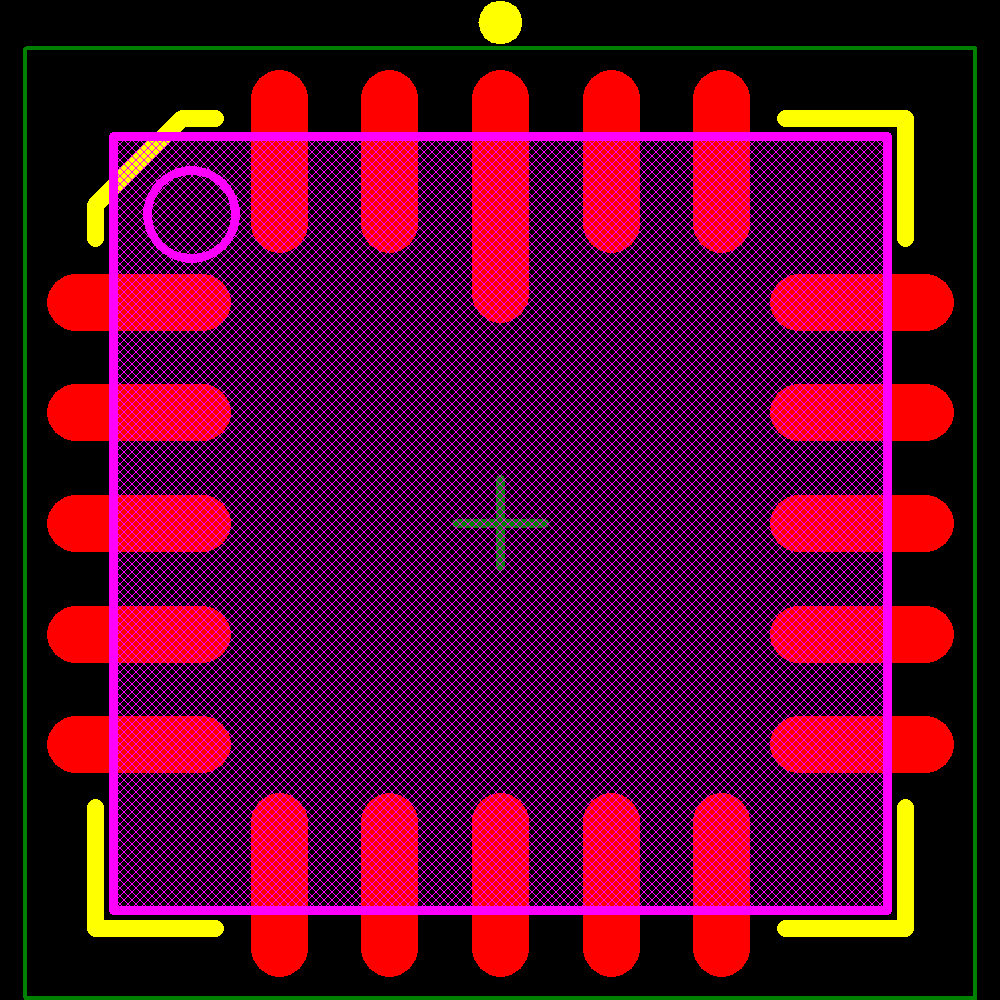

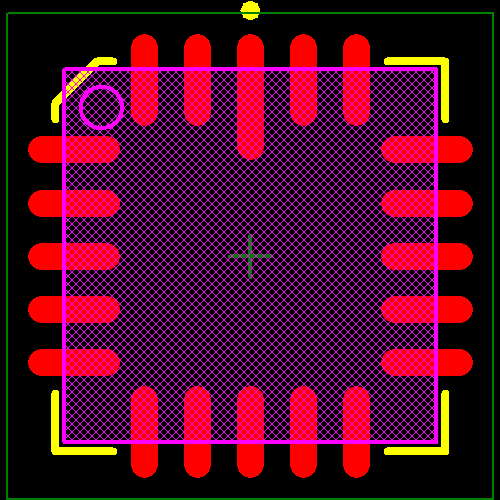

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production |
