UC3834NG4 - Texas Instruments
IC LNR REG CTRLR 1OUT 16DIP Linear Regulator Controller IC Positive Fixed and Negative Fixed 1 Output 16-PDIP
Technical Details
| Case/Package | N |
| Dropout Voltage | 500mV |
| Height | 4.57mm |
| Lead Free | Contains Lead |
| Length | 19.3mm |
| Max Input Voltage | 35V |
| Max Operating Temperature | 70°C |
| Max Output Current | 350mA |
| Min Input Voltage | 5V |
| Min Operating Temperature | 0°C |
| Nominal Supply Current | 5.5mA |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Operating Supply Current | 5.5mA |
| Output Type | Adjustable, Fixed |
| Output Voltage | 1.5V |
| Power Rating | 1W |
| Quiescent Current | 5.5mA |
| RoHS | Compliant |
| Weight | 1.05001g |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed

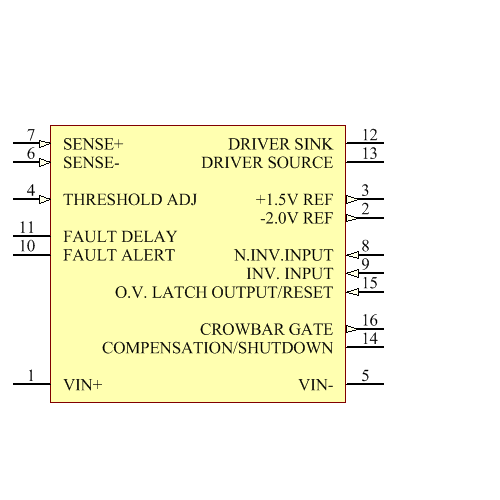

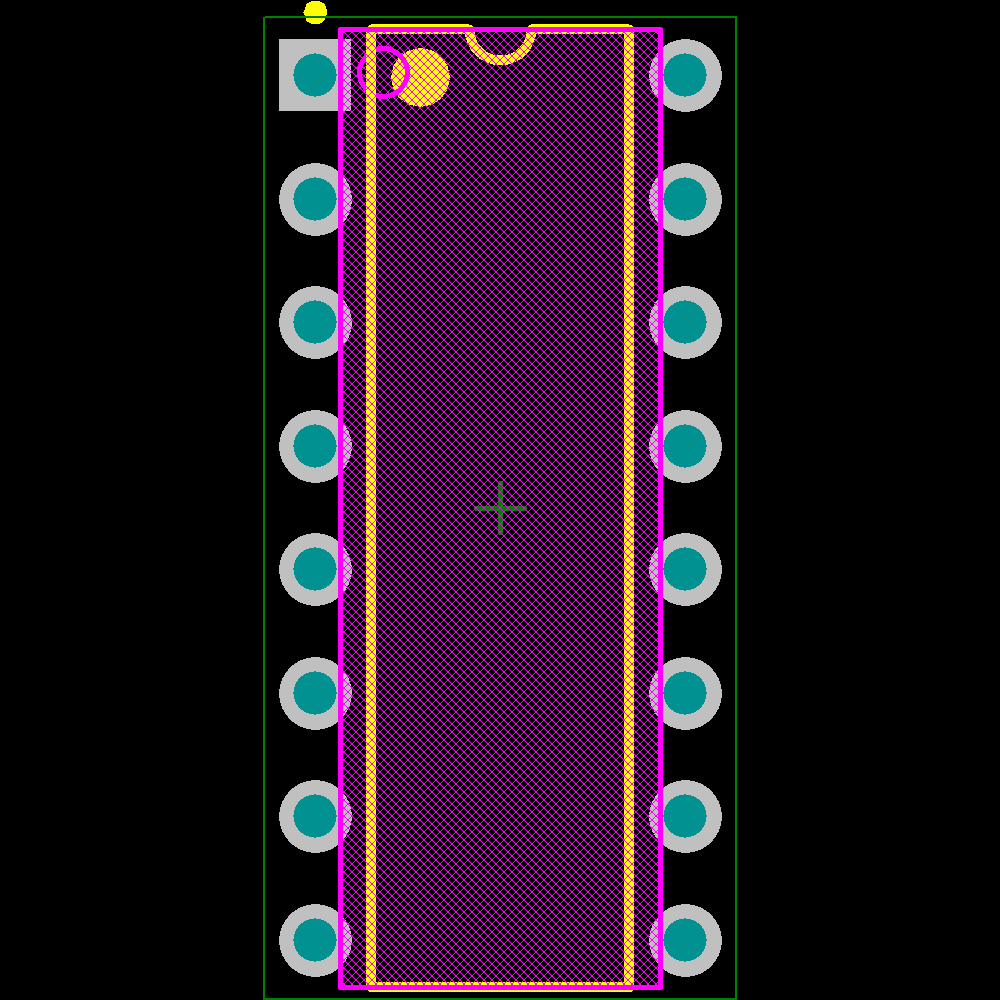

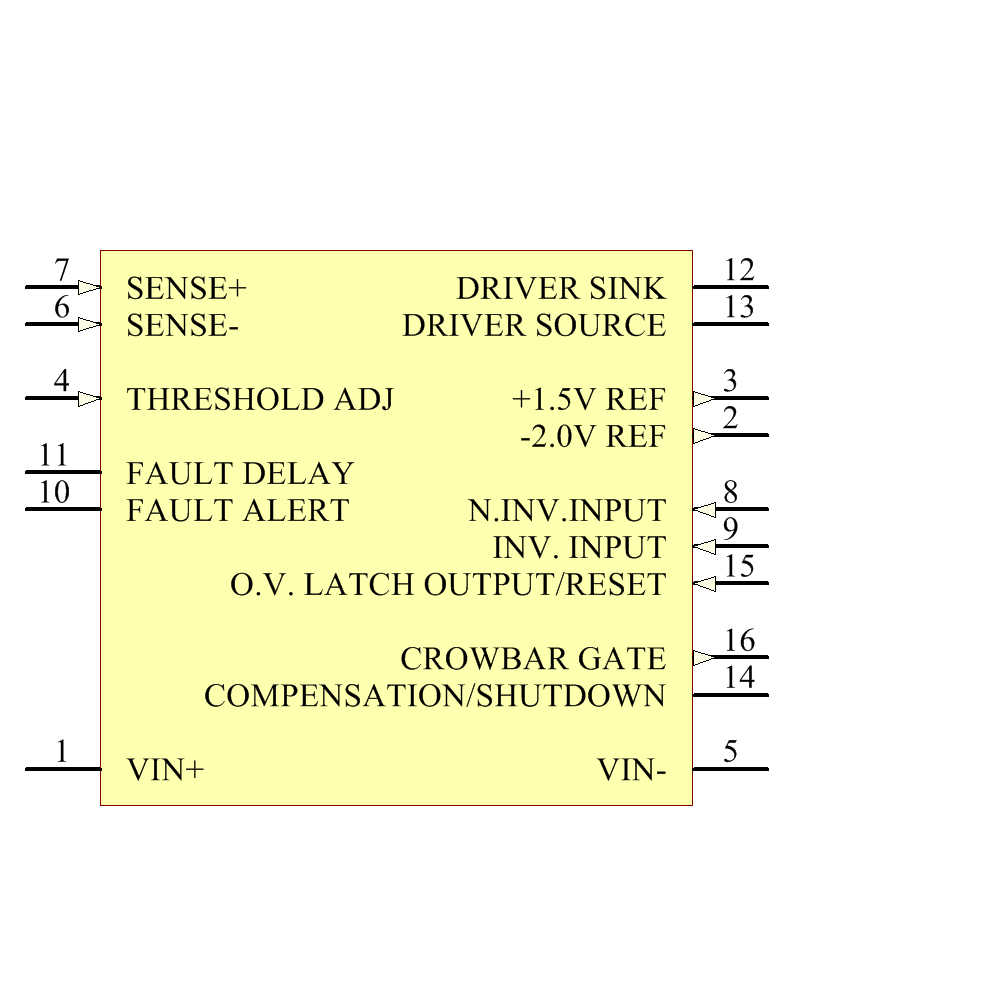

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
