UC3842D8TR - Texas Instruments

IC REG CTRLR PWM CM 8SOIC Power Supply Controller PWM Controller 8-SOIC

Technical Details

Case/Package	SOIC
Duty Cycle	100%
Fall Time	50ns
Frequency	450kHz
Height	1.75mm
Lead Free	Lead Free
Length	4.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Duty Cycle	100%
Max Frequency	500kHz
Max Operating Temperature	70°C
Max Supply Voltage	30V
Min Operating Temperature	0°C
Nominal Input Voltage	25V
Number of Outputs	1
Number of Pins	8
Output Voltage	13.5V
Packaging	Tape & Reel (TR)
Radiation Hardening	No
Rise Time	50ns
RoHS	Compliant
Switching Frequency	500kHz
Thickness	1.58mm
Topology	Boost, Buck, Buck-Boost, Flyback
Weight	72.603129mg
Width	3.91mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

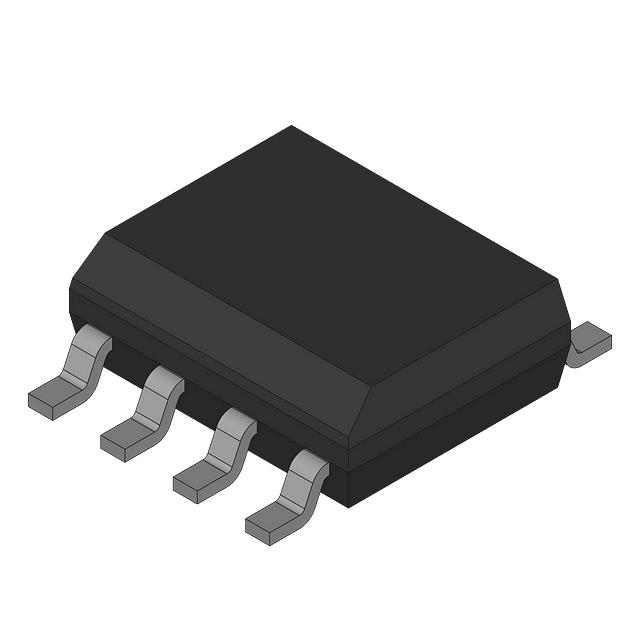

Texas Instruments UC3842D8TR | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

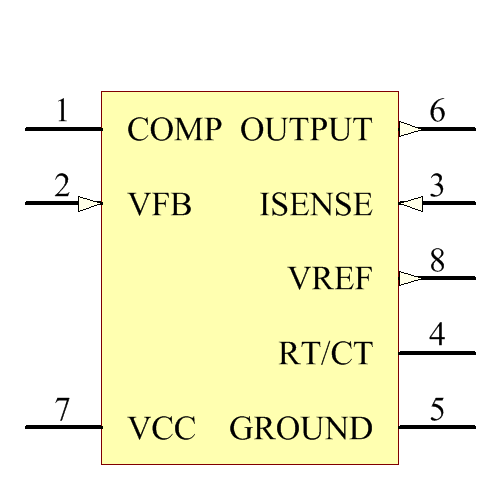

UC3842D8TR Symbol - Texas Instruments

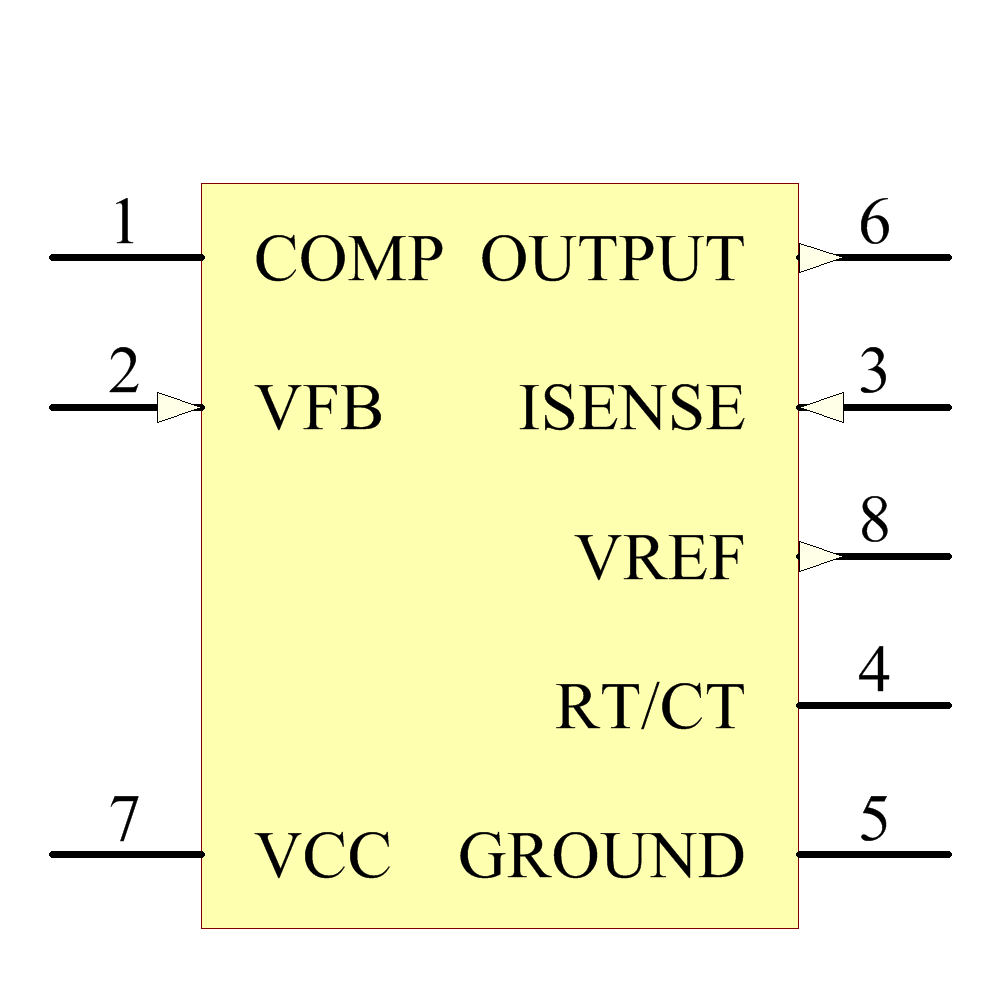

UC3842D8TR Symbol - Texas Instruments

UC3842D8TR Symbol - Texas Instruments

UC3842D8TR Symbol - Texas Instruments

‹ ›

Footprint

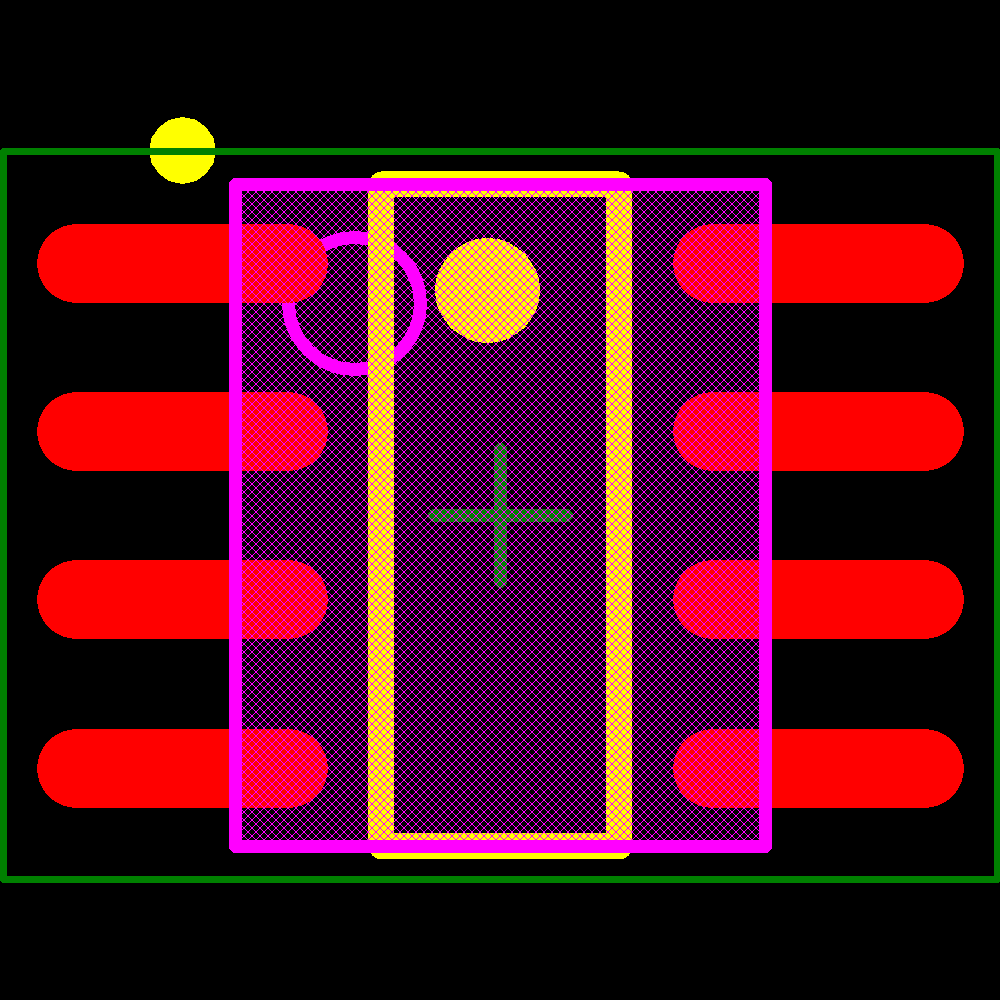

UC3842D8TR Footprint - Texas Instruments

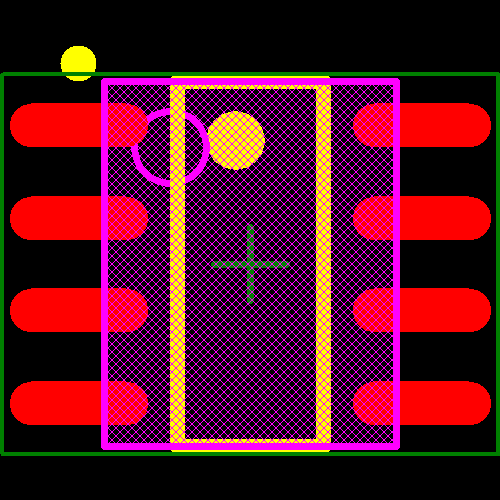

UC3842D8TR Footprint - Texas Instruments

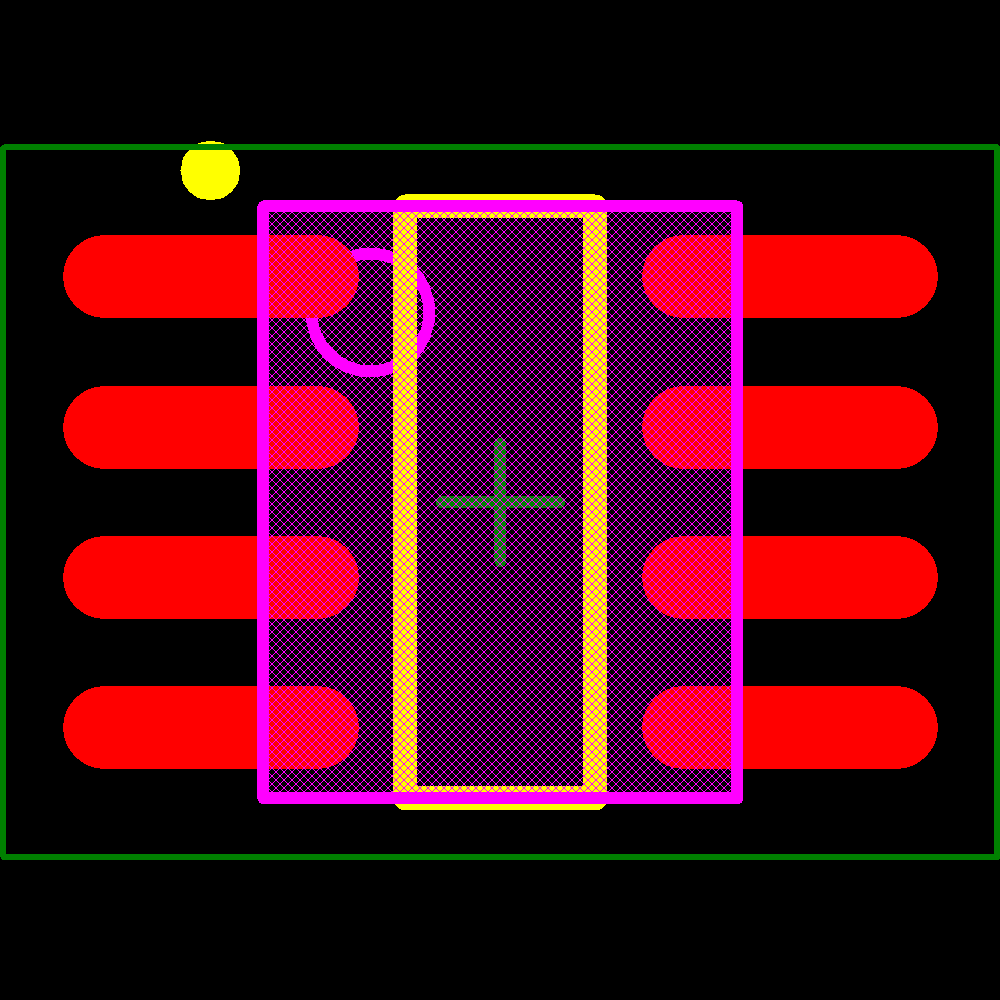

UC3842D8TR Footprint - Texas Instruments

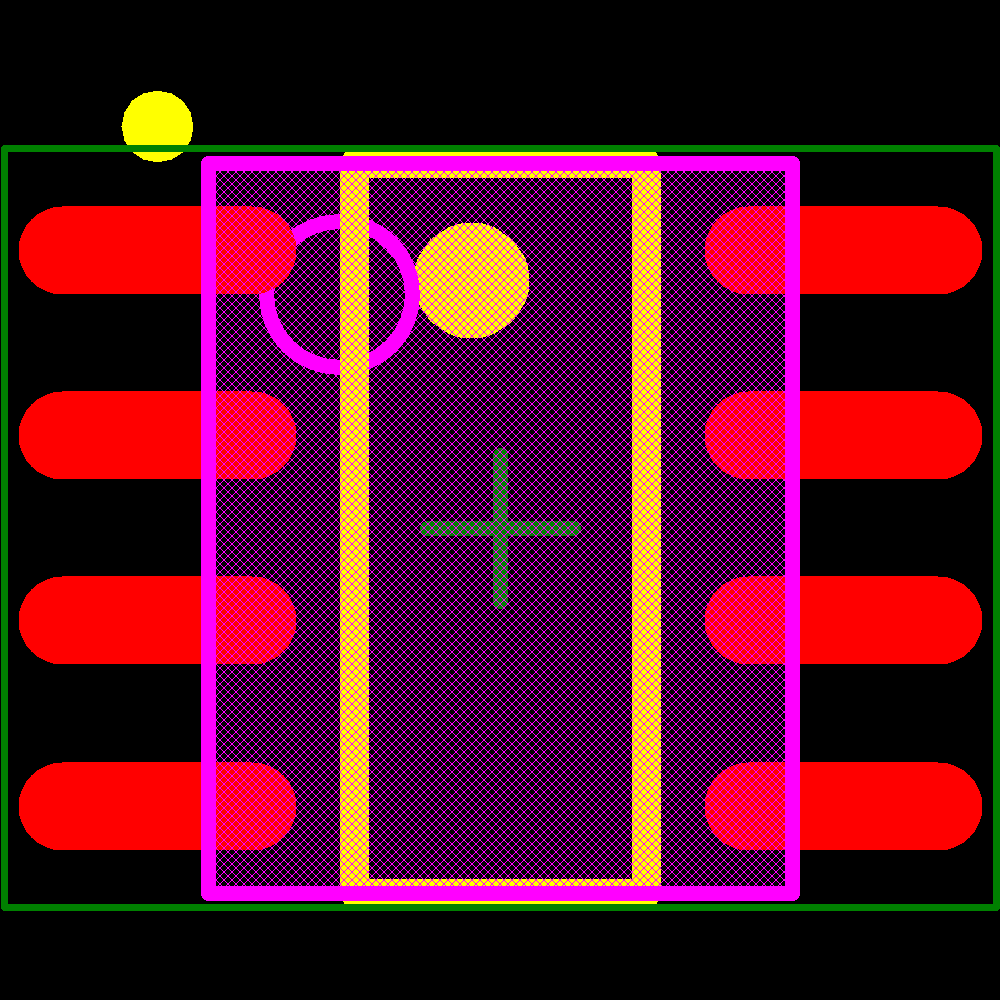

UC3842D8TR Footprint - Texas Instruments
