UC3842D8TRG4 - Texas Instruments
Tape & Reel (TR) e4 Flyback Boost BICMOS dc ac converter 13.5V 4.9mm 500kHz 200mA
Technical Details
| Case/Package | D |
| Duty Cycle | 97% |
| Fall Time | 50ns |
| Frequency | 450kHz |
| Lead Free | Lead Free |
| Max Duty Cycle | 100% |
| Max Frequency | 500kHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 30V |
| Min Operating Temperature | 0°C |
| Nominal Input Voltage | 25V |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Output Voltage | 13.5V |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| Rise Time | 50ns |
| RoHS | Compliant |
| Switching Frequency | 500kHz |
| Topology | Boost, Buck, Flyback |
| Weight | 72.603129mg |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

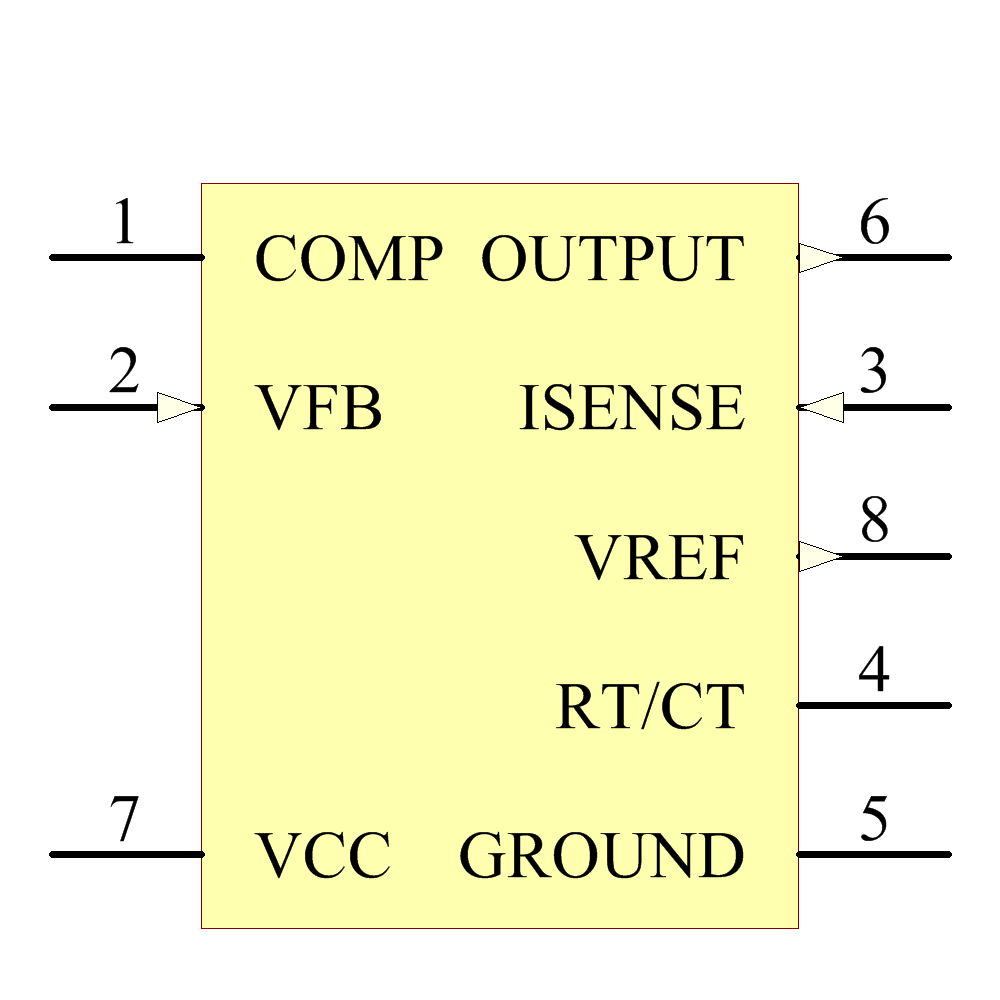

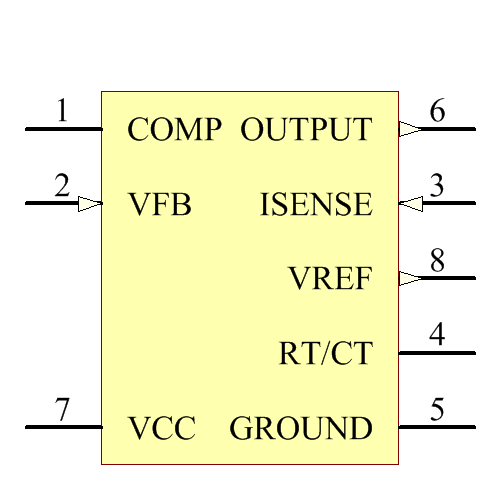

Images
