UC3844D8G4 - Texas Instruments
AC to DC Switching Converter Off-Line Switcher 17.5V 500kHz Tube 8-Pin SOIC
Technical Details
| Case/Package | SOIC |
| Duty Cycle | 48% |
| Fall Time | 50ns |
| Frequency | 450kHz |
| Height | 1.58mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Duty Cycle | 50% |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 30V |
| Min Operating Temperature | 0°C |
| Nominal Input Voltage | 25V |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Output Voltage | 13.5V |
| Radiation Hardening | No |
| Rise Time | 50ns |
| RoHS | Compliant |
| Switching Frequency | 500kHz |
| Topology | Boost, Buck, Flyback |
| Weight | 72.603129mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

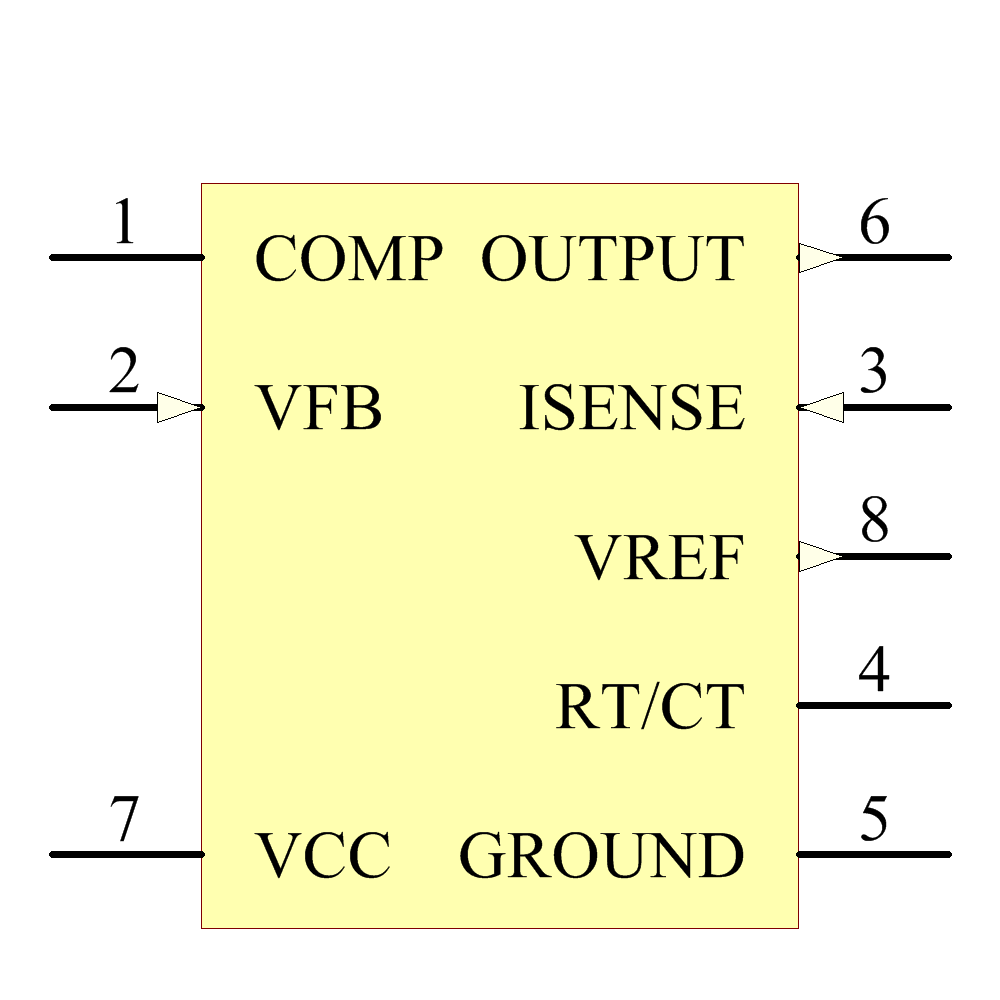

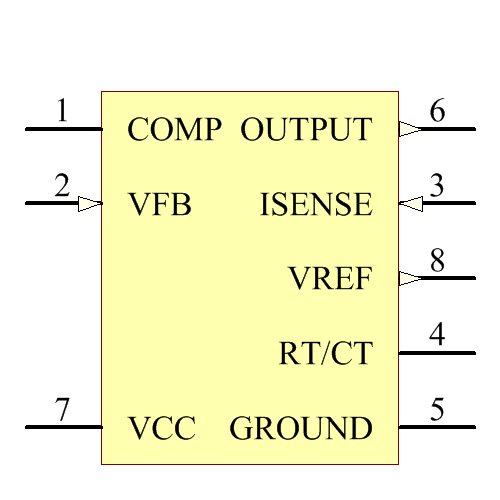

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
