Texas Instruments - UCC25701PW

UCC25701PW - Texas Instruments

Voltage Mode PWM Controller 1A 700kHz 14-Pin TSSOP

 Datasheets

Technical Details

Case/Package TSSOP
Duty Cycle 100%
Fall Time 20ns
Frequency 700kHz
Height 0m
Length 5mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Duty Cycle 99%
Max Frequency 700kHz
Max Operating Temperature 85°C
Max Supply Voltage 15V
Min Operating Temperature -40°C
Number of Outputs 1
Number of Pins 14
Output Voltage 400mV
Quiescent Current 750µA
Rise Time 20ns
RoHS Compliant
Switching Frequency 700kHz
Thickness 1mm
Topology Boost, Flyback
Width 4.4mm

Compliance

   RoHS : Unconfirmed

Images

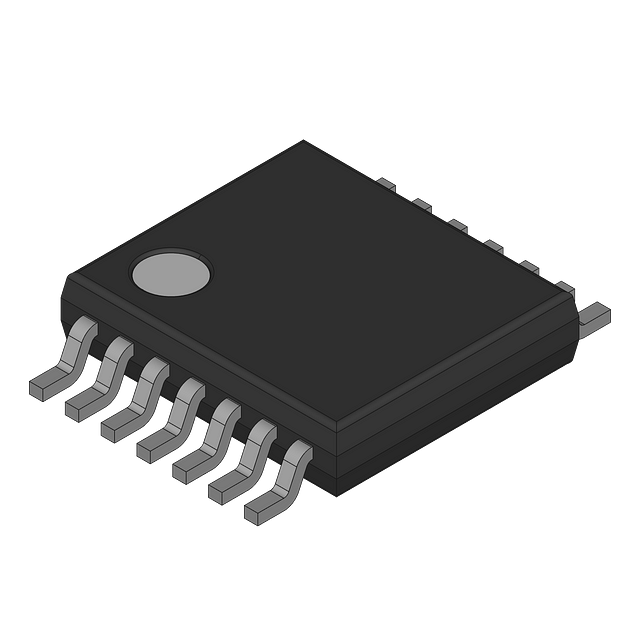

Texas Instruments UCC25701PW | Rochester Electronics

Rochester Electronics

Datasheets

 Rochester Electronics
 Rochester Electronics
 Verical

Lifecycle Status Indicator

   Production

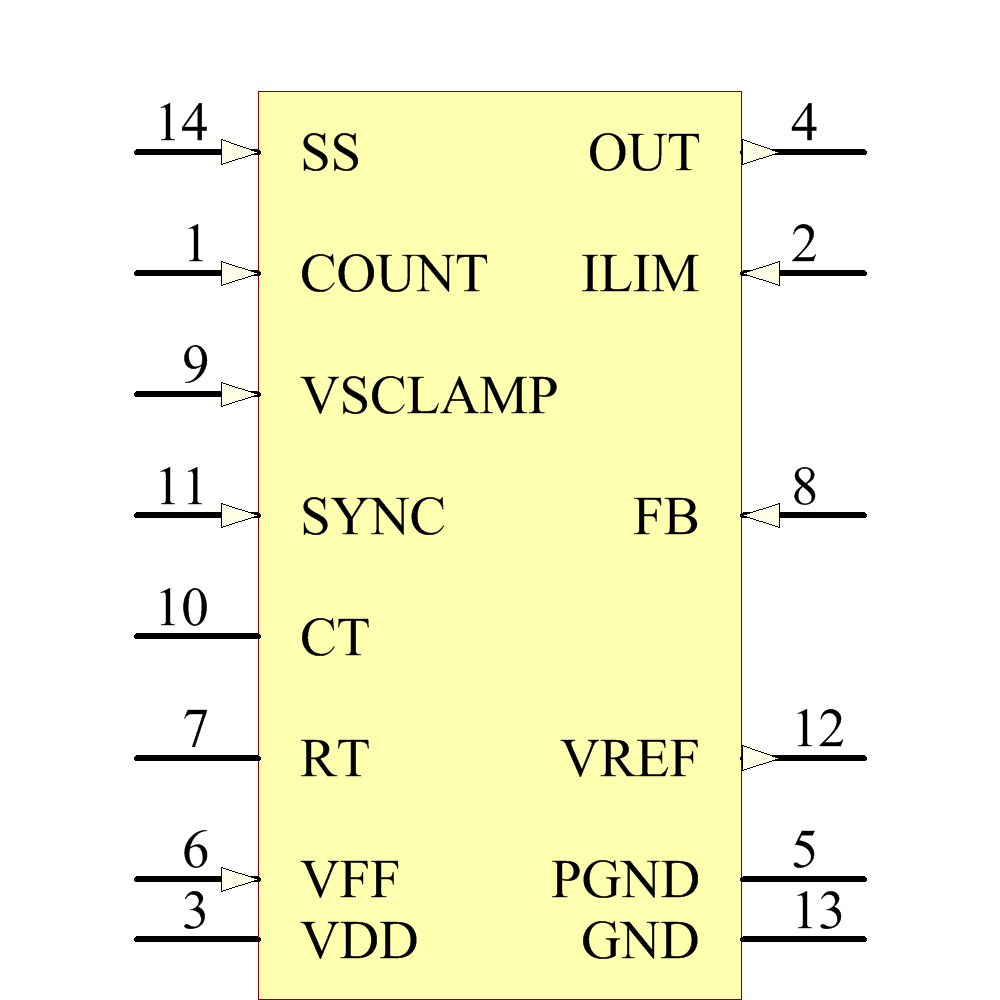

Symbol

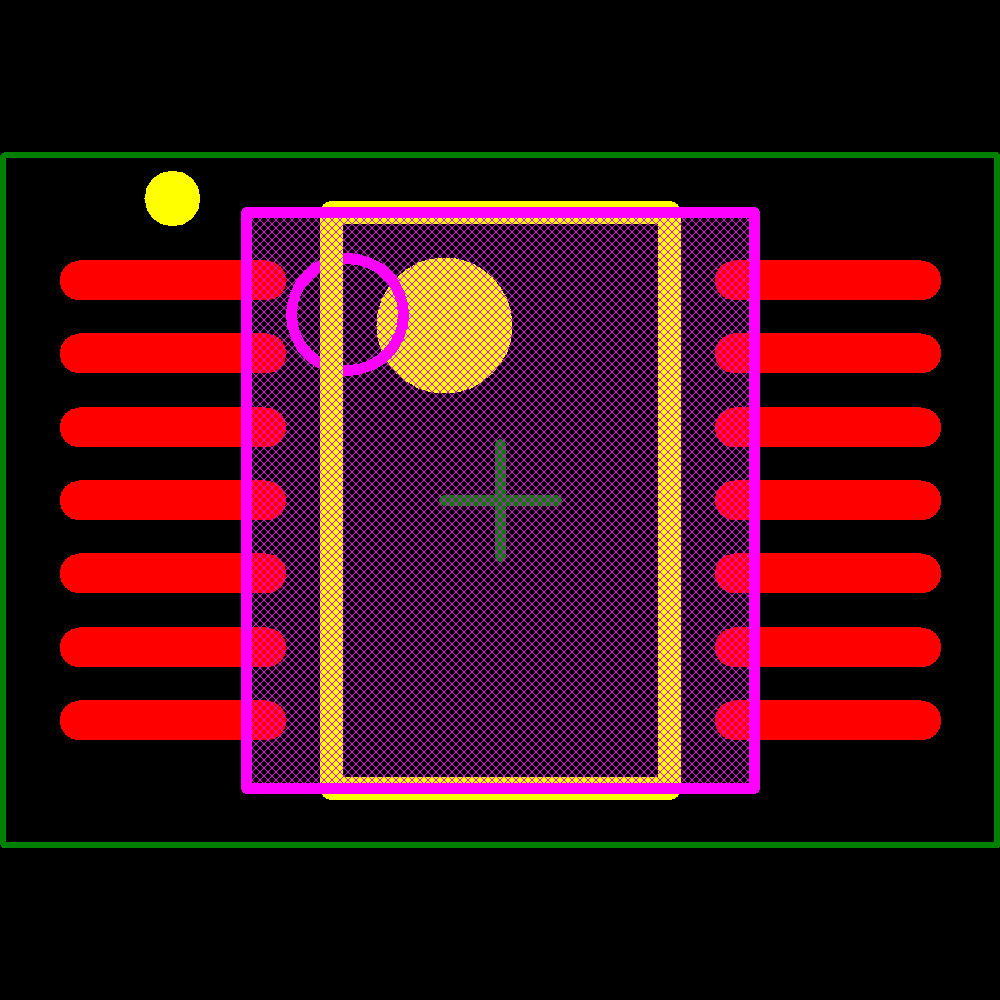

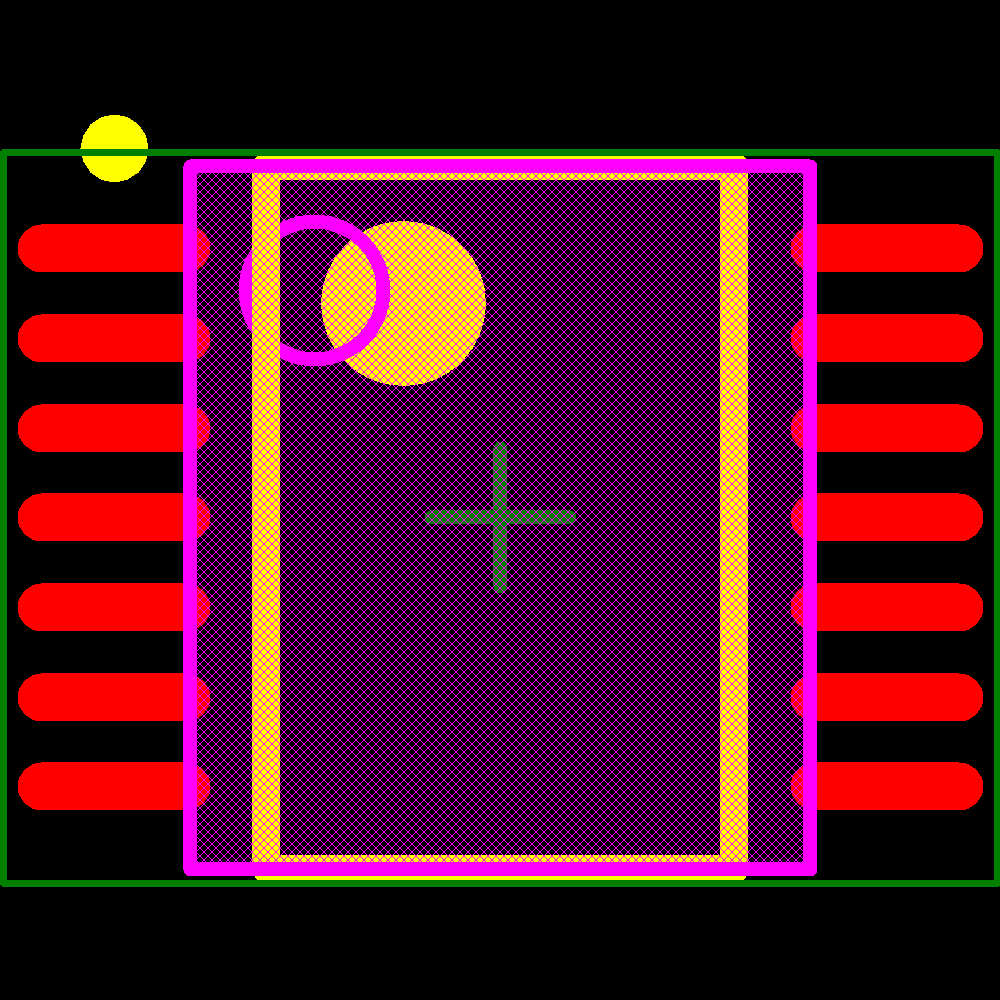

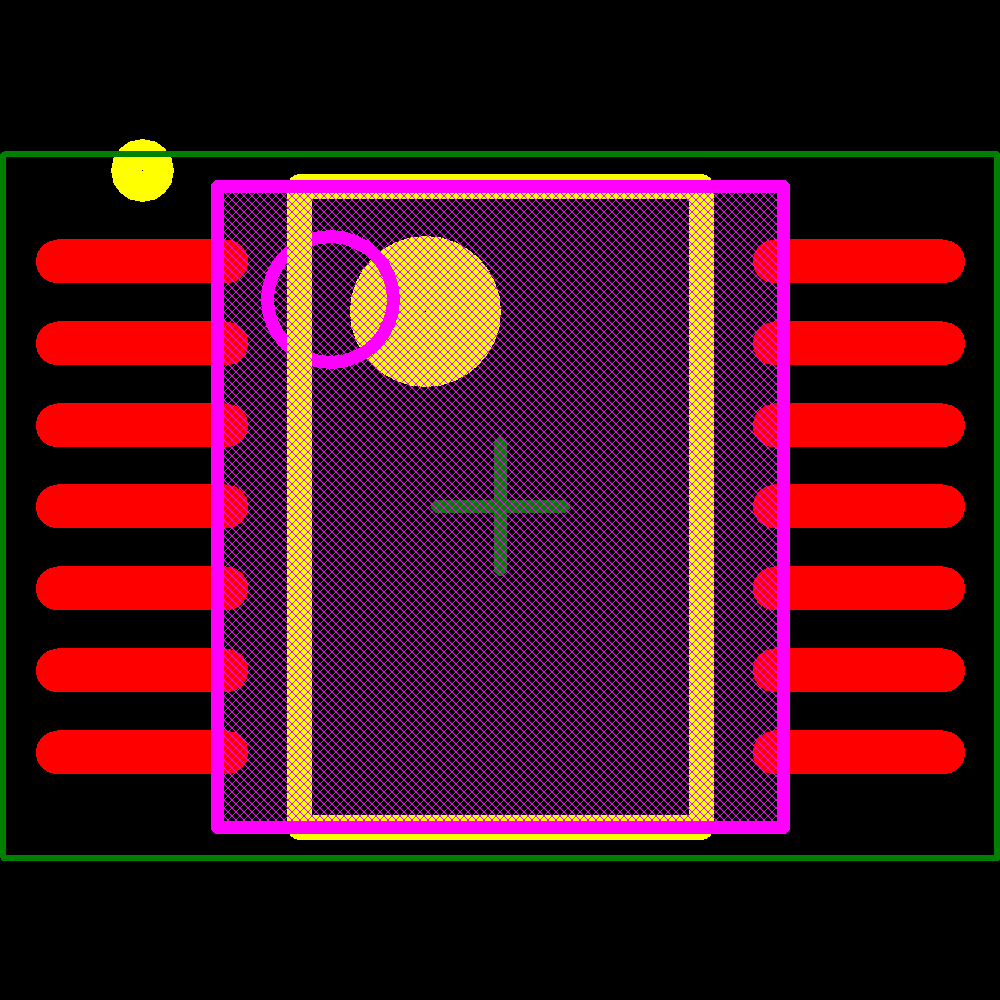

Footprint
