Technical Details
| Case/Package | TSSOP |
| Duty Cycle | 100% |
| Fall Time | 20ns |
| Frequency | 700kHz |
| Height | 0m |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Duty Cycle | 99% |
| Max Frequency | 700kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 15V |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Output Voltage | 400mV |
| Radiation Hardening | No |
| Rise Time | 20ns |
| RoHS | Compliant |
| Switching Frequency | 700kHz |
| Thickness | 1mm |
| Topology | Boost, Flyback |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

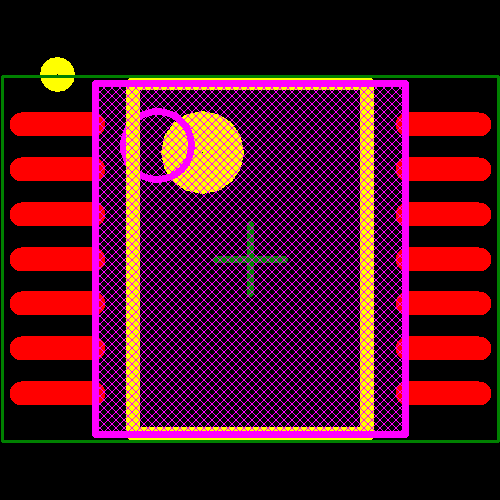

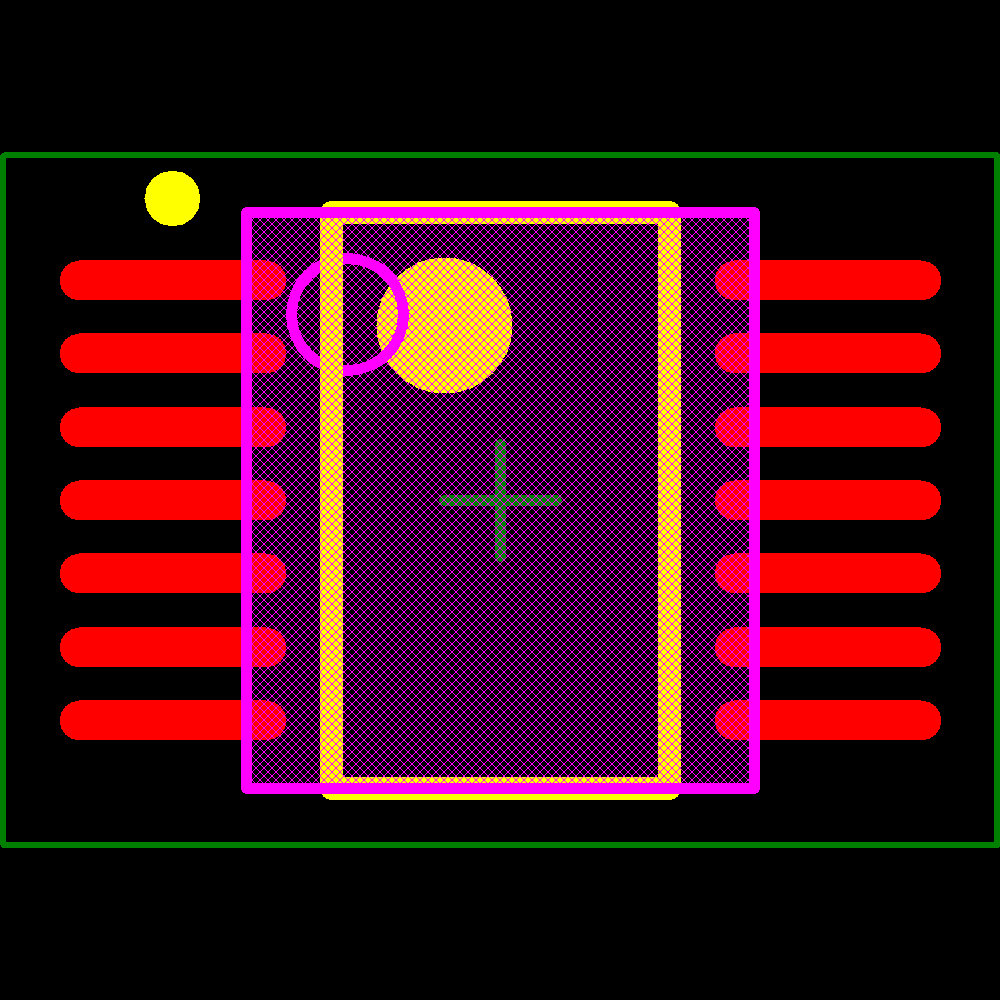

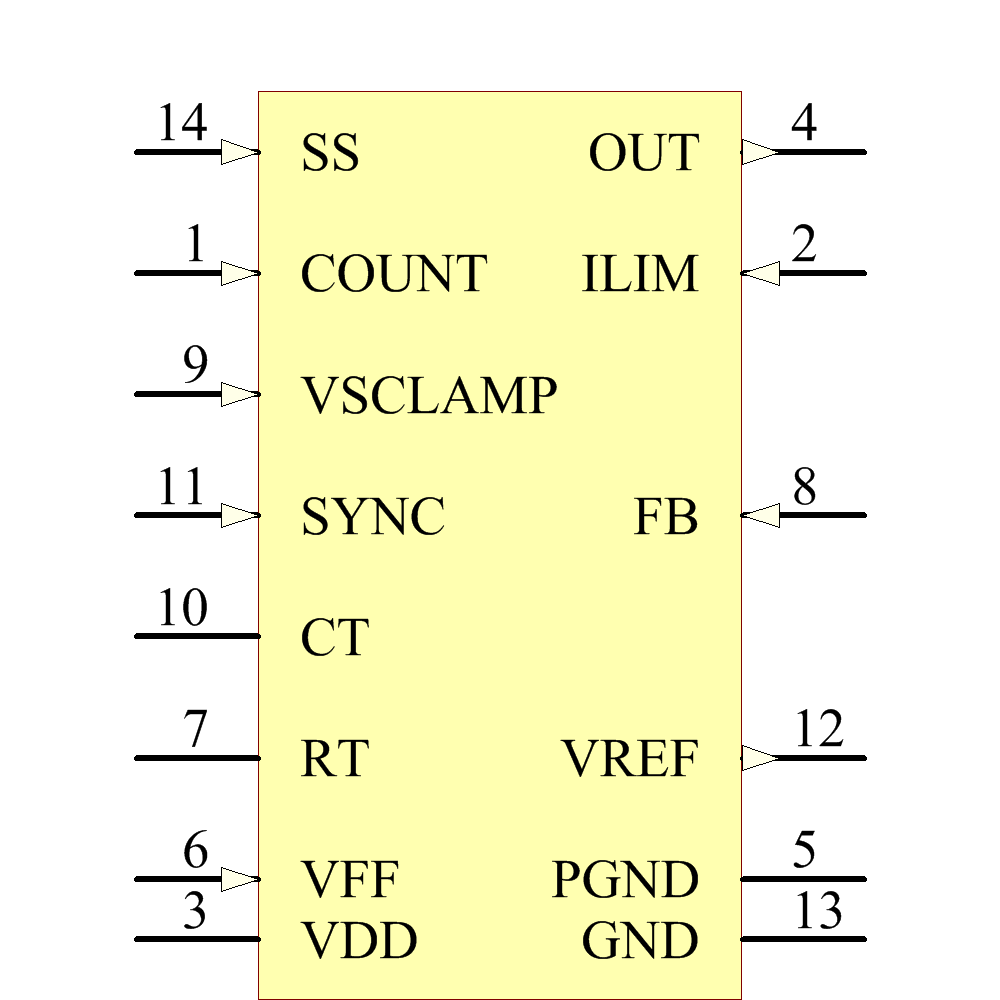

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Semtech | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 87
|
$ | 13.52 | 10.27 | 7.60 | 6.43 | 6.43 | 6.43 | ||
