UCC25701PWTR - Texas Instruments

Advanced Voltage Mode Pulse Width Modulator 14-TSSOP -40 to 85

Technical Details

Case/Package	TSSOP
Duty Cycle	100%
Fall Time	20ns
Frequency	700kHz
Lead Free	Contains Lead
Max Duty Cycle	99%
Max Frequency	700kHz
Max Operating Temperature	85°C
Max Supply Voltage	15V
Min Operating Temperature	-40°C
Number of Outputs	1
Number of Pins	14
Output Voltage	400mV
Packaging	Tape & Reel (TR)
Radiation Hardening	No
Rise Time	20ns
RoHS	Compliant
Switching Frequency	700kHz
Topology	Boost, Flyback

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

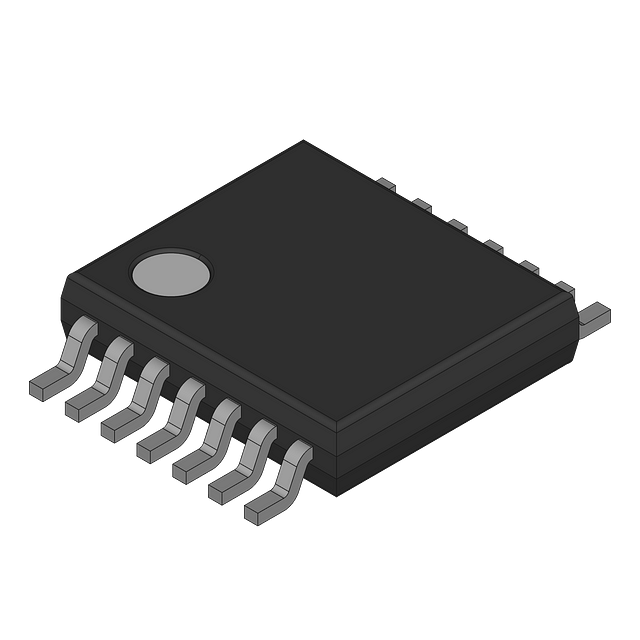

Texas Instruments UCC25701PWTR | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Rochester Electronics

Lifecycle Status Indicator

Unknown

Symbol

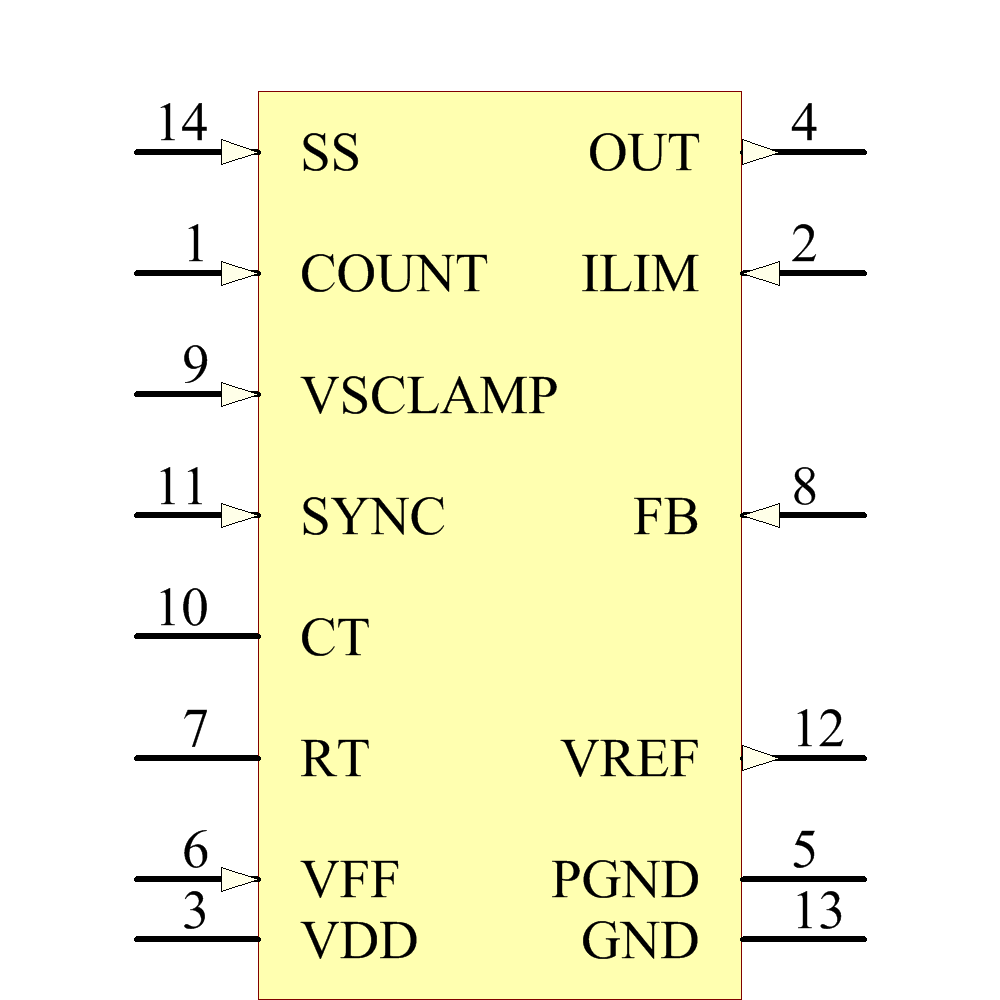

UCC25701PWTR Symbol - Texas Instruments

UCC25701PWTR Symbol - Texas Instruments

UCC25701PWTR Symbol - Texas Instruments

UCC25701PWTR Symbol - Texas Instruments

‹ ›

Footprint

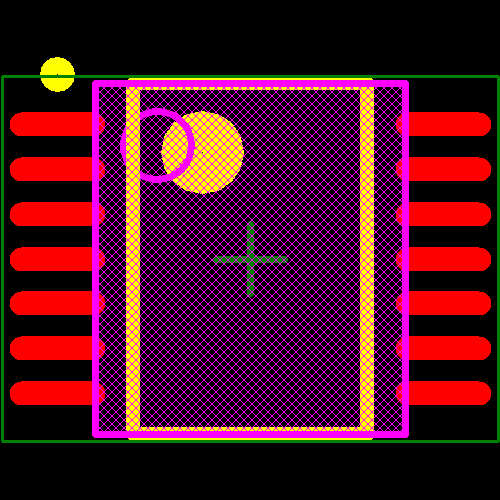

UCC25701PWTR Footprint - Texas Instruments

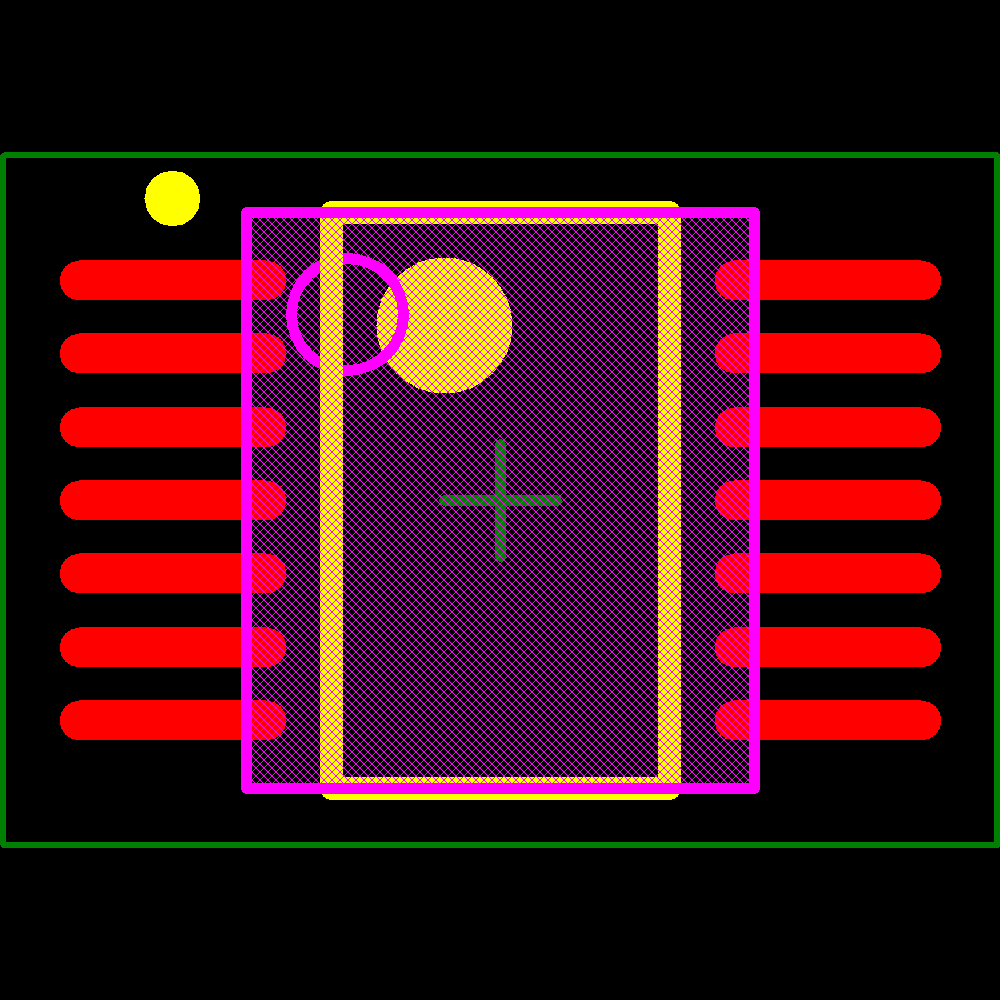

UCC25701PWTR Footprint - Texas Instruments

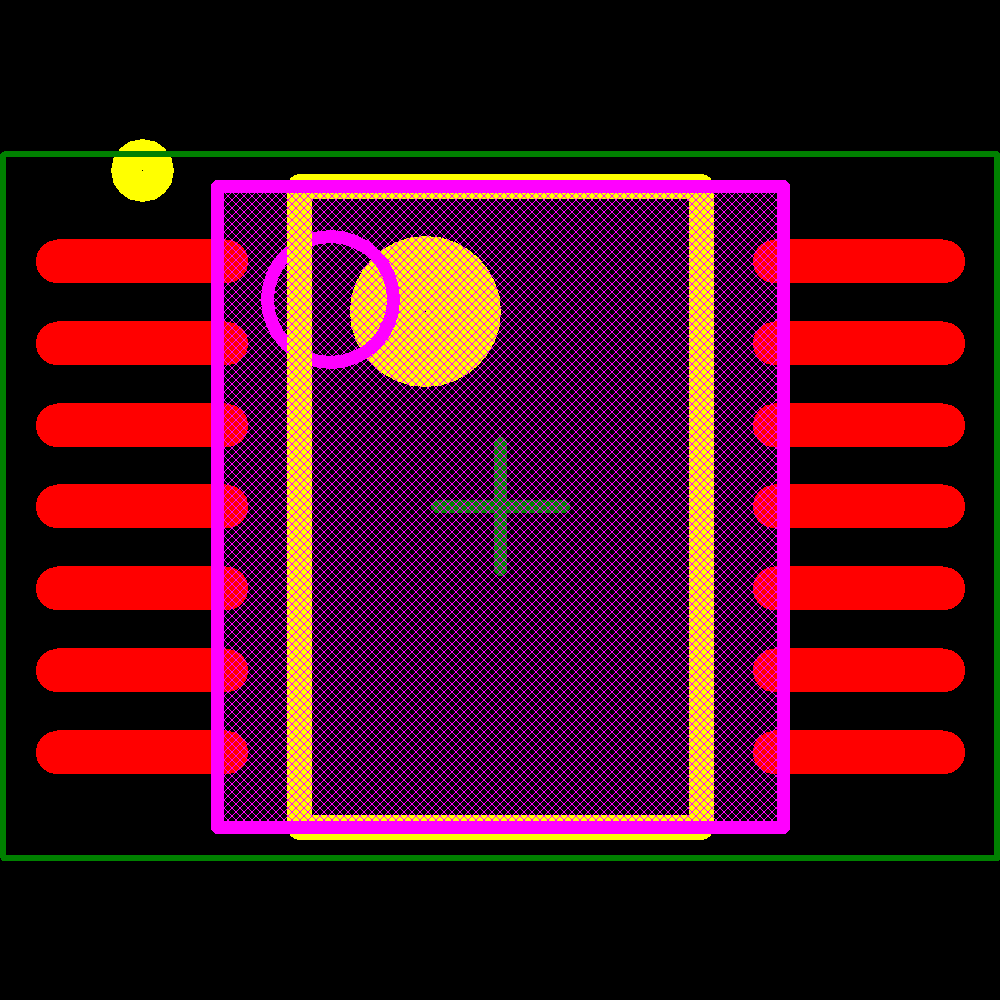

UCC25701PWTR Footprint - Texas Instruments
