Technical Details
| Case/Package | DIP |
| Height | 4.45mm |
| Height - Seated (Max) | 4.45mm |
| Length | 19.25mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 85°C |
| Max Output Current | 370mA |
| Max Supply Current | 700µA |
| Max Supply Voltage | 24V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 0V |
| Number of Circuits | 1 |
| Number of Pins | 16 |
| Number of Terminals | 16 |
| Number of Transmitters | 7 |
| Power Dissipation | 760mW |
| RoHS | Compliant |
| Terminal Pitch | 2.54mm |
| Width | 7.62mm |
Compliance
RoHS : Unconfirmed

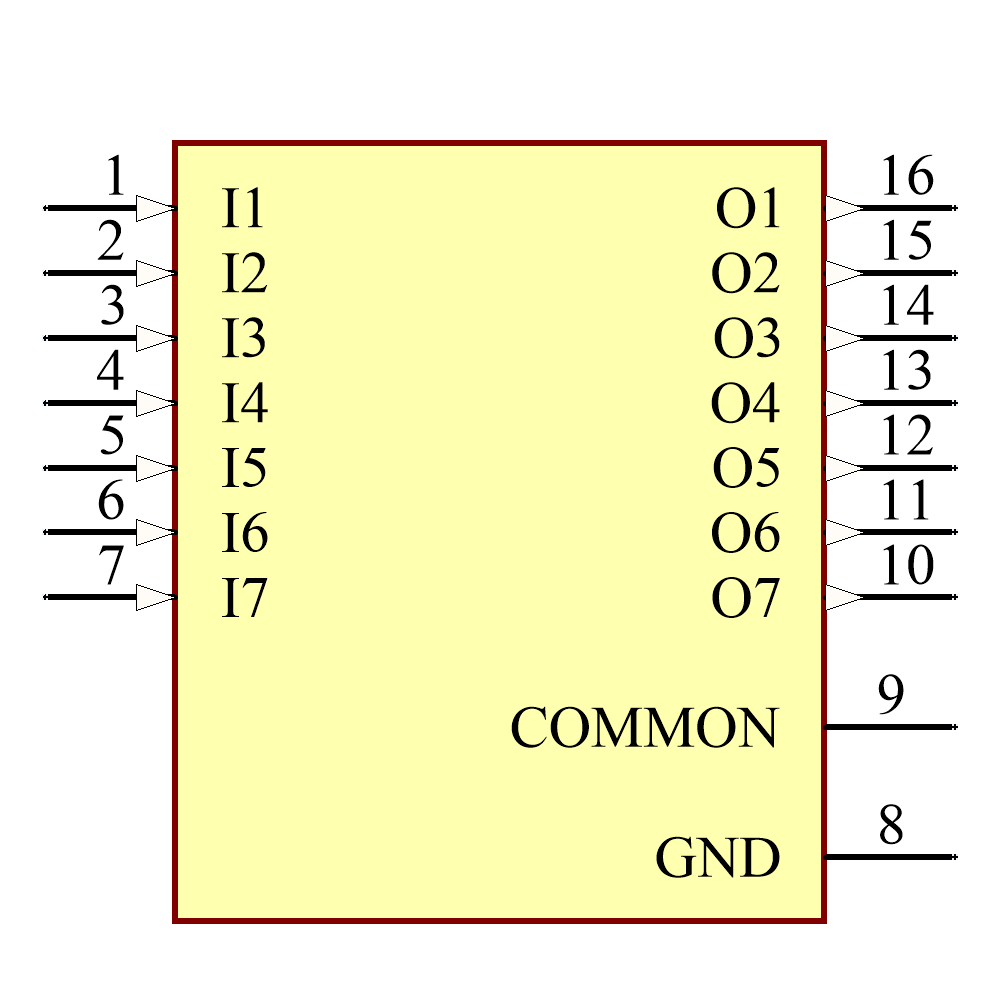

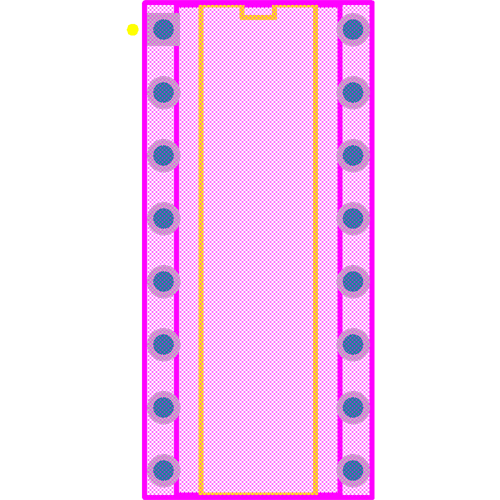

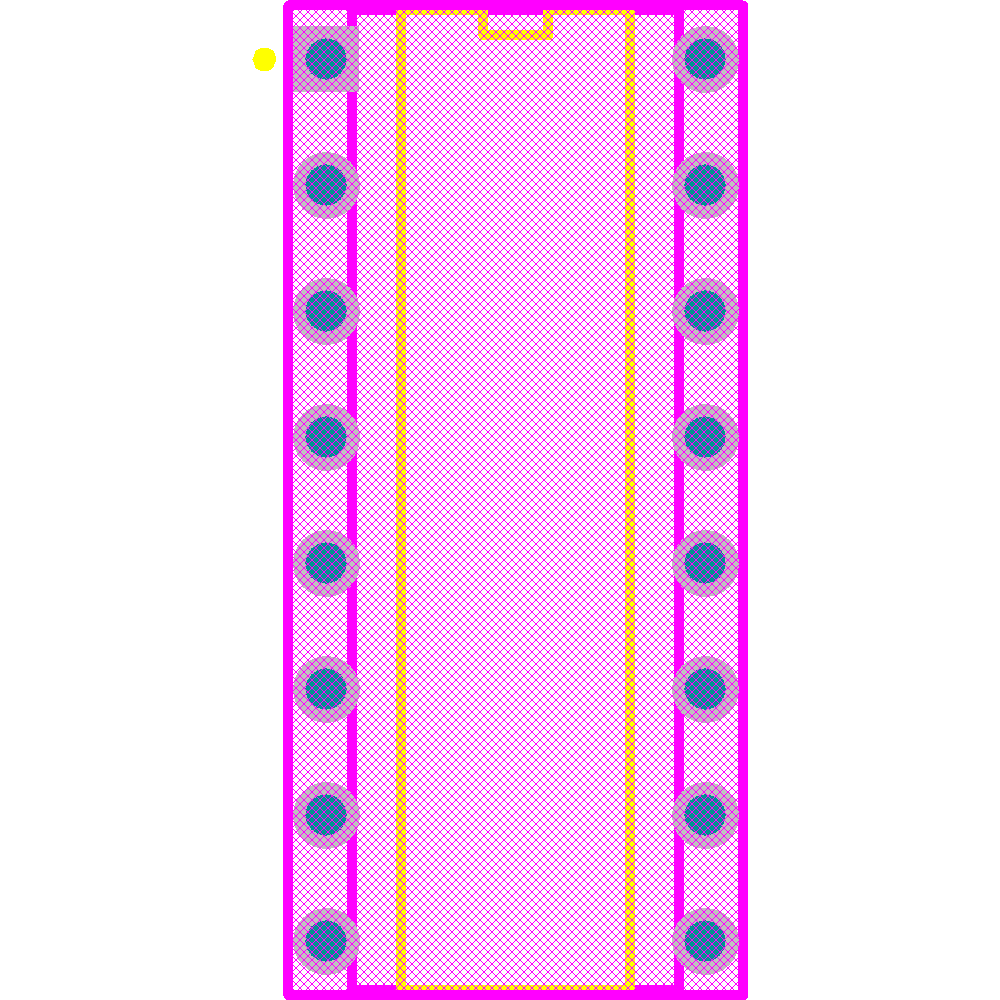

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Toshiba | Obsolete | ||
| STMicroelectronics | Production | ||
| Toshiba | Unknown | ||
| onsemi | Obsolete | ||
| Toshiba | Obsolete | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Production | ||
| Toshiba | Obsolete | ||
| Toshiba | Obsolete | ||
| Toshiba | Unknown |
