TPA3004D2PHPG4 - Texas Instruments
Audio Amp Speaker 2-CH Stereo 12W Class-D 48-Pin HTQFP EP Tray
Technical Details
| Amplifier Type | POWER |

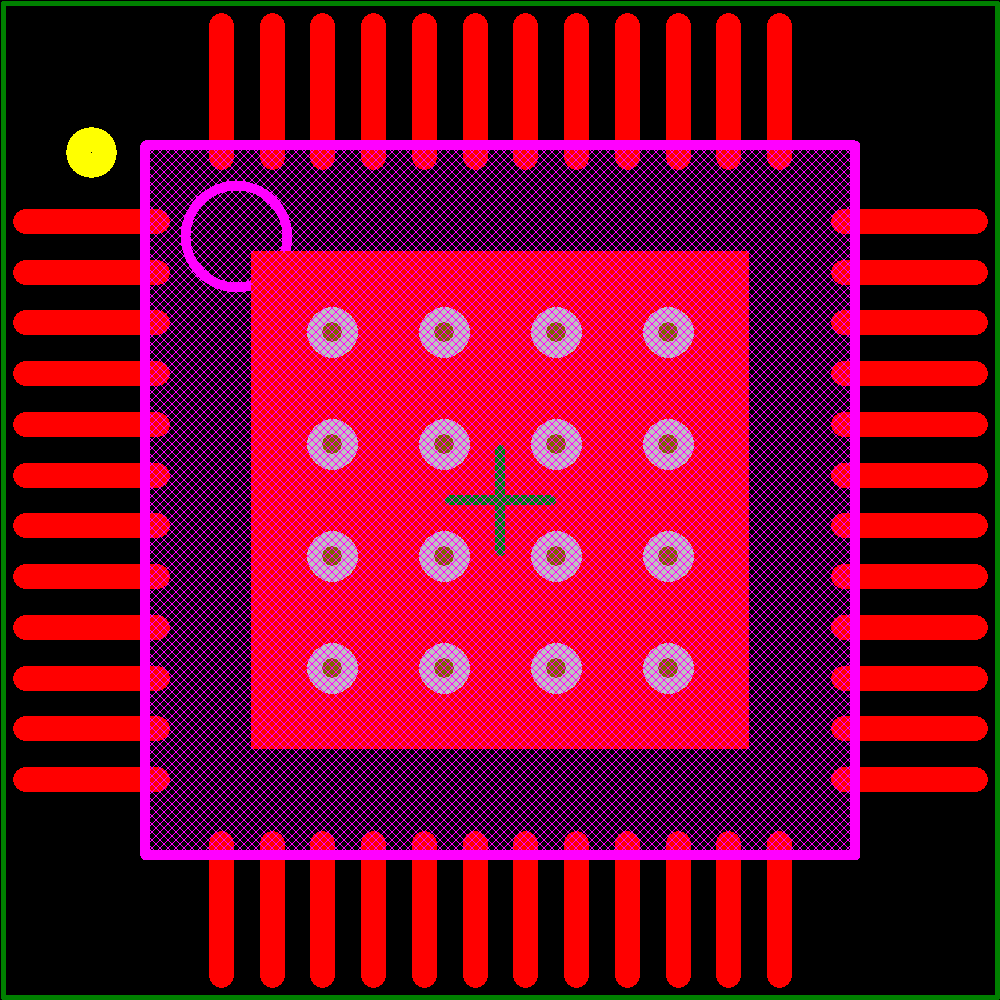

| Case/Package | HTQFP |
| Lead Free | Lead Free |
| Load Impedance | 4R |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 12W |
| Max Power Dissipation | 4.3W |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 8.5V |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Pins | 48 |
| Operating Supply Voltage | 15V |
| Output Power | 12W |
| Package Quantity | 250 |
| Packaging | Tray |
| Power Dissipation | 4.3W |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TPA3004D2 |
| Supply Current | 28.5mA |
| Supply Type | Single |
| Termination | SMD/SMT |
| Weight | 0.004744oz |
Compliance
RoHS : Compliant
Radiation Hardening : No
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Not Recommended for New Design | ||
| Texas Instruments | Volume Production | ||
| Texas Instruments | Volume Production | ||
| Wurth Electronics | Volume Production | ||
| Texas Instruments | Volume Production | ||
| Texas Instruments | Volume Production | ||
| Texas Instruments | Volume Production | ||
| Texas Instruments | Volume Production | ||
| Texas Instruments | Volume Production | ||
| Texas Instruments | Volume Production |
