Technical Details
| Case/Package | SMA |
| Depth | 6.1mm |
| Efficiency | 71% |
| Height - Seated (Max) | 10.45mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Isolation | Isolated |
| Isolation Voltage | 3000Vrms |
| Lead Free | Lead Free |
| Length | 19.5mm |
| Lifecycle Status | Production |
| Max Input Voltage | 26.4V |
| Max Operating Temperature | 85°C |
| Max Output Current | 200mA |
| Max Output Power | 1W |
| Max Output Voltage | 5.15V |
| Max Switching Frequency | 120kHz |
| Min Input Voltage | 21.6V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 4.85V |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Nominal Output Voltage | 5V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 4 |
| Number of Terminals | 5 |
| Output Current | 200mA |
| Output Power | 1W |
| Output Voltage | 5V |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Weight | 2.1g |
| Width | 10.2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

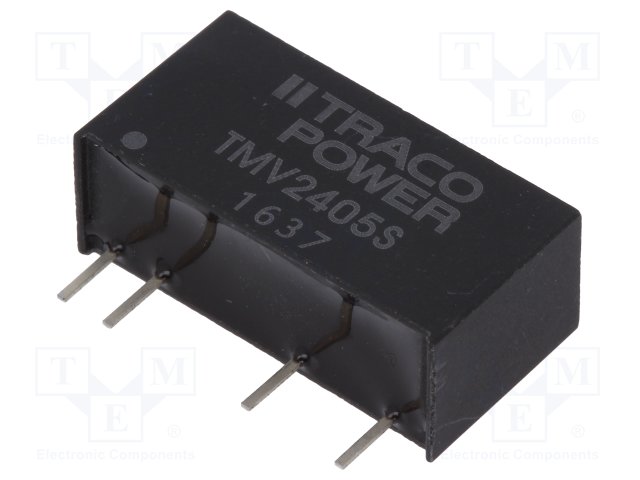

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Traco Power | Production | ||
| Traco Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Murata Power Solutions | Production | ||
| Recom Power | Production | ||
| Recom Power | Production | ||
| Recom Power | Production |
