L091S222LF - TT Electronics
L09 Series 2.2 kOhm 8 Leads Bussed 2% Thick Film Low Profile Resistor Network
Technical Details
| Case/Package | SIP |
| China RoHS | Non-Compliant |
| Circuit Type | Bussed |
| Composition | Thick Film |
| Depth | 2.5mm |
| Height | 5.08mm |
| Lead Free | Lead Free |
| Lead Length | 3.56mm |
| Length | 22.86mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Number of Circuits | 1 |
| Number of Elements | 8 |
| Number of Pins | 9 |
| Number of Resistors | 8 |
| Number of Terminals | 9 |
| Packaging | Bulk |
| Power Dissipation | 125mW |
| Power Rating | 125mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 2.2kΩ |
| RoHS | Compliant |
| Schedule B | 8533210075, 8533210075|8533210075|8533210075|8533210075|8533210075 |
| Temperature Coefficient | 100ppm/°C |
| Terminal Pitch | 2.54mm |
| Termination | DIP |
| Tolerance | 2% |
| Voltage Rating | 100V |
| Width | 2.5mm |
| Working Voltage | 100V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

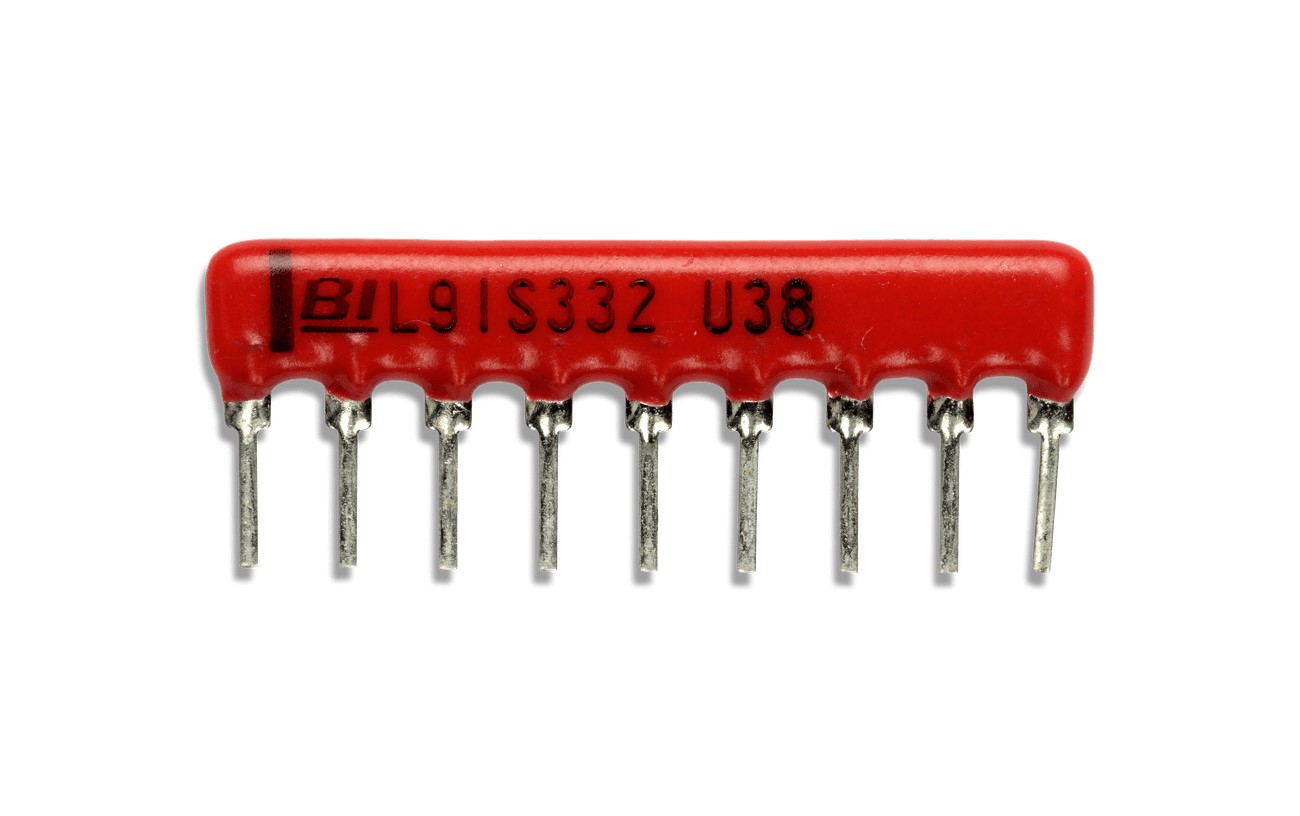

Images
