1.5KE51CA-E3/54 - Vishay
TVS Diode, Transzorb, TRANSZORB 1.5KE Series, Bidirectional, 43.6 V, 70.1 V, DO-201, 2 Pins
Technical Details
| Breakdown Voltage | 51.05V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 70.1V |
| Contact Plating | Tin |
| Diameter | 5.3mm |
| Direction | Bidirectional |
| Element Configuration | Single |
| ESD Protection | No |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 9.4996mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 53.6V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 6.5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 21.4A |
| Min Breakdown Voltage | 48.5V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 43.6V |
| Packaging | Cut Tape |
| Peak Pulse Current | 21.4A |
| Peak Pulse Power | 1.5kW |
| Peak Reverse Current | 1µA |
| Polarity | Bidirectional |
| Power Dissipation | 1.5kW |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 48.5V |
| Reverse Standoff Voltage | 43.6V |
| RoHS | Compliant |
| Schedule B | 8541100080 |
| Termination | Axial |
| Test Current | 1mA |
| Working Voltage | 3.5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

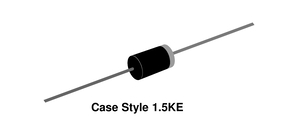

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Obsolete | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| onsemi | Obsolete | ||
| Semikron | Unknown | ||
| Taiwan Semiconductor | Production | ||
| Diodes Inc. | Production | ||
| Rectron | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production |
