Technical Details
| Breakdown Voltage | 8.2V |
| Case/Package | Axial |
| China RoHS | Non-Compliant |
| Clamping Voltage | 12.1V |
| Contact Plating | Tin |
| Diameter | 5.3mm |
| Direction | Bidirectional |
| Element Configuration | Single |
| ESD Protection | No |
| Height | 5.3mm |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 9.4996mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 8.61V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 6.5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 13.3A |
| Min Breakdown Voltage | 7.79V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 7.02V |
| Peak Pulse Current | 13.3A |
| Peak Pulse Power | 1.5kW |
| Peak Reverse Current | 200µA |
| Polarity | Bidirectional |
| Power Dissipation | 1.5kW |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 7.79V |
| Reverse Standoff Voltage | 7.02V |
| RoHS | Compliant |
| Termination | Axial |
| Test Current | 1mA |
| Width | 5.3mm |
| Working Voltage | 3.5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

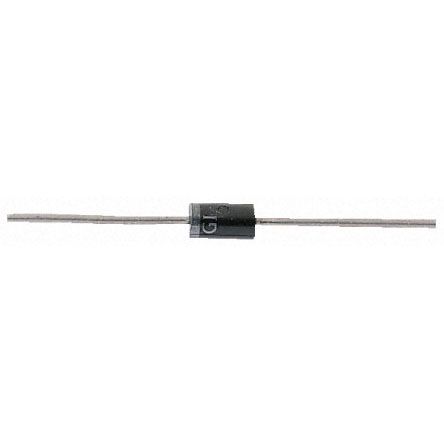

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| onsemi | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Littelfuse | Production | ||
| Diodes Inc. | Production | ||
| Littelfuse | Obsolete | ||
| Vishay | Production | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Semikron | Unknown |
