195D336X9025R2T - Vishay
Surface Mount Tantalum Capacitor, 33 uF, 25 V, ± 10%, -55 °C, 125 °C, 2423 [6260-38 Metric]
Technical Details
| Capacitance | 33µF |
| Case/Package | 2824 |
| Case Code (Imperial) | 2824 |
| Case Code (Metric) | 7260 |
| China RoHS | Compliant |
| Country of Origin | Israel |
| Depth | 6mm |
| Dissipation Factor | 6% |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Features | General Purpose |
| Height | 3.5mm |
| Height - Seated (Max) | 3.81mm |
| Harmonized Tariff Schedule (HTS) Code | 8532.21.00.50 |
| Introduction Date | 2001-08-30 |
| Leakage Current | 8.3µA |
| Length | 7.2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Polarity | Polar |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 25V |
| Voltage Rating (DC) | 25V |
| Weight | 867.013466mg |
| Width | 6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

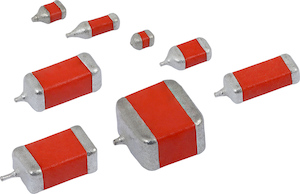

Images
