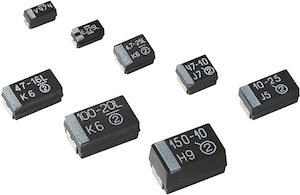

593D227X0010D2TE3 - Vishay
Surface Mount Tantalum Capacitor, 220 uF, 10 V, ± 20%, -55 °C, 125 °C, 2917 [7343-31 Metric]
Technical Details
| Capacitance | 220µF |
| Case/Package | 7343-31 |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| China RoHS | Compliant |
| Country of Origin | Israel, Mainland China |
| Depth | 4.3mm |
| Dissipation Factor | 8% |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ESR (Equivalent Series Resistance) | 125mΩ |
| Features | General Purpose |
| Height | 2.8mm |
| Height - Seated (Max) | 3.0988mm |
| Harmonized Tariff Schedule (HTS) Code | 8532.21.00.50 |
| Introduction Date | 2004-12-10 |
| Lead Free | Lead Free |
| Leakage Current | 22µA |
| Length | 7.3mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| REACH SVHC | Yes |
| Ripple Current | 440mA |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 10V |
| Voltage Rating (DC) | 10V |
| Weight | 670.01263mg |
| Width | 4.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

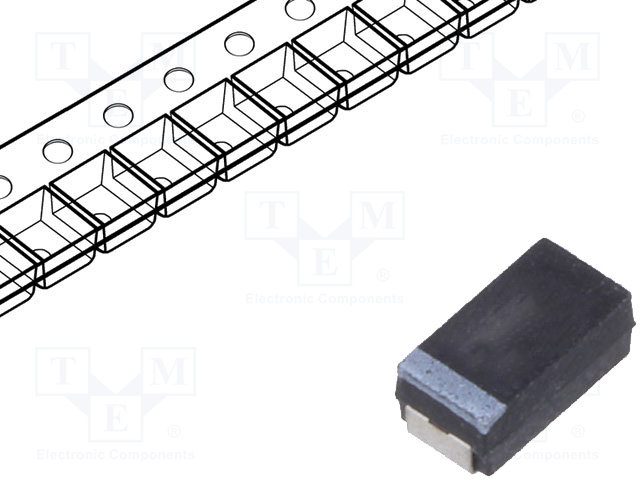

TME
