AZ23C24-E3-18 - Vishay
AZ23 Series 24 V 300 mW ±5% Zener Diode Array 1 Pair Common Anode - SOT-23-3
Technical Details
| Case/Package | SOT-23-3 |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Common Anode |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 70Ω |
| Introduction Date | 2013-04-29 |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of Terminals | 3 |
| Peak Reverse Current | 50nA |
| Polarity | Unidirectional |
| Power Dissipation | 300mW |
| REACH SVHC | Yes |
| Reference Voltage | 24V |
| Reverse Standoff Voltage | 18V |
| RoHS | Compliant |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Weight | 8.788352mg |
| Zener Current | 5mA |
| Zener Voltage | 24V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

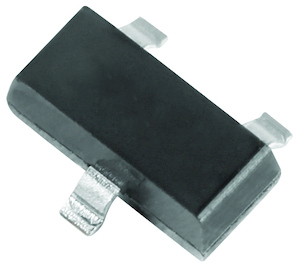

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Panjit | Production | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Production | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Panjit | Production | ||
| Vishay | Production | ||
| Vishay | Obsolete | ||
| Taiwan Semiconductor | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 0.0959 | |||||||
| EBV Elektronik |
EU: 0
|
$ | ||||||||
| Avnet |
US: 0
|
$ | 0.0372 | |||||||
| Mouser |
US: 0
|
$ | 0.31 | 0.21 | 0.21 | 0.133 | 0.064 | 0.038 | ||
| Newark |
US: 0
|
$ | 0.062 | |||||||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Chipsmall Limited |
CN: 2297677
|
$ | 0.1173 | 0.0782 | 0.0782 | 0.0469 | 0.0391 | 0.0391 | ||
| XingHuan International |
CN: 60000
|
$ | ||||||||
