AZ23C9V1-HE3-08 - Vishay
Zener Diode Sot235%, 9.1V, 0.3W, Dual, Common Anode |Vishay AZ23C9V1-HE3-08
Technical Details
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Common Anode |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 10Ω |
| Introduction Date | 2013-04-29 |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | Unidirectional |
| Power Dissipation | 300mW |
| REACH SVHC | Yes |
| Reference Voltage | 9.1V |
| RoHS | Compliant |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Weight | 8.788352mg |
| Zener Current | 5mA |
| Zener Voltage | 9.1V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

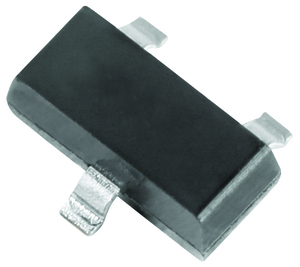

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Diodes Inc. | Obsolete | ||
| Vishay | Obsolete | ||
| MCC | Production | ||
| Diodes Inc. | Obsolete | ||
| Vishay | Obsolete | ||
| Diodes Inc. | Production | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production |
