Technical Details
| China RoHS | Non-Compliant |
| Contact Plating | Silver |
| Element Configuration | Single |
| Forward Voltage | 1V |
| Height | 5.6mm |
| Length | 9.86mm |
| Lifecycle Status | Production |
| Max Forward Surge Current (Ifsm) | 45A |
| Max Operating Temperature | 125°C |
| Max Output Current | 900mA |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Leakage Current | 10µA |
| Max Surge Current | 45A |
| Min Breakdown Voltage | 200V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 4 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 45A |
| Peak Reverse Current | 10µA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 200V |
| RoHS | Compliant |
| Width | 8.84mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

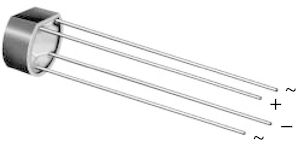

Images
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Microchip USA |
US: 2062
|
$ | 1.9412 | 1.9412 | ||||||
| Component Stockers USA |
US: 1805
|
$ | 0.76 | 0.66 | 0.66 | 0.46 | 0.32 | 0.32 | ||
| XingHuan International |
CN: 60000
|
$ | ||||||||
