DG212BDY-T1-E3 - Vishay

VISHAY DG212BDY-T1-E3 Analogue Switch, SPST, 4 Channels, 85 ohm, 4.5V to 25V, SOIC, 16 Pins

Technical Details

Case/Package	SOP
China RoHS	Compliant
Country of Origin	Israel
Drain to Source Resistance	85Ω
Height	1.75mm
Height - Seated (Max)	1.75mm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Introduction Date	1994-01-01
Lead Free	Lead Free
Length	9.9mm
Lifecycle Status	Production
Max Dual Supply Voltage	22V
Max Operating Temperature	85°C
Max Power Dissipation	640mW
Max Supply Current	10µA
Max Supply Voltage	22V
Min Dual Supply Voltage	4.5V
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Mount	Surface Mount
Nominal Supply Current	50µA
Number of Channels	1
Number of Circuits	4
Number of Inputs	4
Number of Outputs	4
Number of Pins	16
Number of Terminals	16
On-State Resistance	85Ω
Operating Supply Current	10µA
Operating Supply Voltage	15V
Packaging	Cut Tape
Power Dissipation	640mW
Radiation Hardening	No
REACH SVHC	Yes
Resistance	85Ω
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|85
Supply Type	Dual, Single
Temperature Grade	Industrial
Terminal Pitch	1.27mm
Throw Configuration	SPST
Turn-Off Delay Time	200ns
Turn-On Delay Time	300ns
Weight	547.485991mg
Width	3.9mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

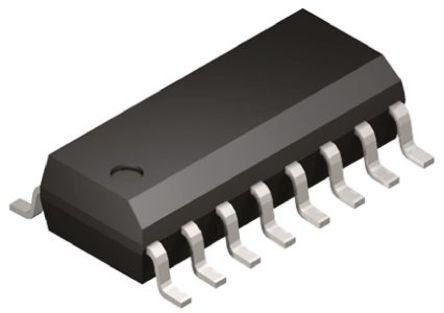

Vishay DG212BDY-T1-E3 | RS
