DG408DJ-E3 - Vishay
Integrated Circuits for Multiplexer Switches; VISHAY; DG408DJ-E3; 16; 1; 13 V - 44 V; 8
Technical Details
| Case/Package | DIP |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Drain to Source Resistance | 100Ω |
| Dual Supply Voltage | 15V |
| Height | 5.08mm |
| Height - Seated (Max) | 5.08mm |
| High Level Output Current | 30mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1990-01-01 |
| Lead Free | Lead Free |
| Length | 20.13mm |
| Lifecycle Status | Obsolete |
| Logic Function | Multiplexer |
| Max Dual Supply Voltage | 20V |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 450mW |
| Max Supply Current | 2mA |
| Max Supply Voltage | 20V |
| Min Dual Supply Voltage | 5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 5V |
| Mount | Through Hole |
| Nominal Supply Current | 10µA |
| Number of Channels | 8 |
| Number of Circuits | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Number of Terminals | 16 |
| On-State Resistance | 100Ω |
| Operating Supply Current | 1µA |
| Operating Supply Voltage | 15V |
| Power Dissipation | 450mW |
| Propagation Delay | 160ns |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Supply Type | Dual, Single |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Turn-Off Delay Time | 150ns |
| Turn-On Delay Time | 150ns |
| Weight | 1.627801g |
| Width | 7.62mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

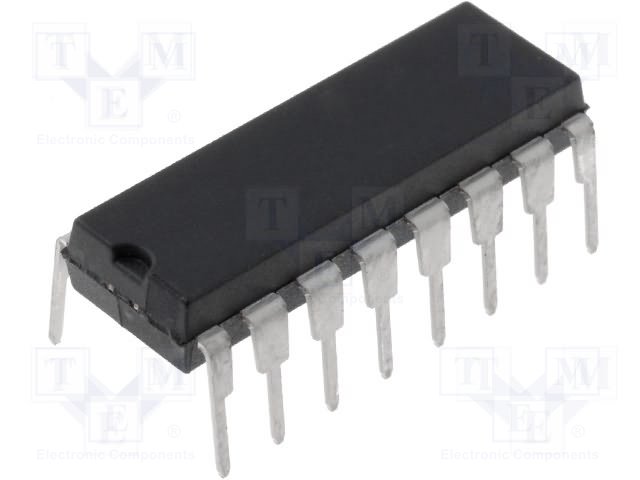

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Intersil | Obsolete | ||
| Renesas | Production | ||
| Renesas | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete |
