DG408DY-T1-E3 - Vishay
DG408 Series 20 V 8-Channel High-Performance CMOS Analog Multiplexer - SOIC-16
Technical Details
| Case/Package | SOP |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Country of Origin | Israel |
| Drain to Source Resistance | 100Ω |
| Dual Supply Voltage | 15V |
| Height | 1.75mm |
| Height - Seated (Max) | 1.75mm |
| High Level Output Current | 30mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Introduction Date | 1990-01-01 |
| Lead Free | Lead Free |
| Length | 9.9mm |
| Lifecycle Status | Production |
| Logic Function | Multiplexer |
| Max Dual Supply Voltage | 20V |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 600mW |
| Max Supply Current | 2mA |
| Max Supply Voltage | 20V |
| Min Dual Supply Voltage | 5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 5V |
| Mount | Surface Mount |
| Nominal Supply Current | 10µA |
| Number of Channels | 8 |
| Number of Circuits | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Number of Terminals | 16 |
| On-State Resistance | 100Ω |
| Operating Supply Current | 1µA |
| Operating Supply Voltage | 15V |
| Power Dissipation | 600mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 100Ω |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Supply Type | Dual, Single |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Throw Configuration | 8PST |
| Turn-Off Delay Time | 150ns |
| Turn-On Delay Time | 150ns |
| Weight | 665.986997mg |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

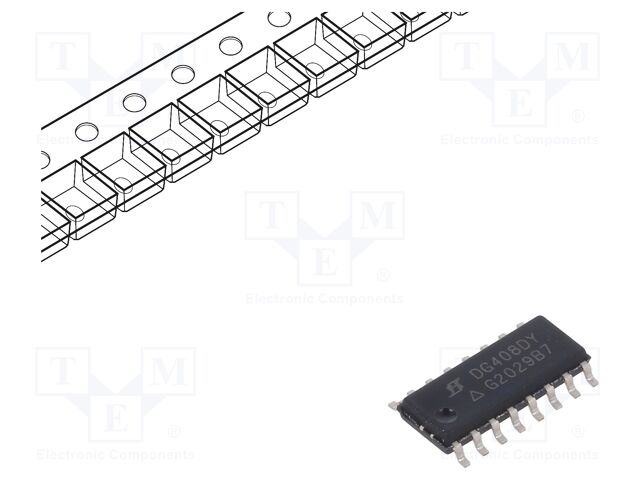

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Renesas | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Renesas | Obsolete | ||
| Vishay | Production | ||
| Harris | Obsolete | ||
| Analog Devices | Production | ||
| Renesas | Production | ||
| Renesas | Production |
