Technical Details
| Breakdown Voltage | 10V |
| Capacitance | 160pF |
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Clamping Voltage | 15.2V |
| Composition | Zener |
| Depth | 1.43mm |
| Direction | Bidirectional |
| Element Configuration | Single |
| Leakage Current | 5µA |
| Length | 3.1mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Surge Current | 18A |
| Min Breakdown Voltage | 9V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Number of Unidirectional Channels | 2 |
| Operating Supply Voltage | 8V |
| Peak Pulse Current | 18A |
| Peak Pulse Power | 345W |
| Polarity | Bidirectional, Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 8V |
| RoHS | Compliant |
| Schedule B | 8536300000 |
| Termination | SMD/SMT |
| Weight | 8.788352mg |
| Working Voltage | 8V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

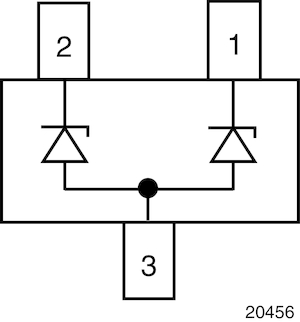

Images
