Discrete Semiconductors > Diodes > Schottky Diodes

MBR1645-E3/45 - Vishay

Rectifier Diode Schottky 45V 16A 2-Pin(2+Tab) TO-220AC Tube / DIODE SCHOTTKY 45V 16A TO220AC

Technical Details

Average Rectified Current	16A
Case/Package	TO-220-2
China RoHS	Non-Compliant
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Forward Current	16A
Forward Voltage	630mV
Height	9.02mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.80
Introduction Date	2001-04-30
Lead Free	Lead Free
Length	10.66mm
Lifecycle Status	Production
Max Forward Surge Current (Ifsm)	150A
Max Operating Temperature	150°C
Max Output Current	16A
Max Repetitive Reverse Voltage (Vrrm)	45V
Max Reverse Leakage Current	200µA
Max Reverse Voltage (DC)	45V
Max Surge Current	150A
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Peak Non-Repetitive Surge Current	150A
Peak Reverse Current	200µA
Radiation Hardening	No
Reverse Standoff Voltage	45V
RoHS	Compliant
Schedule B	8541100080, 8541100080\|8541100080\|8541100080\|8541100080\|8541100080
Width	4.82mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

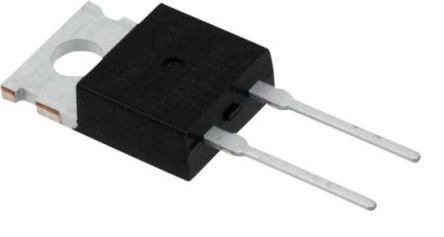

Vishay MBR1645-E3/45 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Taiwan Semiconductor	MBR1645	Production
NXP Semiconductors	PBYR1645	Obsolete
onsemi	MBR1645	Obsolete
Vishay	MBR1645-E3	Obsolete
Diodes Inc.	MBR1645	Obsolete
Vishay	VS-MBR1645-M3	Production
Taiwan Semiconductor	MBR1645 C0	Production
Taiwan Semiconductor	MBR1645 C0G	Production
NTE Electronics	NTE6081	Obsolete
onsemi	MBR1645G	Production

See more alternatives See less alternatives
