MPMT2001AT1 - Vishay
Array/Network Resistor, Divider, Thin Film, 0.2W, 100V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1206
Technical Details
| Case/Package | SOT-23 |

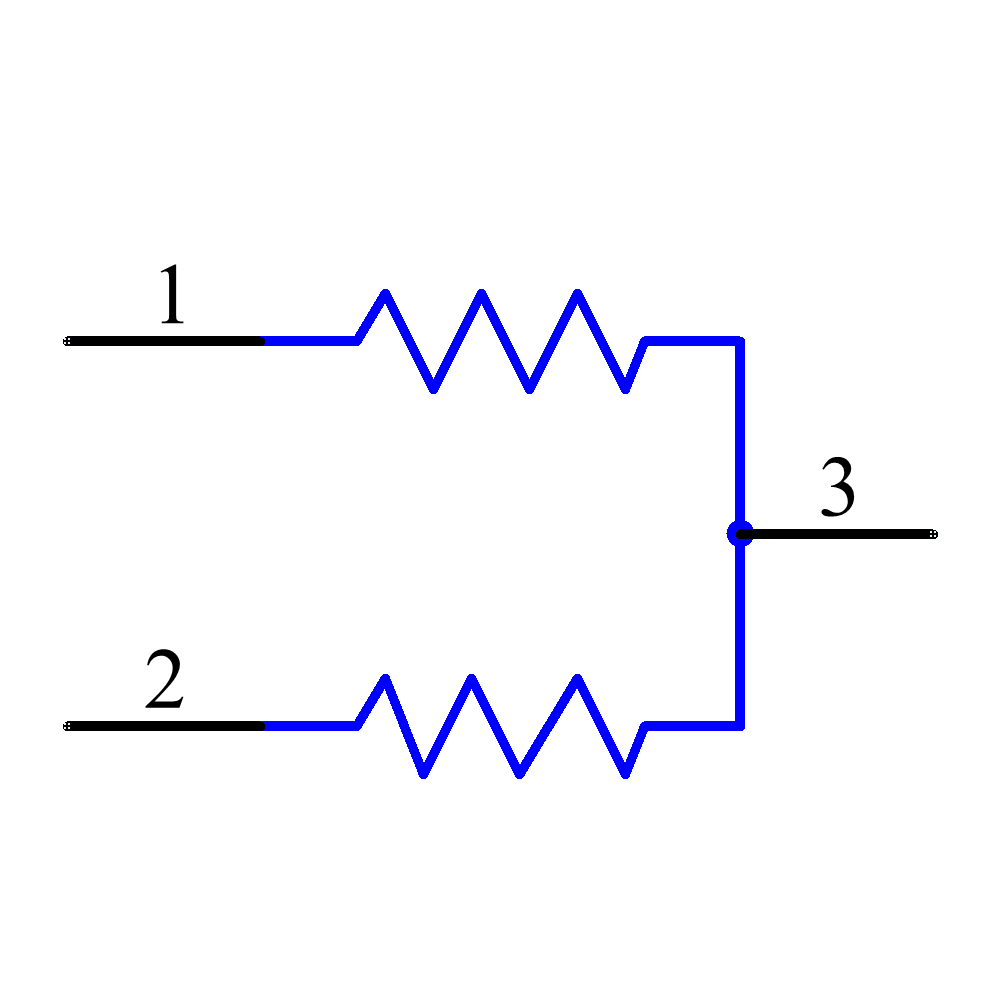

| Circuit Type | Voltage Divider |
| Composition | Thin Film |
| Depth | 2.5mm |
| Height | 1.02mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Length | 3.05mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Resistors | 2 |
| Number of Terminals | 3 |
| Power Dissipation | 200mW |
| Power Per Element | 100mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 1kΩ |
| RoHS | Compliant |
| Schedule B | 8533210025, 8533210025|8533210025, 8533210025|8533210025|8533210025, 8533210025|8533210025|8533210025|8533210025 |
| Temperature Coefficient | 25ppm/°C |
| Termination | SMD/SMT |
| Tolerance | 0.1% |
| Voltage Rating | 100V |
| Voltage Rating (DC) | 100V |
| Width | 1.4mm |
| Working Voltage | 100V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

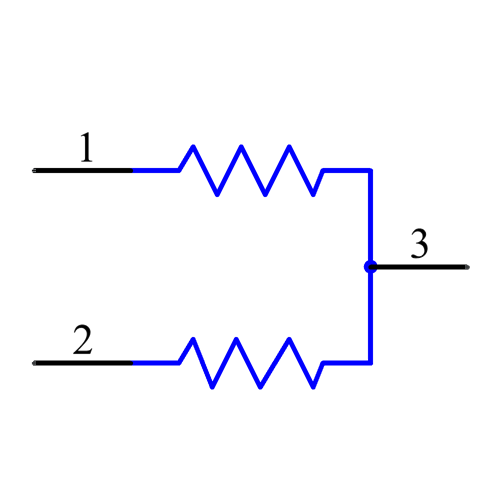

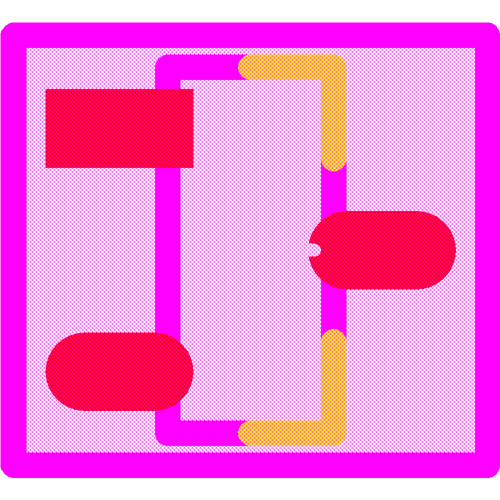

Images
