ORNTA1002AT1 - Vishay
Res Thin Film NET 10K Ohm 0.1% 0.4W ±25ppm/C ISOL Molded 8-Pin SOIC Gull Wing SMD Medical T/R
Technical Details
| Case/Package | DIP |
| China RoHS | Compliant |
| Circuit Type | Isolated |
| Composition | Thin Film |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.73mm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.20 |
| Introduction Date | 2006-06-07 |
| Lead Pitch | 1.27mm |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Power Dissipation | 400mW |
| Power Per Element | 100mW |
| Power Rating | 400mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 10kΩ |
| RoHS | Compliant |
| Schedule B | 8533210025, 8533210025|8533210025, 8533210025|8533210025|8533210025, 8533210025|8533210025|8533210025|8533210025 |
| Temperature Coefficient | 25ppm/°C |
| Termination | SMD/SMT |
| Tolerance | 0.1% |
| Voltage Rating | 100V |
| Voltage Rating (DC) | 100V |
| Width | 3.9mm |
| Working Voltage | 100V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

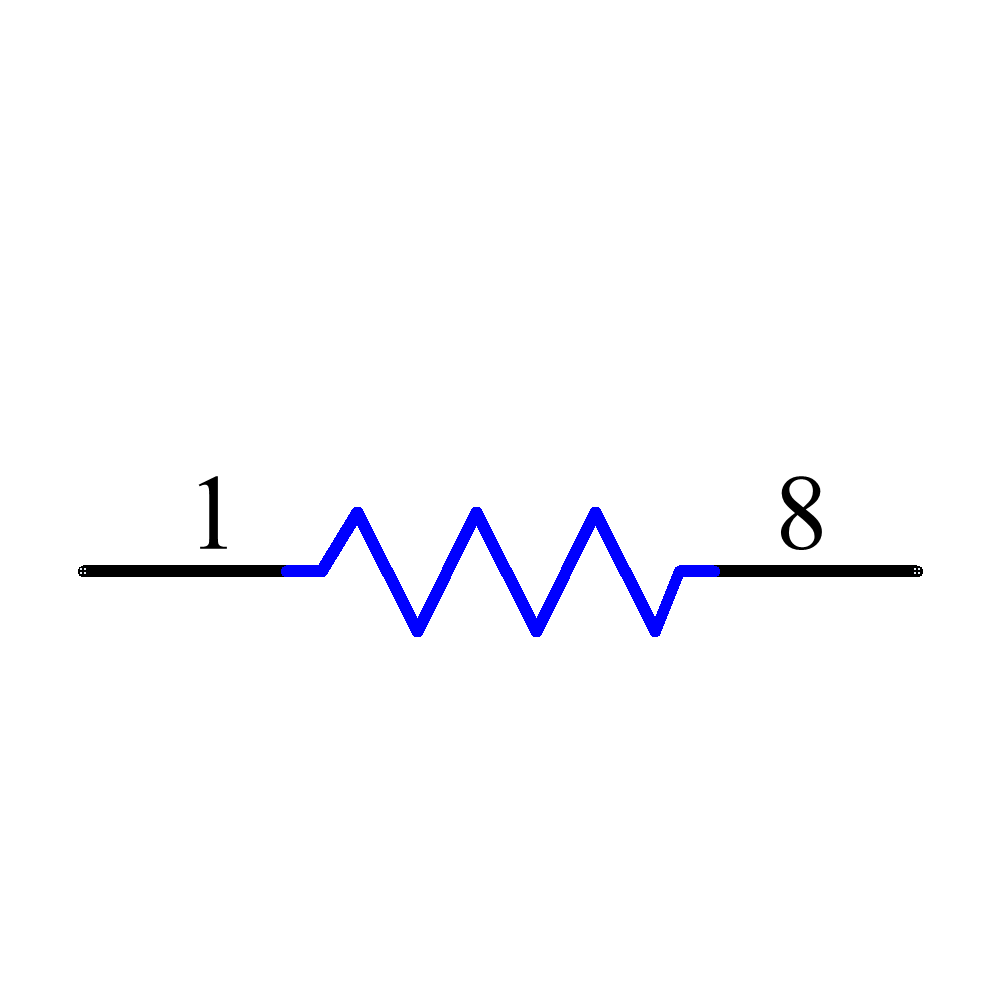

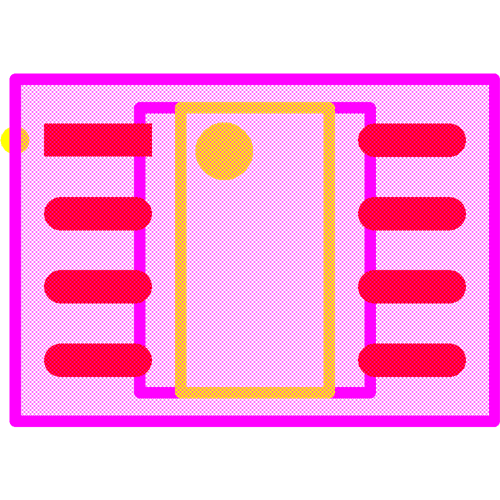

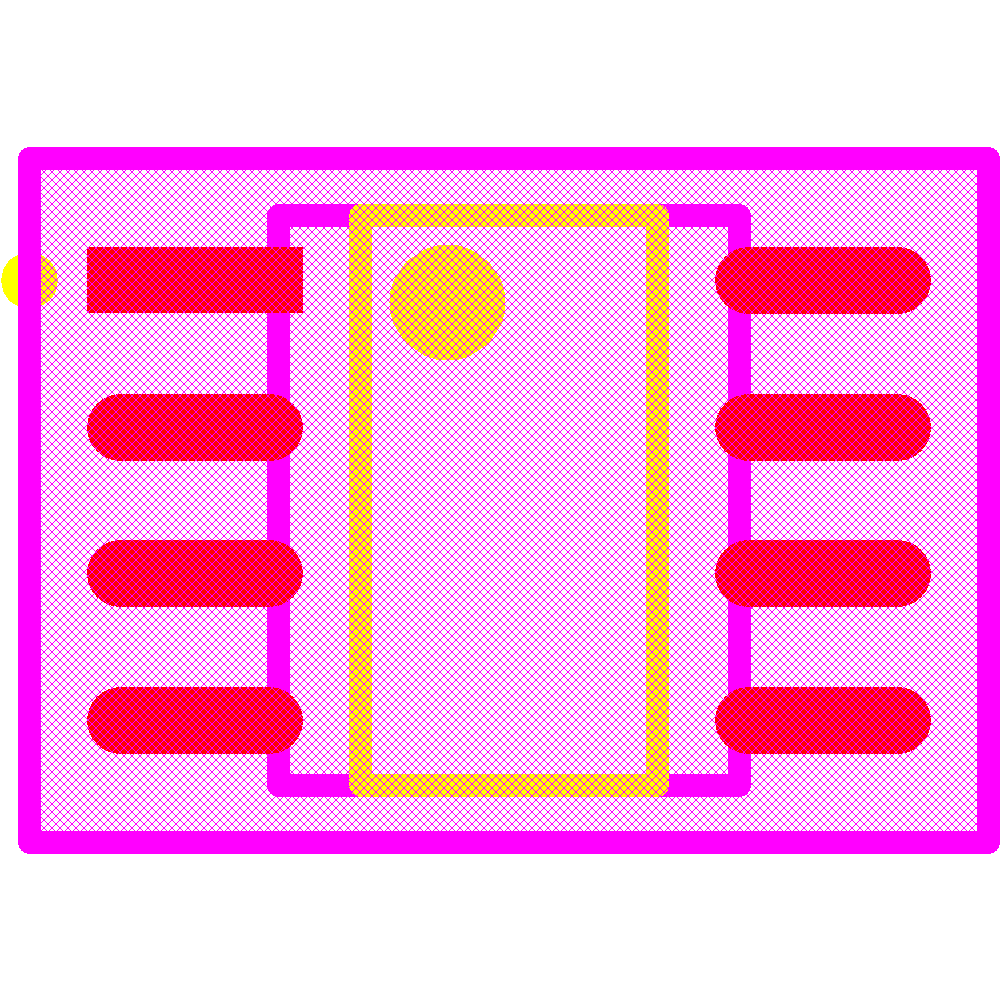

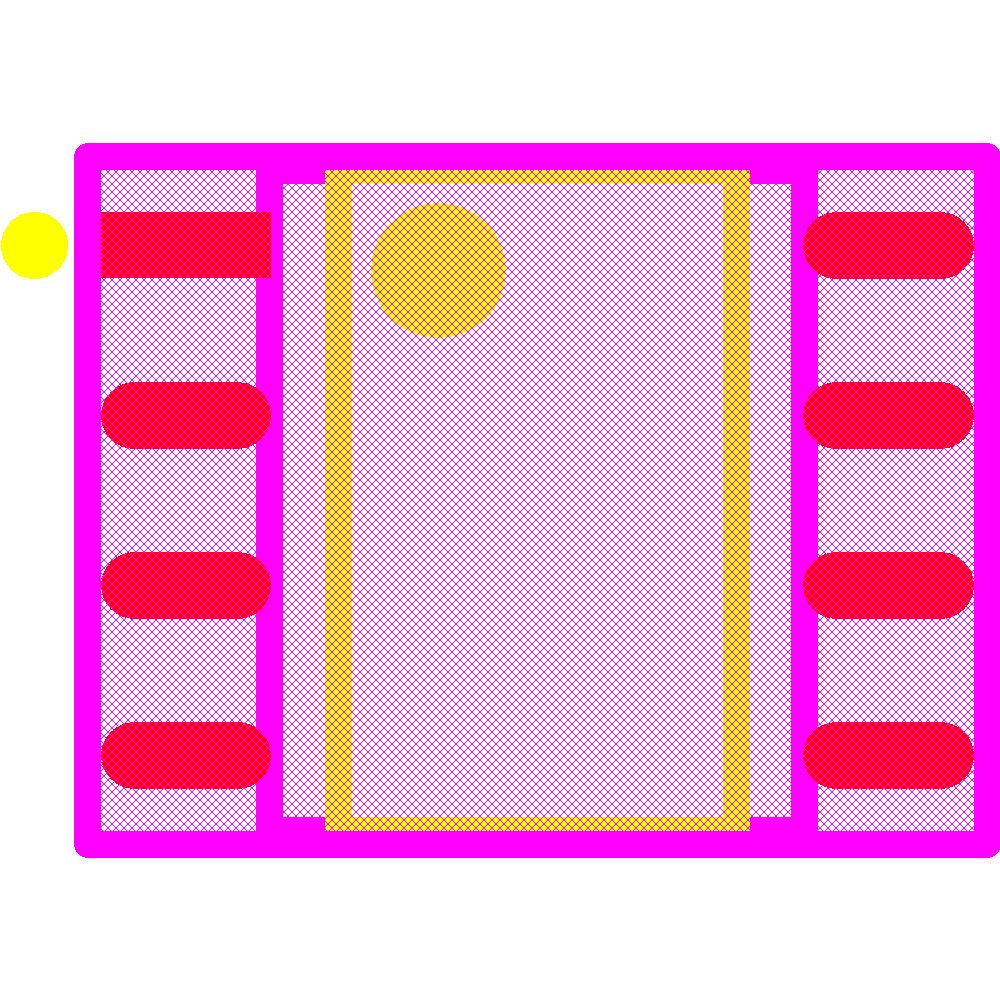

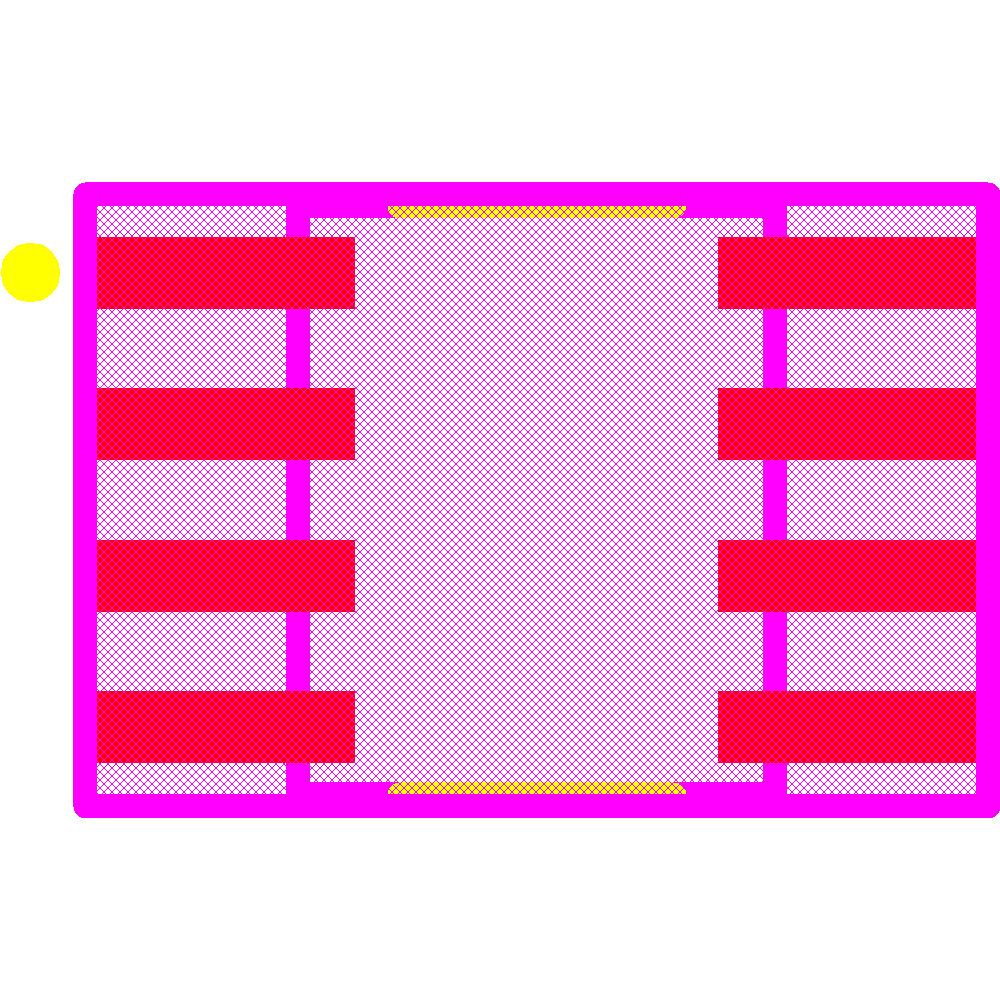

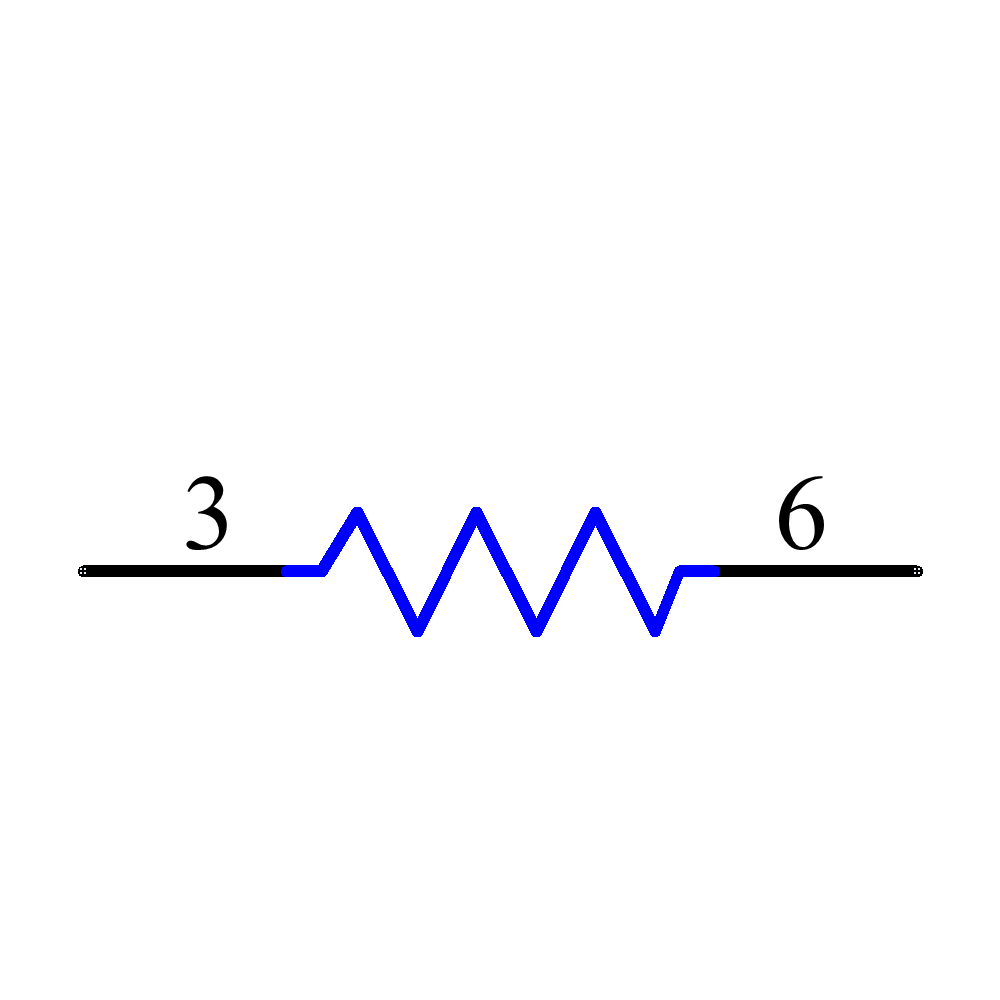

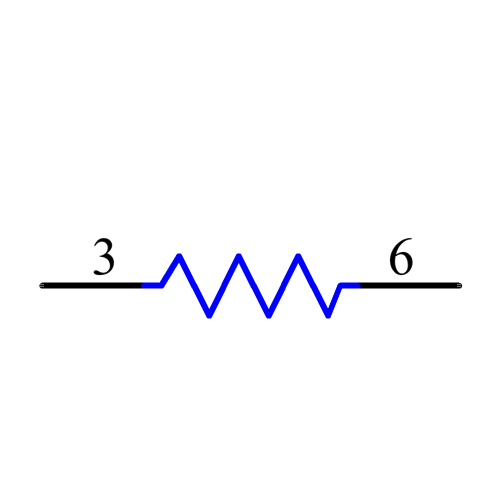

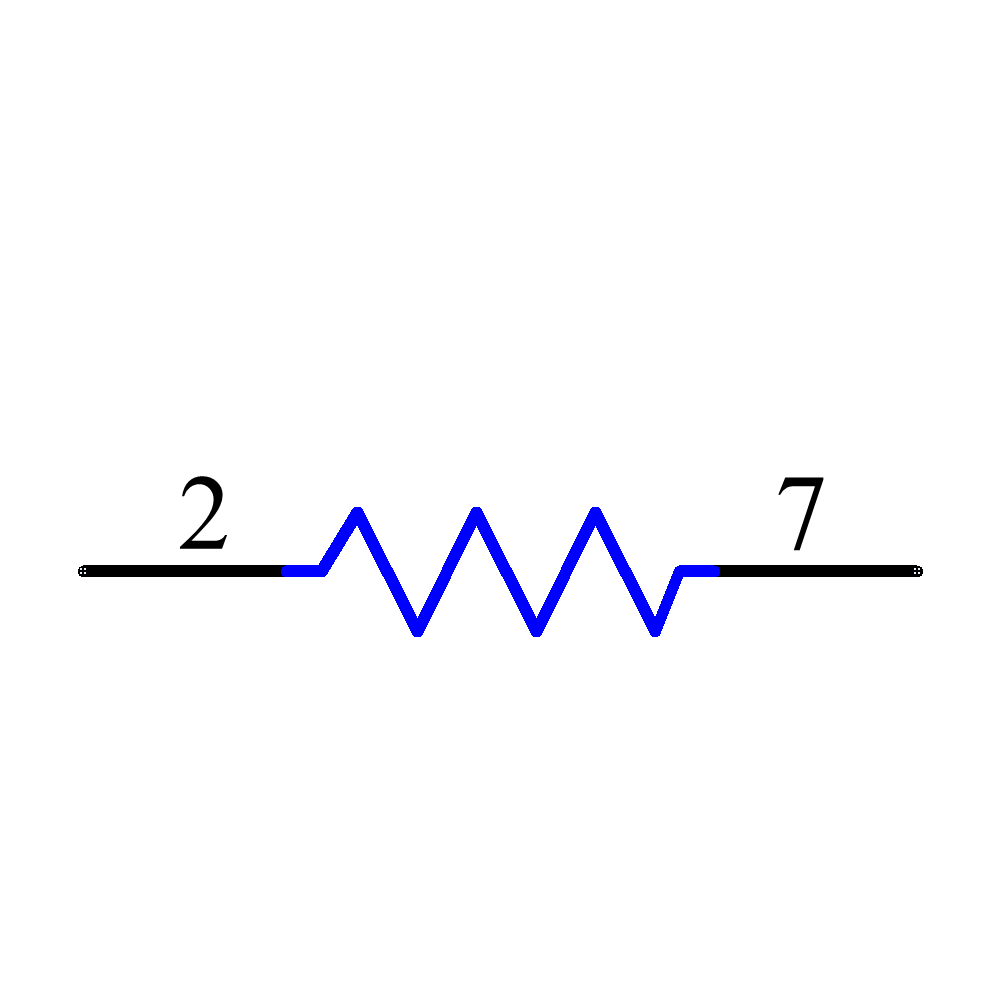

Images
