Technical Details
| Breakdown Voltage | 24V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 33.2V |
| Composition | Zener |
| Direction | Unidirectional |
| Element Configuration | Single |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 25.2V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 1.5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 12A |
| Min Breakdown Voltage | 22.8V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 20.5V |
| Peak Pulse Current | 12A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 22.8V |
| Reverse Standoff Voltage | 20.5V |
| RoHS | Compliant |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

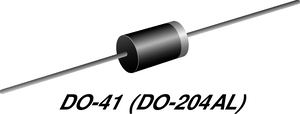

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diotec | Production | ||
| Taiwan Semiconductor | Unknown | ||
| Vishay | Obsolete | ||
| Littelfuse | Production | ||
| Rectron | Production | ||
| Vishay | Production | ||
| Panjit | Production | ||
| Panjit | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 0.2025 | |||||||
| Avnet |
US: 0
|
$ | 0.1236 | |||||||
| TTI Europe |
DE: 0
|
$ | 0.1935 | |||||||
| Mouser |
US: 1107
|
$ | 0.71 | 0.433 | 0.433 | 0.278 | 0.19 | 0.138 | ||
| Newark |
US: 0
|
$ | 0.219 | |||||||
