Technical Details
| Breakdown Voltage | 56V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 77V |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2005-12-22 |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 58.8V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 1.5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 5.2A |
| Min Breakdown Voltage | 53.2V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 47.8V |
| Peak Pulse Current | 5.2A |
| Peak Pulse Power | 400W |
| Polarity | Bidirectional |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 53.2V |
| Reverse Standoff Voltage | 47.8V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

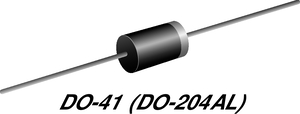

Images
