Technical Details
| Breakdown Voltage | 10V |

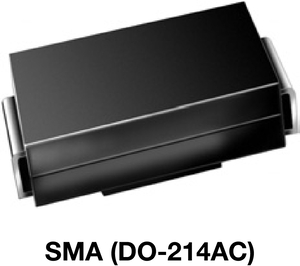

| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 14.5V |
| Composition | Zener |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2002-04-10 |
| Leakage Current | 10µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 10.5V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 10µA |
| Max Surge Current | 40A |
| Min Breakdown Voltage | 9.5V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 8.55V |
| Packaging | Tape & Reel |
| Peak Pulse Current | 27.6A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 9.5V |
| Reverse Standoff Voltage | 8.55V |
| RoHS | Compliant |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
Images
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Win Source |
CN: 53100
|
$ | 1.7163 | 1.4079 | 1.1446 | 1.1446 | ||||
| XingHuan International |
CN: 60000
|
$ | ||||||||
| Sourcengine |
US: 46
|
$ | ||||||||
