Circuit Protection > TVS Diodes

P6KE51AHE3/54 - Vishay

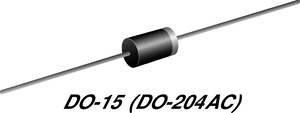

Diode TVS Single Uni-Dir 43.6V 600W 2-Pin DO-15 T/R

Breakdown Voltage	51V
Clamping Voltage	70.1V
Composition	Zener
Direction	Unidirectional
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Introduction Date	2003-01-02
Lifecycle Status	Production
Max Breakdown Voltage	53.6V
Max Operating Temperature	175°C
Max Power Dissipation	5W
Max Reverse Leakage Current	1µA
Max Surge Current	100A
Min Breakdown Voltage	48.5V
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Number of Unidirectional Channels	1
Operating Supply Voltage	43.6V
Peak Pulse Current	8.6A
Peak Pulse Power	600W
Polarity	Unidirectional
Power Line Protection	No
REACH SVHC	Yes
Reverse Standoff Voltage	43.6V
RoHS	Compliant
Test Current	1mA

RoHS : Unconfirmed

REACH SVHC : Yes

Production

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Diodes Inc.	P6KE51A-B	Production
Taiwan Semiconductor	P6KE51	Production
Semikron	P6KE51A	Unknown
onsemi	P6KE51ARL	Obsolete
Taiwan Semiconductor	P6KE51A	Production
Vishay	P6KE51A-E3/73	Production
Littelfuse	P6KE51A-B	Production
Vishay	P6KE51A-E3/54	Production
Rectron	P6KE51A-B	Production
Littelfuse	P6KE51A	Production
