P6SMB33A-E3/52 - Vishay

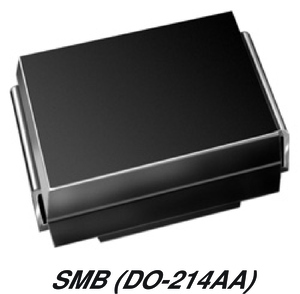

P6SMB Series 12.2 V 13.1A A 600 W Transient Voltage Suppressor - SMB (DO-214AA)
Technical Details
| Breakdown Voltage | 33.05V |
| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Clamping Voltage | 45.7V |
| Composition | Zener |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Voltage | 3.5V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2002-04-10 |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 34.7V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 13.1A |
| Min Breakdown Voltage | 31.4V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 28.2V |
| Peak Pulse Current | 13.1A |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 31.4V |
| Reverse Standoff Voltage | 28.2V |
| RoHS | Compliant |
| Schedule B | 8541100080 |
| Termination | SMD/SMT |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
