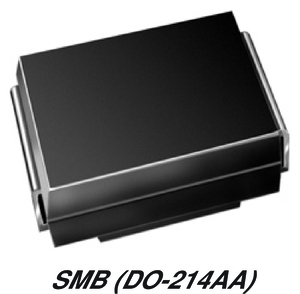

P6SMB43CA-E3/5B - Vishay

Trans Voltage Suppressor Diode, 600W, 36.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA

Breakdown Voltage	43.05V
Case/Package	SMB
China RoHS	Non-Compliant
Clamping Voltage	59.3V
Composition	Zener
Country of Origin	Mainland China, Taiwan
Direction	Bidirectional
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Introduction Date	2002-04-10
Leakage Current	1µA
Lifecycle Status	Production
Max Breakdown Voltage	45.2V
Max Operating Temperature	150°C
Max Power Dissipation	5W
Max Reverse Leakage Current	1µA
Max Surge Current	100A
Min Breakdown Voltage	40.9V
Min Operating Temperature	-65°C
Mount	Surface Mount
Number of Bidirectional Channels	1
Number of Channels	1
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Operating Supply Voltage	36.8V
Peak Pulse Current	10.1A
Peak Pulse Power	600W
Peak Reverse Current	1µA
Polarity	Bidirectional
Power Line Protection	No
Radiation Hardening	No
REACH SVHC	No
Reverse Breakdown Voltage	40.9V
Reverse Standoff Voltage	36.8V
RoHS	Compliant
Termination	SMD/SMT
Test Current	1mA

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Production

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Panjit	P6SMB43CA-R2-00001	Production
Vishay	P6SMB43CAHE3_A/I	Obsolete
Panjit	P6SMB43CA_R2_10001	Production
Littelfuse	TPSMB36CA-VR	Production
Panjit	P6SMB43CA_R1_00001	Production
Fagor	P6SMB43CA	Unknown
Littelfuse	P6SMB43CA	Production
Panjit	P6SMB43CA_R1_10001	Production
Central Semiconductor	P6SMB43CA TR13	Unknown
Vishay	P6SMB43CA-E3/52	Production
