SA33CA-E3/73 - Vishay
Trans Voltage Suppressor Diode, 500W, 33V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC
Technical Details
| Breakdown Voltage | 38.65V |
| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 53.3V |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2002-08-01 |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 40.6V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 9.4A |
| Min Breakdown Voltage | 36.7V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 33V |
| Peak Pulse Current | 9.4A |
| Peak Pulse Power | 500W |
| Polarity | Bidirectional |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 36.7V |
| Reverse Standoff Voltage | 33V |
| RoHS | Compliant |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

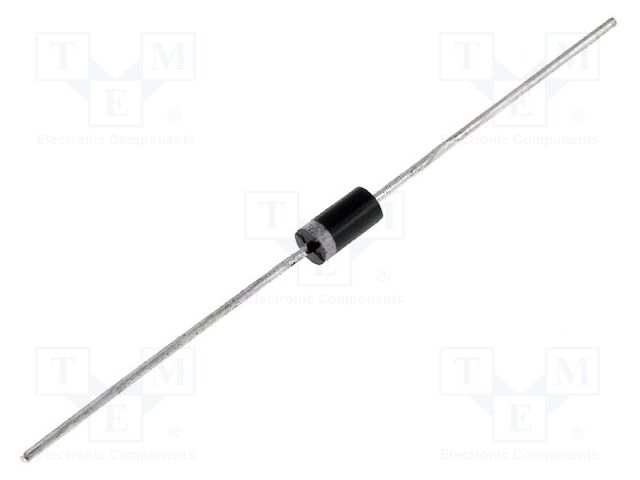

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| World Products | Production | ||
| Vishay | Production | ||
| Vishay | Obsolete | ||
| Littelfuse | Obsolete | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Semtech | Production | ||
| Taiwan Semiconductor | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| TME |
PL: 0
|
$ | 0.2946 | 0.2318 | 0.2046 | 0.1837 | 0.1726 | |||
| Avnet |
US: 0
|
$ | ||||||||
| Arrow Electronics |
US: 0
|
$ | 0.3581 | |||||||
| Mouser |
US: 0
|
$ | 1.08 | 0.67 | 0.67 | 0.438 | 0.306 | 0.234 | ||
