Technical Details
| Ambient Temperature Range High | 100°C |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Collector Emitter Breakdown Voltage | 70V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Current Transfer Ratio | 30% |
| Dark Current | 50nA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 11s |
| Forward Current | 60mA |
| Forward Voltage | 1.25V |
| Height | 4.059mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.80.00 |
| Input Current | 60mA |
| Introduction Date | 1993-01-01 |
| Isolation Voltage | 5300Vrms |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 150mW |
| Min Operating Temperature | -55°C |
| Mount | PCB, Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage | 6V |
| Rise Time | 2s |
| RoHS | Compliant |
| Schedule B | 8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000 |
| Turn-Off Delay Time | 2.3µs |
| Turn-On Delay Time | 3µs |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

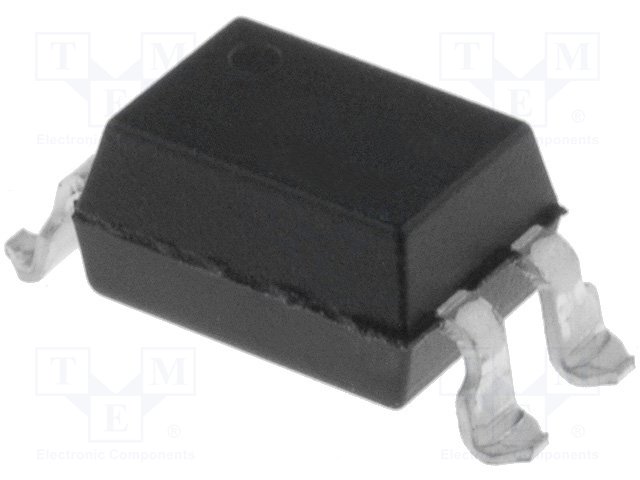

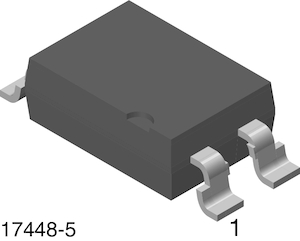

Images
