SFH617A-3X006 - Vishay
Optocoupler, Transistor, 4.47Kv, Dip-4 Rohs Compliant: Yes |Vishay SFH617A-3X006
Technical Details
| Case/Package | PDIP |
| China RoHS | Compliant |
| Collector Emitter Breakdown Voltage | 70V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Current Transfer Ratio | 70% |
| Dark Current | 100nA |
| Fall Time | 14µs |
| Forward Current | 60mA |
| Forward Voltage | 1.65V |
| Isolation Voltage | 5300Vrms |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 110°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 150mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Output Current per Channel | 50mA |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 6V |
| Rise Time | 3µs |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

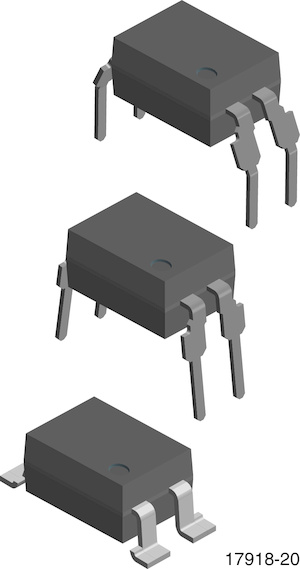

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Toshiba | NRND | ||
| Sharp | Obsolete | ||
| Motorola | Obsolete | ||
| Vishay | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Isocom | Production | ||
| Isocom | Production | ||
| Lite-On | Production |
