SM6T33CA-E3/5B - Vishay
Trans Voltage Suppressor Diode, 600W, 28.2V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA
Technical Details
| Breakdown Voltage | 33V |
| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Clamping Voltage | 59V |
| Country of Origin | Mainland China, Taiwan |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2001-01-01 |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 34.7V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 100A |
| Min Breakdown Voltage | 31.4V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 28.2V |
| Peak Pulse Current | 68A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 31.4V |
| Reverse Standoff Voltage | 28.2V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

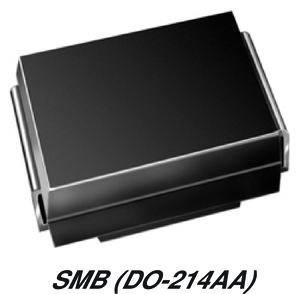

Images
