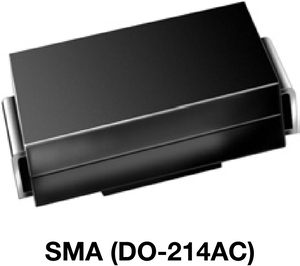

SMAJ100A-E3/5A - Vishay
Trans Voltage Suppressor Diode, 300W, 100V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC
Technical Details
| Breakdown Voltage | 117V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 162V |
| Country of Origin | Mainland China |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Voltage | 3.5V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2000-08-22 |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 123V |
| Max Forward Surge Current (Ifsm) | 40A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 1.9A |
| Min Breakdown Voltage | 111V |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 100V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1.9A |
| Peak Pulse Power | 300W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 111V |
| Reverse Standoff Voltage | 100V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
