Vishay - SMAJ10A-E3/61

SMAJ10A-E3/61 - Vishay

ESD protection diodes / TVS diodes; VISHAY; SMAJ10A-E3/61; 17 V; 23.5 A; 10 V; 11.1 V - 12.3 V

 Datasheets

Technical Details

Breakdown Voltage 11.7V
Case/Package SMA
China RoHS Non-Compliant
Clamping Voltage 17V
Contact Plating Tin
Country of Origin Mainland China
Current 235A
Direction Unidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Forward Voltage 3.5V
Height 2.09mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 2001-01-01
Lead Free Lead Free
Leakage Current 1µA
Length 4.4958mm
Lifecycle Status Production
Max Breakdown Voltage 12.3V
Max Forward Surge Current (Ifsm) 40A
Max Operating Temperature 150°C
Max Power Dissipation 3.3W
Max Reverse Leakage Current 1µA
Max Surge Current 23.5A
Min Breakdown Voltage 11.1V
Min Operating Temperature -55°C
Mount Surface Mount
Number of Channels 1
Number of Elements 1
Number of Pins 2
Number of Terminals 2
Operating Supply Voltage 10V
Packaging Tape and Reel
Peak Pulse Current 23.5A
Peak Pulse Power 400W
Peak Reverse Current 1µA
Polarity Unidirectional
Power Dissipation 400W
Power Rating 400W
Radiation Hardening No
REACH SVHC No
Reverse Breakdown Voltage 11.1V
Reverse Standoff Voltage 10V
RoHS Compliant
Termination SMD/SMT
Test Current 1mA
Voltage 10V
Voltage Rating (DC) 10V
Width 2.79mm
Working Voltage 3.5V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

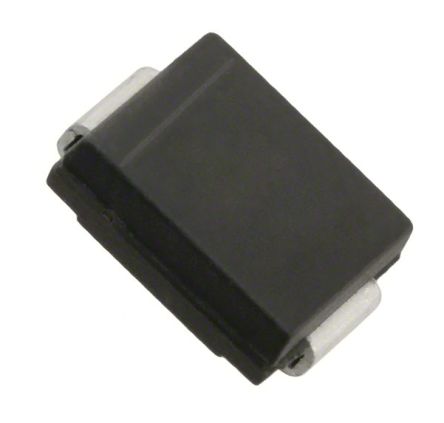

Vishay SMAJ10A-E3/61 | RS

RS

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

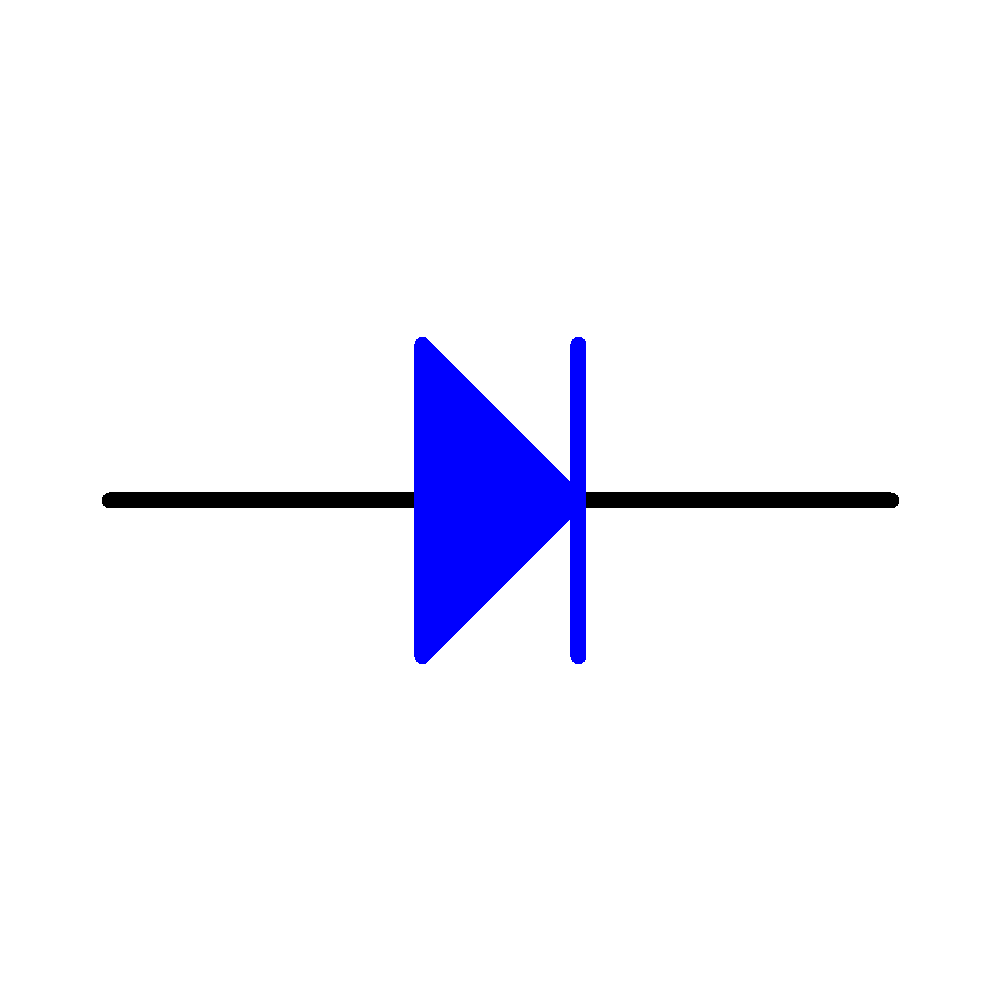

Symbol

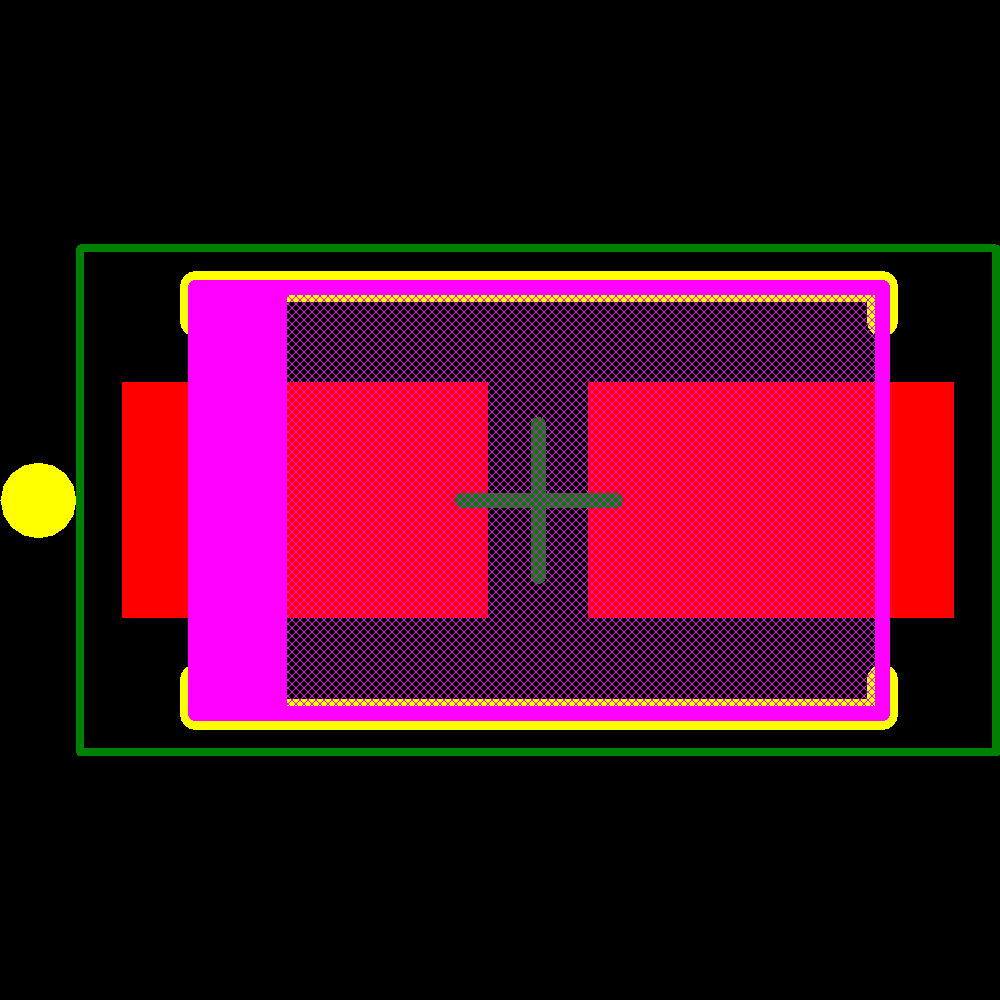

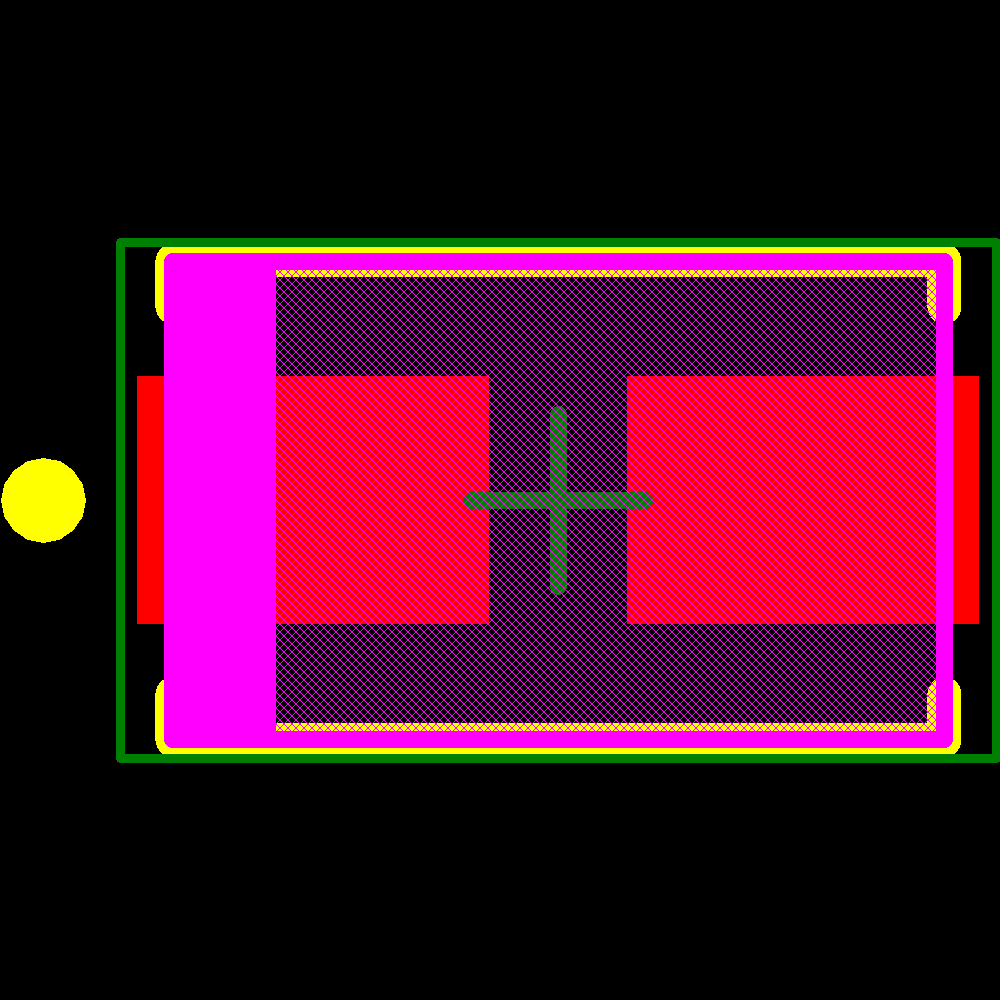

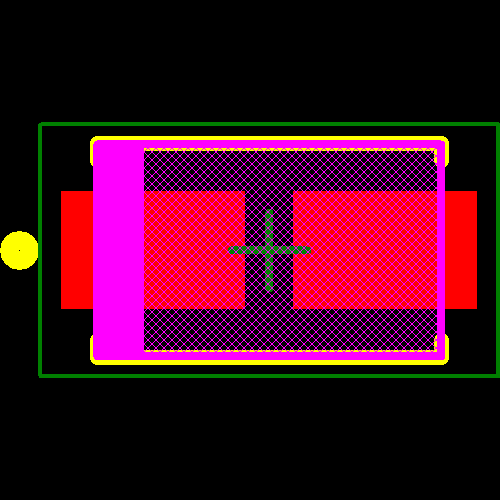

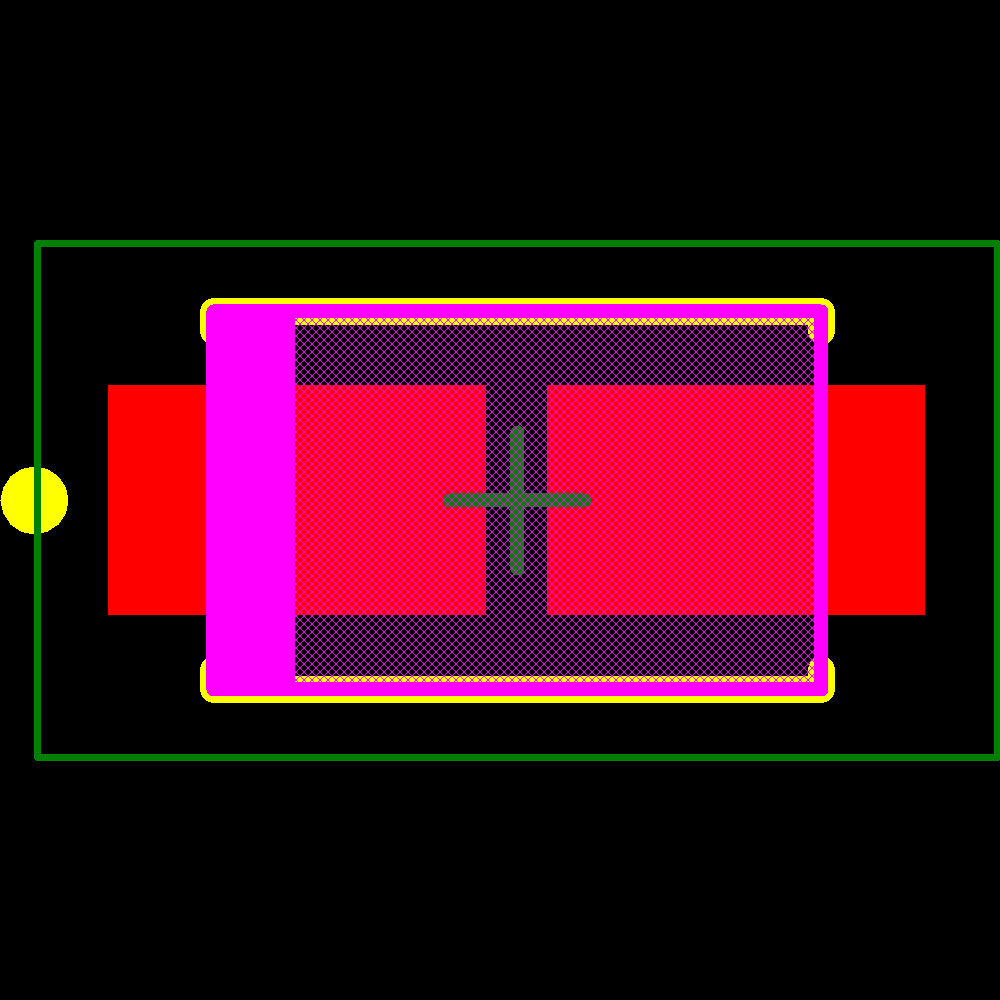

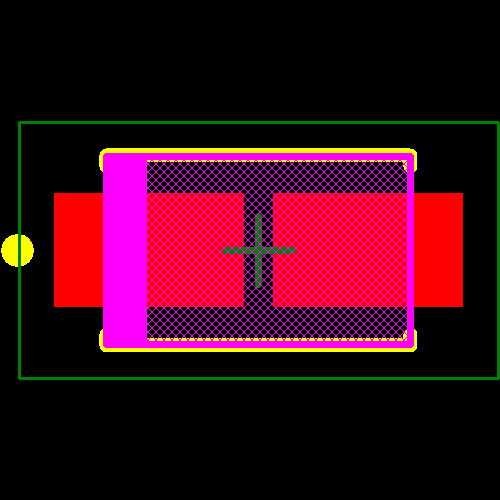

Footprint
