Vishay - SMAJ13A-E3/61

SMAJ13A-E3/61 - Vishay

SMAJXXA Series 400 W 13 V Surface Mount Uni-Directional TVS Diode - DO-214AA

 Datasheets

Technical Details

Breakdown Voltage 15.15V
Case/Package SMA
China RoHS Non-Compliant
Clamping Voltage 21.5V
Contact Plating Tin
Country of Origin Mainland China
Direction Unidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Forward Voltage 3.5V
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 2001-01-01
Lead Free Lead Free
Leakage Current 1µA
Lifecycle Status Production
Max Breakdown Voltage 15.9V
Max Forward Surge Current (Ifsm) 40A
Max Operating Temperature 150°C
Max Power Dissipation 3.3W
Max Reverse Leakage Current 1µA
Max Surge Current 18.6A
Min Breakdown Voltage 14.4V
Min Operating Temperature -55°C
Number of Channels 1
Number of Elements 1
Number of Pins 2
Number of Terminals 2
Operating Supply Voltage 13V
Packaging Tape and Reel
Peak Pulse Current 18.6A
Peak Pulse Power 400W
Peak Reverse Current 1µA
Polarity Unidirectional
Power Dissipation 400W
Radiation Hardening No
REACH SVHC No
Reverse Breakdown Voltage 14.4V
Reverse Standoff Voltage 13V
RoHS Compliant
Schedule B 8541100080
Termination SMD/SMT
Test Current 1mA

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Vishay SMAJ13A-E3/61 | Future Electronics

Future Electronics

Datasheets

 Farnell
 Farnell
 Future Electronics

Lifecycle Status Indicator

   Production

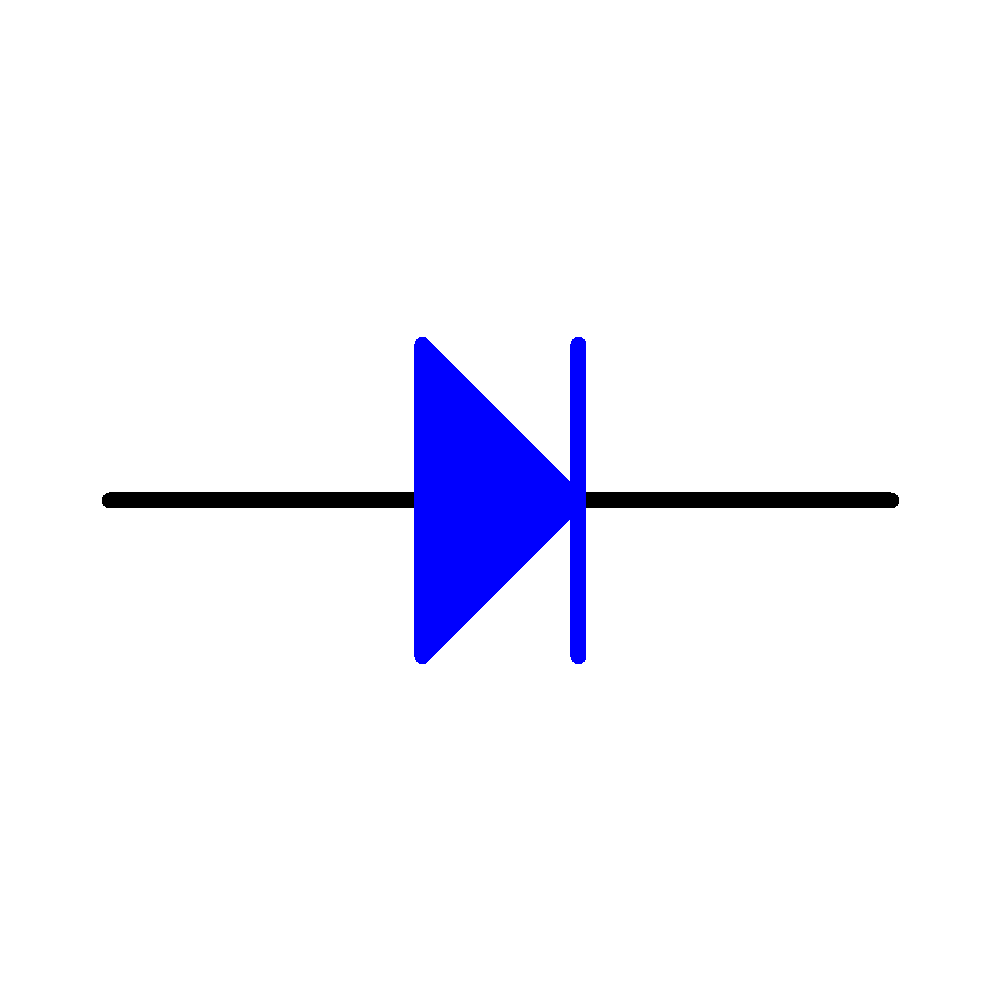

Symbol

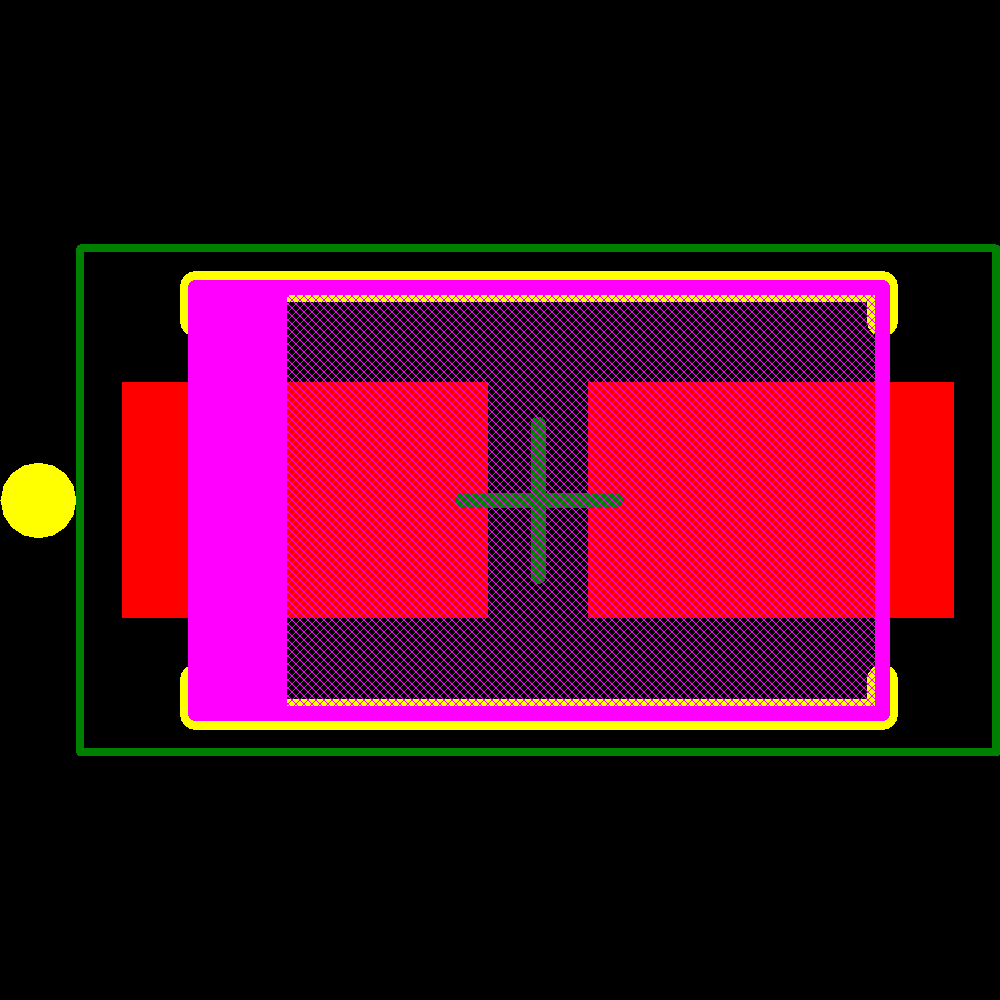

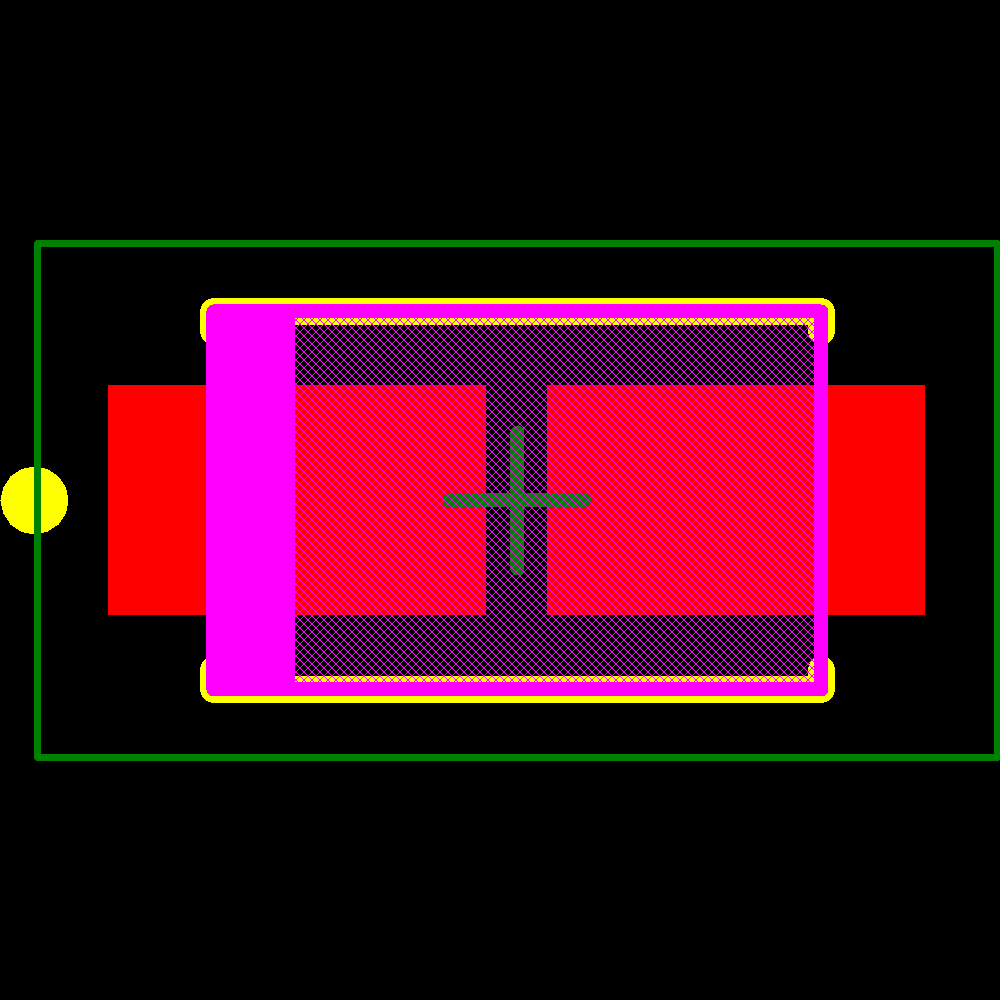

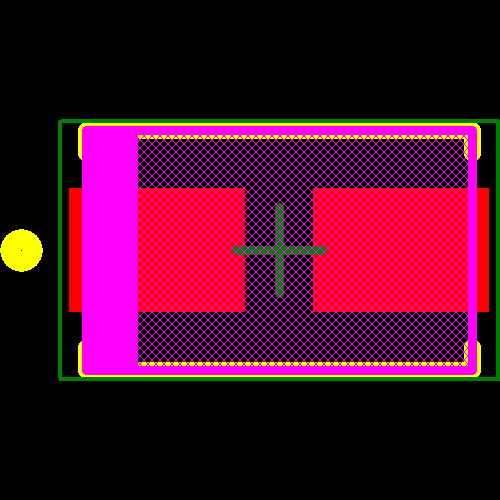

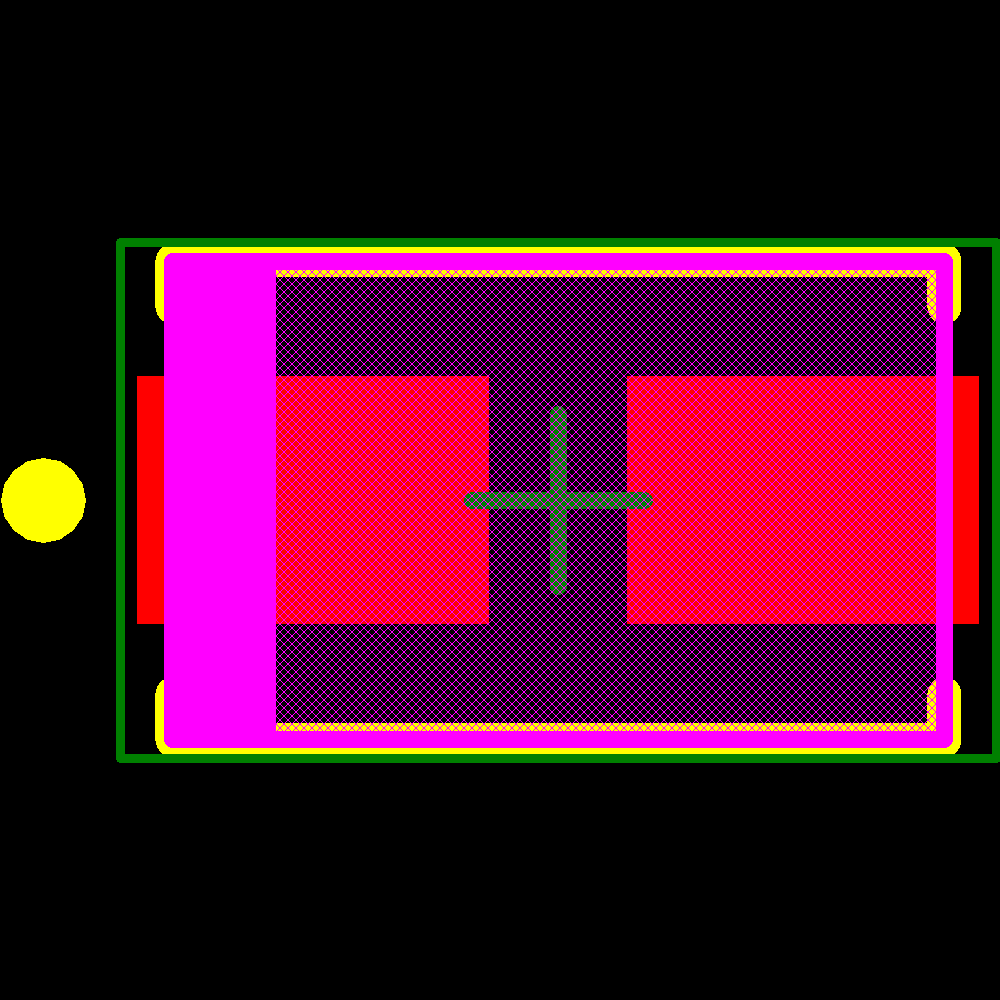

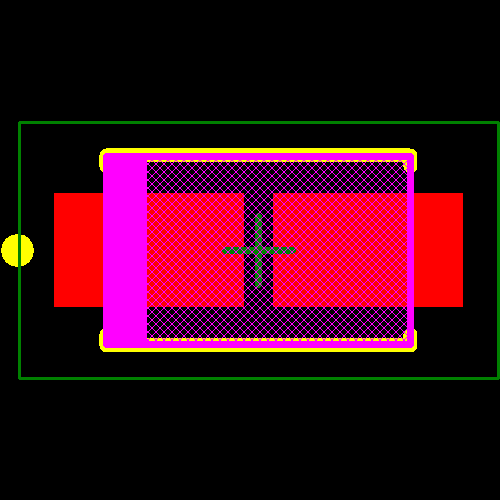

Footprint
