SMAJ13AHE3/61 - Vishay
Trans Voltage Suppressor Diode, 400W, 13V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC
Technical Details
| Breakdown Voltage | 15.15V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 21.5V |
| Composition | Zener |
| Direction | Unidirectional |
| Element Configuration | Single |
| Leakage Current | 1µA |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 15.9V |
| Max Forward Surge Current (Ifsm) | 40A |
| Max Operating Temperature | 150°C |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 18.6A |
| Min Breakdown Voltage | 14.4V |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 13V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 18.6A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 14.4V |
| Reverse Standoff Voltage | 13V |
| RoHS | Compliant |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

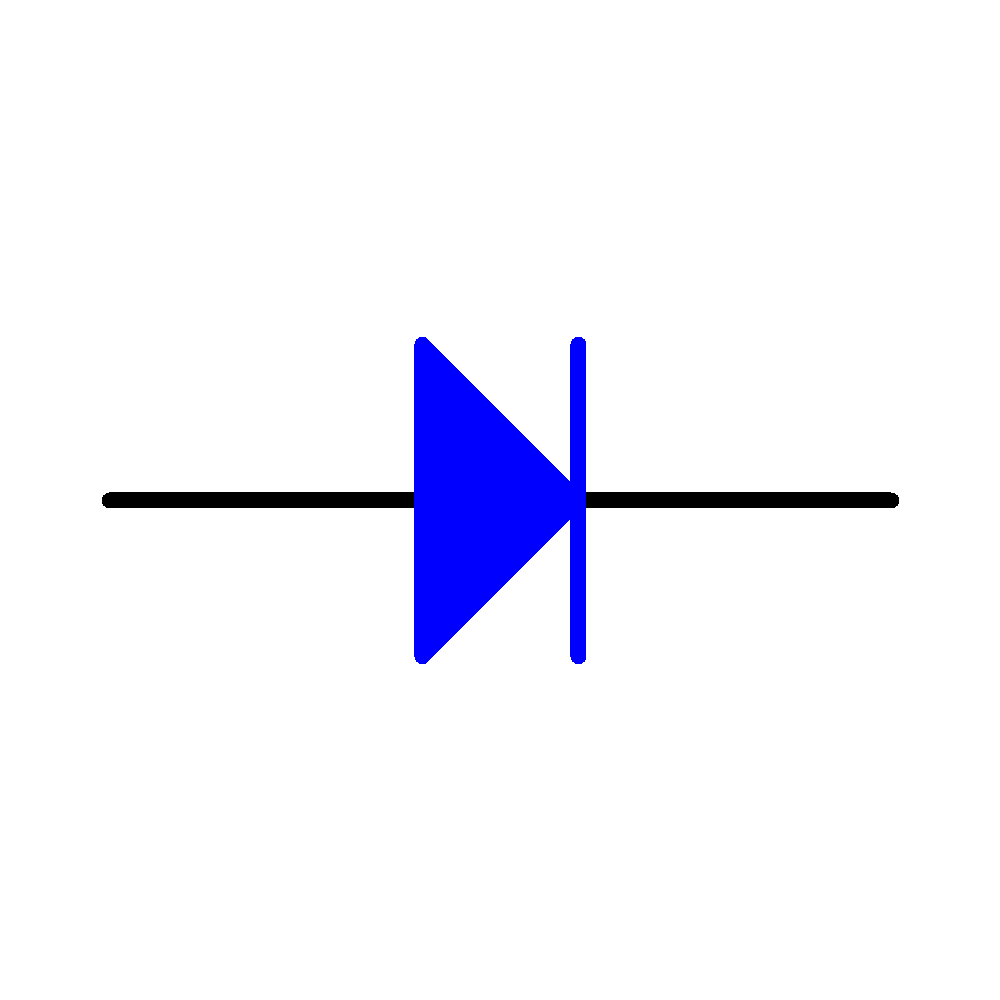

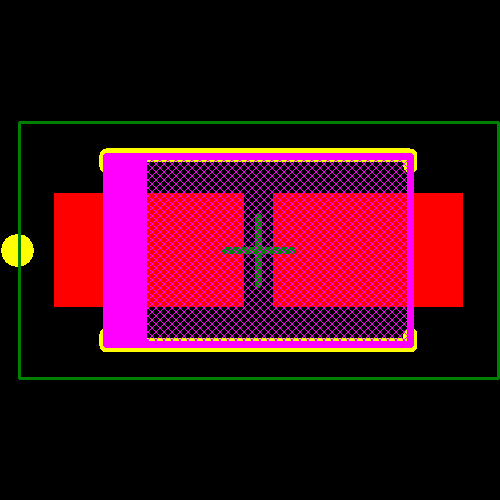

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| EIC Semiconductor | Production | ||
| onsemi | Obsolete | ||
| Littelfuse | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Production | ||
| Lite-On | Obsolete | ||
| Vishay | Production |
